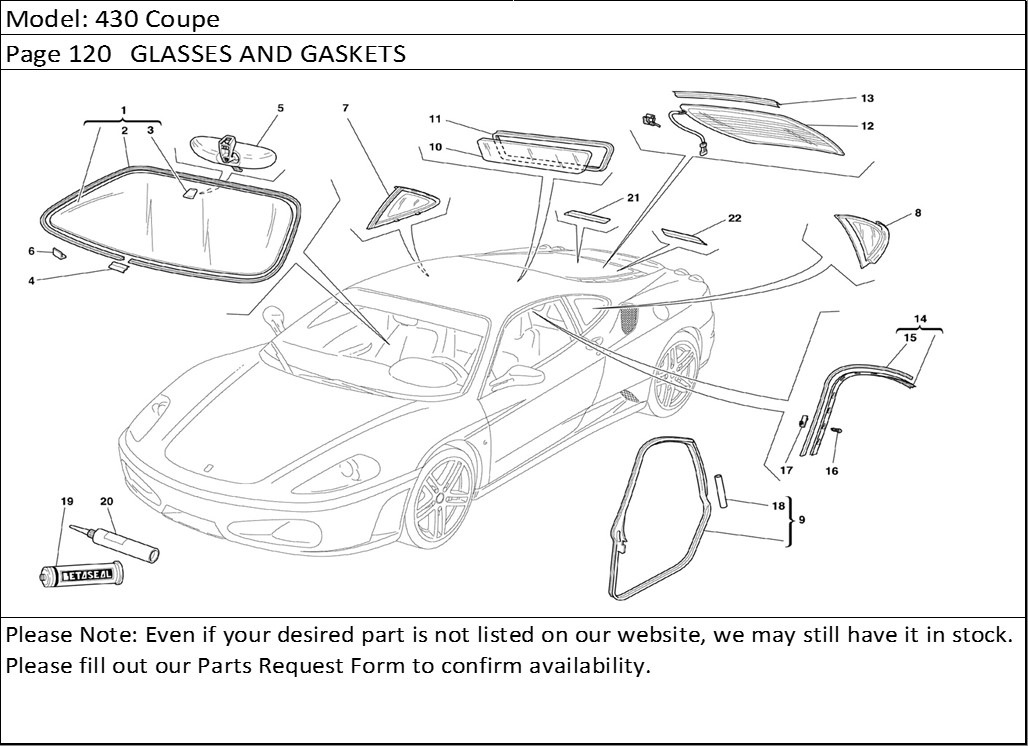

430 Coupe Page 120 GLASSES AND GASKETS
Product Description
430 Coupe Page 120 GLASSES AND GASKETS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 63353800 | COMPLETE WINDSCREEN GLASS | 1 |
| 2 | 65305700 | OUTER GASKET | 1 |
| 3 | 65695500 | BAR | 1 |
| 4 | 65625100 | JOINT COVERING | 1 |
| 5 | 65547300 | INNER REAR VIEW MIRROR | 1 |
| 6 | 65808700 | CMPLETE SPACER | 6 |
| 7 | 64018900 | R.H. REAR SIDE GLASS -With gaskets- | 1 |
| 8 | 64019000 | L.H. REAR SIDE GLASS -With gaskets- | 1 |
| 9 | 66396400 | COMPLETE L.H. GASKET | 1 |
| 9 | 66396300 | COMPLETE R.H. GASKET | 1 |
| 10 | 65833800 | REAR-WINDOW GLASS -Valid till stock exhaustion- | 1 |
| 10 | 69734700 | REAR-WINDOW GLASS -Valid after stock exhaustion of 65833800- | 1 |
| 11 | 63354600 | REAR WINDOW GASKET | 1 |
| 12 | 68074900 | GLASS FOR REAR HOOD | 1 |
| 13 | 68547700 | UPPER GASKET | 1 |
| 14 | 65525300 | COMPLETE L.H. MOULDING | 1 |
| 14 | 65525200 | COMPLETE R.H. MOULDING | 1 |
| 15 | 65164600 | GASKET | 2 |
| 16 | 16083501 | SCREW | 26 |
| 17 | 64569500 | FIXING CLIP | 26 |
| 18 | 66390200 | STUFFER FOR DOOR GASKET | 2 |
| 19 | 65732700 | NDSHIELD ADHESIVE | 1 |
| 20 | 66091400 | SEALING | 1 |
| 21 | 68854700 | R.H. REAR GRID REFLECTION DEFLECTOR | 1 |
| 22 | 68854800 | L.H. REAR GRID REFLECTION DEFLECTOR | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
