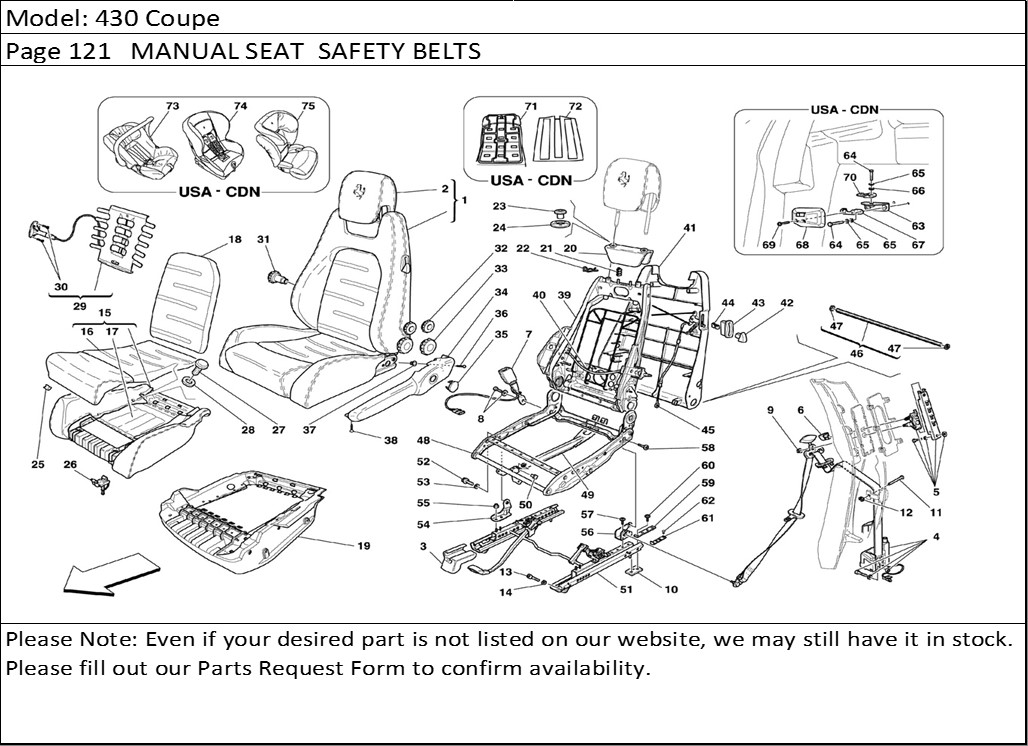

430 Coupe Page 121 MANUAL SEAT SAFETY BELTS
Product Description
430 Coupe Page 121 MANUAL SEAT SAFETY BELTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 690838 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for GD- | 1 |
| 1 | 691511 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for USA and CDN- | 1 |
| 1 | 690847 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Not for USA,CDN and GD- | 1 |
| 1 | 689915 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -With lining + Daytona- -Valid for GD- | 1 |
| 1 | 690406 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -With lining + Daytona- -Not for GD- | 1 |
| 1 | 690836 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for GD- | 1 |
| 1 | 699753 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for USA MY 06 07- | 1 |
| 1 | 691509 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for USA and CDN- | 1 |
| 1 | 690845 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Not for USA,CDN and GD- | 1 |
| 1 | 690404 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -With lining- -Not for GD- | 1 |
| 1 | 690837 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for GD- | 1 |
| 1 | 699755 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for USA MY 06 07- | 1 |
| 1 | 801867 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 1 | 801872 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 1 | 689913 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -With lining- -Valid for GD- | 1 |
| 1 | 691510 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for USA and CDN- | 1 |
| 1 | 690826 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for GD- | 1 |
| 1 | 689903 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -With lining + Daytona- -Valid for GD- | 1 |
| 1 | 681324 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -With lining + Daytona- -Not for GD- | 1 |
| 1 | 695782 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for USA MY 06 07- | 1 |
| 1 | 691951 | SEAT BACK LINING -Optional- -With lining- | 2 |
| 1 | 691949 | SEAT BACK LINING | 2 |
| 1 | 801874 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 1 | 801873 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid from Ass. | 1 |
| 1 | 699754 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for USA MY 06 07- | 1 |
| 1 | 690846 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Not for USA,CDN and GD- | 1 |
| 1 | 689914 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -Daytona- -Valid for GD- | 1 |
| 1 | 681320 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -With lining- -Not for GD- | 1 |
| 1 | 690830 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for GD- | 1 |
| 1 | 695783 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for USA MY 06 07- | 1 |
| 1 | 690851 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Not for USA MY 06 07 and GD- | 1 |
| 1 | 689907 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -Daytona- -Not for GD- | 1 |
| 1 | 681321 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -Daytona- -Not for GD- | 1 |
| 1 | 690828 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Standard- -Valid for GD- | 1 |
| 1 | 695780 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Standard- -Valid for USA MY 06 07- | 1 |
| 1 | 690848 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Standard- -Not for USA MY 06 07 and GD- | 1 |
| 1 | 689905 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Standard- -Valid for GD- | 1 |
| 1 | 677813 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Standard- -Not for GD- | 1 |
| 1 | 689906 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -With lining- -Valid for GD- | 1 |
| 1 | 690850 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining- -Not for USA MY 06 07 and GD- | 1 |
| 1 | 690405 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -Daytona- -Not for GD- | 1 |
| 1 | 690835 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Standard- -Valid for GD- | 1 |
| 1 | 699748 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Standard- -Valid for USA MY 06 07- | 1 |
| 1 | 691504 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Standard- -Valid for USA and CDN- | 1 |
| 1 | 690839 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Standard- -Not for USA, CDN and GD- | 1 |
| 1 | 689912 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Standard- -Valid for GD- | 1 |
| 1 | 689998 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Standard- -Not for GD- | 1 |
| 1 | 677812 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Standard- -Not as spare part- -Replaced by 689998..- -Not for GD- | 1 |
| 1 | 695786 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for USA MY 06 07- | 1 |
| 1 | 690854 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Not for USA MY 06 07 and GD- | 1 |
| 1 | 690829 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for GD- | 1 |
| 2 | 694260 | COMPLETE HEAD-REST -With cloth hook- -Optional- -With lining- | 2 |
| 2 | 691948 | COMPLETE HEAD-REST -Without cloth hook- -Optional- -With lining- | 2 |
| 2 | 694259 | COMPLETE HEAD-REST -With cloth hook- -Standard- | 2 |
| 2 | 691947 | COMPLETE HEAD-REST -Without cloth hook- -Standard- | 2 |
| 3 | 65922100 | L.H. GUIDE SHIELD | 2 |
| 3 | 65922000 | R.H. GUIDE SHIELD | 2 |
| 4 | 68867300 | COMPLETE R.H. SAFETY BELTS -Valid for USA and CDN- | 1 |
| 4 | 68146700 | COMPLETE R.H. SAFETY BELTS -Not for USA and CDN- | 1 |
| 4 | 68867400 | COMPLETE L.H. SAFETY BELTS -Valid for USA and CDN- | 1 |
| 4 | 68146800 | COMPLETE L.H. SAFETY BELTS -Not for USA and CDN- | 1 |
| 5 | 65408600 | SAFETY BELTS HEIGHT REGULATOR -Not as spare part now- -Replaced by 66873400- | 2 |
| 5 | 66873400 | SAFETY BELTS HEIGHT REGULATOR | 2 |
| 6 | 65408800 | KNOB | 2 |
| 7 | 65924600 | PILOT SIDE BUCKLE BRANCH | 1 |
| 7 | 65629100 | PASSENGER SIDE BUCKLE BRANCH | 1 |
| 8 | 65911400 | SCREW | 2 |
| 9 | 65408700 | NUT | 2 |
| 10 | 166168 | REAR SMALL PLATE | 4 |
| 11 | 64858500 | PIN FOR BRACKET | 2 |
| 12 | 11087776 | FLEXIBLE RING | 2 |
| 13 | 65917500 | SCREW | 4 |
| 14 | 65917600 | WASHER | 4 |
| 15 | 809377 | R.H. COMPLETE CUSHION -Optional- -With lining + Daytona- -Valid from Ass. Nr. 69895 for USA and CDN - -With CPOD- | 1 |
| 15 | 695726 | R.H. LATERAL CUSHION LINING -Passenger side- -Standard- | 1 |
| 15 | 695728 | R.H. LATERAL CUSHION LINING -Passenger side- -Optional- -With lining- | 1 |
| 15 | 691961 | L.H. LATERAL CUSHION LINING -Passenger side- -Standard- | 1 |
| 15 | 691963 | L.H. LATERAL CUSHION LINING -Passenger side- -Optional- -With lining- | 1 |
| 15 | 691965 | R.H. LATERAL CUSHION LINING -Pilot side- -Standard- | 1 |
| 15 | 691967 | R.H. LATERAL CUSHION LINING -Pilot side- -Optional- -With lining- | 1 |
| 15 | 695720 | L.H. LATERAL CUSHION LINING -Pilot side- -Standard- | 1 |
| 15 | 695723 | L.H. LATERAL CUSHION LINING -Pilot side- -Optional- -With lining- | 1 |
| 15 | 809376 | R.H. COMPLETE CUSHION -Optional- -With lining- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 15 | 809373 | R.H. COMPLETE CUSHION -Optional- -Daytona- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 15 | 691953 | L.H. COMPLETE CUSHION -Standard- | 1 |
| 15 | 694686 | R.H. COMPLETE CUSHION -Standard- | 1 |
| 15 | 691954 | L.H. COMPLETE CUSHION -Optional- -Daytona- | 1 |
| 15 | 695715 | R.H. COMPLETE CUSHION -Optional- -Daytona- | 1 |
| 15 | 691955 | L.H. COMPLETE CUSHION -Optional- -With lining- | 1 |
| 15 | 695716 | R.H. COMPLETE CUSHION -Optional- -With lining- | 1 |
| 15 | 691956 | L.H. COMPLETE CUSHION -Optional- -With lining + Daytona- | 1 |
| 15 | 695717 | R.H. COMPLETE CUSHION -Optional- -With lining + Daytona- | 1 |
| 15 | 809371 | R.H. COMPLETE CUSHION -Standard- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 16 | 809370 | CENTRAL CUSHION -Optional- -Daytona- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 2 |
| 16 | 809369 | CENTRAL CUSHION -Standard- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 2 |
| 16 | 691978 | CENTRAL CUSHION -Optional- -Daytona- | 2 |
| 16 | 691977 | CENTRAL CUSHION -Standard- | 2 |
| 17 | 69198100 | CUSHION BOTTOM MEMBRANE | 2 |
| 18 | 691980 | CENTRAL SEAT BACK -Daytona- -Optional- | 2 |
| 18 | 695718 | CENTRAL SEAT BACK -With lumbar adjusting- -Standard- | 1 |
| 18 | 691979 | CENTRAL SEAT BACK -With lumbar adjusting- -Standard- | 1 |
| 19 | 69198300 | CUSHION END PLATE WITH BRACKET -For USA only for R.H. Seat- | 2 |
| 19 | 69661500 | L.H. CUSHION END PLATE WITH BRACKET -Valid for USA- | 1 |
| 20 | 691982 | COMPLETE SADDLE | 2 |
| 21 | 66324700 | CLIP | 4 |
| 22 | 66324600 | R.H. CLIP | 2 |
| 22 | 66370200 | L.H. CLIP | 2 |
| 23 | 64025400 | BUSHING | 4 |
| 24 | 64025500 | WASHER | 4 |
| 25 | 67283300 | CLIP | 4 |
| 26 | 66324000 | CUSHION FIXING CLIP | 4 |
| 27 | 67282500 | CLIP | 16 |
| 28 | 67282600 | WASHER | 16 |
| 29 | 66370300 | L.H. MANUAL LOMBAR SYSTEM -Not for Standard and Cadenino Seats RHD- | 1 |
| 29 | 66329800 | R.H. MANUAL LOMBAR SYSTEM -Not for Standard and Cadenino Seats LHD- | 1 |
| 30 | 66329900 | SCREW -For Daytona seats Q.ty 4- | 2 |
| 31 | 66325600 | SIDE ADJUSTING KNOB | 2 |
| 32 | 66325500 | LUMBAR ADJUSTING KNOB -For Daytona seats Q.ty 2- | 1 |
| 33 | 66325300 | SEAT BACK ADJUSTING KNOB | 2 |
| 34 | 663251 | L.H. OUTER COVER SEAT | 1 |
| 34 | 663250 | R.H. OUTER COVER SEAT | 1 |
| 35 | 663249 | COMPLETE PLUG | 2 |
| 36 | 66370500 | SCREW | 2 |
| 37 | 66325200 | NUT SCREW | 2 |
| 38 | 66370600 | SCREW | 2 |
| 39 | 69198400 | SEAT BACK STRUCTURE | 2 |
| 40 | 66326100 | BOWDEN CABLE SHEATH | 2 |
| 40 | 66326000 | SEAT BACK SIDE BOWDEN CABLE | 2 |
| 41 | 66324100 | SEAT BACK COVERING | 2 |
| 42 | 66324500 | SEAT RELEASE LEVER | 4 |
| 43 | 66324400 | PLATE | 4 |
| 44 | 66324300 | CLIP | 4 |
| 45 | 66324200 | SEAT RELEASE CABLE | 4 |
| 46 | 66326300 | COMPLETE UNION BAR | 2 |
| 47 | 66328700 | FIXING RING | 4 |
| 48 | 69198800 | R.H. CUSHION STRUCTURE | 1 |
| 48 | 69198900 | L.H. CUSHION STRUCTURE | 1 |
| 49 | 69198600 | SAFETY TIE ROD | 1 |
| 50 | 69198700 | PIN | 1 |
| 51 | 66323900 | COMPLETE L.H. SEAT GUIDE | 1 |
| 51 | 66323800 | COMPLETE R.H. SEAT GUIDE | 1 |
| 52 | 66327500 | COMPLETE SCREW | 8 |
| 53 | 66327600 | FRONT FIXING BUSHING | 4 |
| 53 | 66327700 | REAR FIXING BUSHING | 4 |
| 54 | 66323100 | R.H. FRONT ADAPTER | 1 |
| 54 | 66323200 | L.H. FRONT ADAPTER | 1 |
| 55 | 66372900 | NUT | 8 |
| 56 | 66323400 | L.H. BRACKET | 1 |
| 56 | 66323300 | R.H. BRACKET | 1 |
| 57 | 66327100 | SCREW | 8 |
| 58 | 66327900 | SCREW | 8 |
| 59 | 66323500 | UPPER PLATE | 4 |
| 60 | 66327100 | SCREW | 4 |
| 61 | 66323600 | LOWER PLATE | 4 |
| 62 | 66323700 | CLIP | 4 |
| 63 | 66150500 | BRACKET -Valid for USA and CDN- | 1 |
| 64 | 16043934 | SCREW -Valid for USA and CDN- | 3 |
| 65 | 14496524 | WASHER -Valid for USA and CDN- | 3 |
| 66 | 12601374 | WASHER -Valid for USA and CDN- | 3 |
| 67 | 66157300 | COVER FIXING BRACKET -Valid for USA and CDN- | 1 |
| 68 | 66153800 | COVER -Valid for USA and CDN- | 1 |
| 69 | 168133 | SCREW -Valid for USA and CDN- | 2 |
| 70 | 66154400 | BRACKET FOR BELT COUPLER -Valid for USA and CDN- | 1 |
| 71 | 80936700 | CPOD SENSOR -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 72 | 80936800 | CPOD SENSOR PROTECTION -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 73 | 80358300 | CHILDREN SEAT -Baby safe- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 74 | 80358400 | CHILDREN SEAT -Duo plus- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 75 | 80358500 | CHILDREN SEAT -Kid plus- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 76 | 694325 | R.H. LARGE RACING SEAT LEATHER/TISSUE -Bordeaux Alcantara- -Valid for USA and CDN- -Without cloth hook- | 1 |
| 76 | 694326 | R.H. LARGE RACING SEAT LEATHER/TISSUE -Blue Alcantara- -Valid for USA and CDN- -Without cloth hook- | 1 |
| 76 | 694327 | R.H. LARGE RACING SEAT LEATHER/TISSUE -Yellow Alcantara- -Valid for USA and CDN- -Withaut cloth hoot- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
