430 Coupe Page 125 TUNNEL FRAMEWORK AND ACCESSORIES
Product Description
430 Coupe Page 125 TUNNEL FRAMEWORK AND ACCESSORIES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

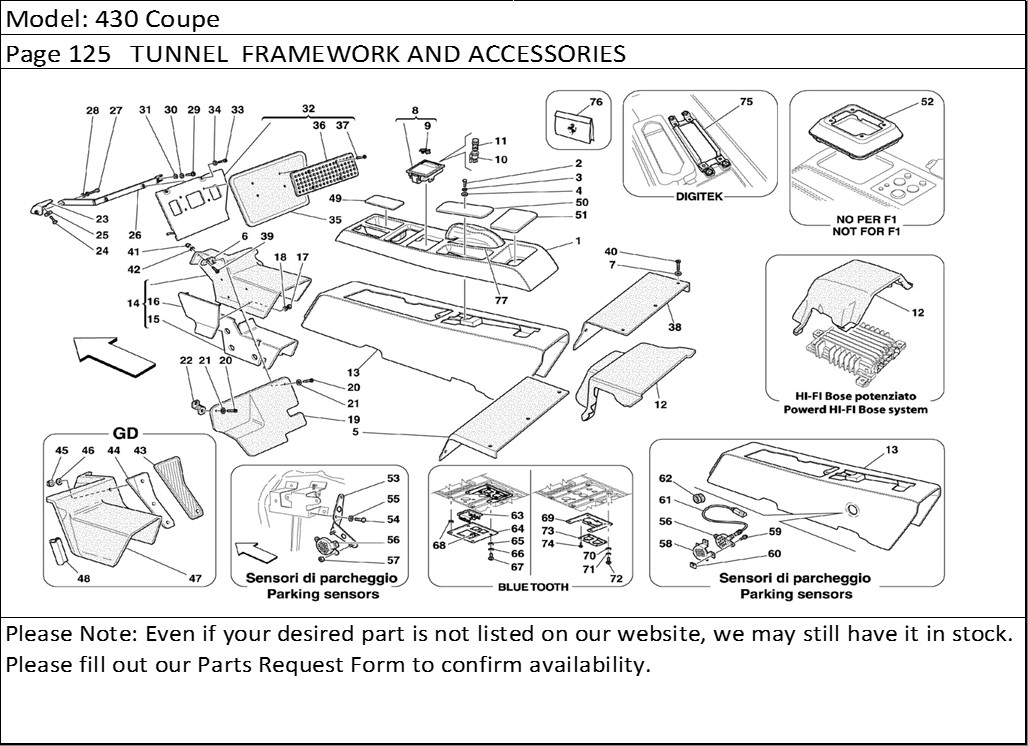

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 680947 | CENTRAL TUNNEL COVER -Not for F1 - -Standard- | 1 |
| 1 | 68663700 | CENTRAL TUNNEL COVER -Valid for F1- -Optional- -Carbon- -Bluetooth- -Valid for GD- -Valid till car Nr.146597- | 1 |
| 1 | 80084900 | CENTRAL TUNNEL COVER -Valid for F1- -Optional- -Carbon- -Valid for GD- -Valid from Ass. Nr. | 1 |
| 1 | 68664100 | CENTRAL TUNNEL COVER -Valid for F1- -Optional- -Carbon- -Valid for GD- -Valid till Ass. Nr. 66453 (car Nr. 149224)- -Valid for Jaeger F1 dashboard- -Valid till stock exhaustion- | 1 |
| 1 | 684597 | CENTRAL TUNNEL COVER -Valid for F1 - -Standard- -Valid for GD- | 1 |
| 1 | 68663600 | CENTRAL TUNNEL COVER -Valid for F1 - -Optional- -Carbon- -Bluetooth- -Not for GD- -Valid till car Nr.146597- | 1 |
| 1 | 80084800 | CENTRAL TUNNEL COVER -Valid for F1 - -Optional- -Carbon- -Not for GD- -Valid from Ass. Nr. 66454 (car Nr. 149225)- -Valid for Digitek F1 dashboard- | 1 |
| 1 | 68664000 | CENTRAL TUNNEL COVER -Valid for F1 - -Optional- -Carbon- -Not for GD- -Valid till Ass. Nr. 66453 (car Nr. 149224)- -Valid for Jaeger F1 dashboard- -Valid till stock exhaustion- | 1 |
| 1 | 684237 | CENTRAL TUNNEL COVER -Valid for F1 - -Standard- -Not for GD- | 1 |
| 1 | 68663400 | CENTRAL TUNNEL COVER -Not for F1- -Optional- -Carbon- -Bluetooth- -Valid till car Nr. 146597- | 1 |
| 1 | 68663800 | CENTRAL TUNNEL COVER -Not for F1 - -Optional- -Carbon- | 1 |
| 2 | 16043424 | SCREW | 1 |
| 3 | 127496 | WASHER | 1 |
| 4 | 13550301 | WASHER | 1 |
| 5 | 805050 | L.H. COVER FOR CONTROL UNIT -Optional- -Suitcase set for the rear shelf- -Valid for Roll-Bar car- | 1 |
| 5 | 804296 | L.H. COVER FOR CONTROL UNIT -Optional- -Suitcase set for the rear shelf- -No for Roll-Bar cars- | 1 |
| 5 | 681438 | L.H. COVER FOR CONTROL UNIT -Optional- -Valid for Roll-Bar cars- | 1 |
| 5 | 679592 | L.H. COVER FOR CONTROL UNIT -Standard- -Not for Roll-Bar cars- | 1 |
| 6 | 65709200 | BRACKET | 1 |
| 7 | 12611407 | WASHER | 10 |
| 8 | 67505800 | COMPLETE ASH TRAY | 1 |
| 9 | 64460400 | FERRARI-PININFARINA MARK | 1 |
| 10 | 226941 | CIGAR LIGHTER BODY | 1 |
| 10 | 226941 | CIGAR LIGHTER BODY -Not as spare part- -Replaced by 226941- | 1 |
| 10 | 226941 | CIGAR LIGHTER BODY -Not as spare part now- -Replaced by 68913000- | 1 |
| 11 | 226942 | CIGAR LIGHTER -Not as spare part- -Replaced by 226942- | 1 |
| 11 | 226942 | CIGAR LIGHTER | 1 |
| 12 | 680985 | REAR SIDE TUNNEL COVER | 1 |
| 12 | 686036 | REAR SIDE TUNNEL COVER -Valid for amplifier version- -Optional- | 1 |
| 12 | 804087 | REAR SIDE TUNNEL COVER -Valid for powered HI FI Bose system- | 1 |
| 13 | 695975 | LOWER CONSOLE -Parking sensors- -Optional- | 1 |
| 13 | 683964 | LOWER CONSOLE | 1 |
| 14 | 683789 | FRONT SIDE TUNNEL COVER -Valid for GD- -Standard- | 1 |
| 14 | 804876 | FRONT SIDE TUNNEL COVER -Valid for GD- -OPT valid for powered HI FI Bose system- | 1 |
| 14 | 693005 | FRONT SIDE TUNNEL COVER -Valid for GD- -OPT radio amplifier- | 1 |
| 14 | 679635 | FRONT SIDE TUNNEL COVER -Not for GD- -Standard- | 1 |
| 14 | 804818 | FRONT SIDE TUNNEL COVER -Not for GD- -OPT valid for powered HI FI Bose system- | 1 |
| 14 | 688889 | FRONT SIDE TUNNEL COVER -Not for GD- -OPT radio amplifier- | 1 |
| 14 | 686783 | FRONT SIDE TUNNEL COVER -Not for GD- | 1 |
| 15 | 65390900 | FRONT INSULATION TUNNEL -Not for GD- | 1 |
| 16 | 65305300 | ACCELERATOR PEDAL PROTECTION -Not for GD- | 1 |
| 17 | 14051811 | NUT-Not for GD- | 4 |
| 17 | 14051811 | 0 | 4 |
| 18 | 12642801 | 0 | 4 |
| 18 | 12642801 | WASHER-Not for GD- | 4 |
| 19 | 690595 | UNDER PEDAL COVER -Valid for GD- | 1 |
| 19 | 682607 | UNDER PEDAL COVER -Not for GD- | 1 |
| 20 | 13311077 | SCREW | 2 |
| 21 | 12611107 | WASHER | 2 |
| 22 | 65709300 | L.H. UPPER BRACKET | 1 |
| 23 | 65523500 | BRACKET-Not for GD- | 1 |
| 23 | 65538800 | BRACKET -Valid for GD- | 1 |
| 24 | 10902324 | SCREW | 1 |
| 25 | 12640624 | WASHER | 1 |
| 26 | 65538700 | SUPPORT PIPE -Valid for GD- | 1 |
| 26 | 65522900 | SUPPORT PIPE -Not for GD- | 1 |
| 27 | 10902324 | SCREW | 1 |
| 28 | 12640624 | WASHER | 1 |
| 29 | 10902324 | SCREW | 1 |
| 30 | 12601274 | WASHER | 1 |
| 31 | 12644424 | WASHER | 1 |
| 32 | 685361 | COMPLETE FOOT-REST FOR PASSENGER -Valid for GD- | 1 |
| 32 | 673673 | COMPLETE FOOT-REST FOR PASSENGER -Not for GD- | 1 |
| 33 | 13276211 | SCREW | 2 |
| 34 | 12601274 | WASHER | 2 |
| 35 | 68513300 | CARPET -Not for GD- | 1 |
| 35 | 65538100 | CARPET -Valid for GD- | 1 |
| 36 | 66122200 | COVER | 1 |
| 37 | 65847800 | SCREW | 4 |
| 38 | 805049 | R.H. COVER FOR CONTROL UNIT -Optional- -Suitcase set for the rear shelf- -Valid for Roll-Bar car- | 1 |
| 38 | 804295 | R.H. COVER FOR CONTROL UNIT -Optional- -Suitcase set for the rear shelf- -Not for Roll-Bar cars- | 1 |
| 38 | 681436 | R.H. COVER FOR CONTROL UNIT -Optional- -Valid for Roll-Bar cars- | 1 |
| 38 | 679589 | R.H. COVER FOR CONTROL UNIT -Standard- -Not for Roll-Bar cars- | 1 |
| 39 | 13274177 | SCREW | 1 |
| 40 | 69193000 | SCREW-M6x 14- | 2 |
| 40 | 68927900 | SCREW -M6 x 25- | 6 |
| 40 | 68928000 | SCREW -M6 x 60- | 2 |
| 41 | 113647 | NUT | 1 |
| 42 | 12637878 | SHER | 1 |
| 43 | 65918000 | SLAB FOR DRIVER SIDE FOOT REST PLATE -Valid for GD- | 1 |
| 44 | 69058900 | FOOT-REST FOR DRIVER -Valid for GD- | 1 |
| 45 | 14059111 | NUT -Valid for GD- | 3 |
| 46 | 14447001 | WASHER -Valid for GD- | 3 |
| 47 | 693005 | TUNNEL COVER FRONT PART -Valid for GD- | 1 |
| 48 | 67681200 | GASKET -Valid for GD- | 1 |
| 49 | 684239 | FRONT COVER -Valid for F1 - | 1 |
| 50 | 680904 | CENTRAL COVER | 1 |
| 51 | 680901 | REAR COVER | 1 |
| 52 | 67895000 | GEARBOX LEVER OUTER BOOT -Not for F1 - | 1 |
| 53 | 69598800 | BUZZER SUPPORT -Not for GD- -Parking sensors- -Optional- | 1 |
| 53 | 69599400 | BUZZER SUPPORT -Valid for GD- -Parking sensors- -Optional- | 1 |
| 54 | 16285211 | SCREW -Parking sensors- -Optional- | 2 |
| 55 | 12644424 | WASHER -Parking sensors- -Optional- | 2 |
| 56 | 223469 | BUZZER -Parking sensors- -Optional- | 2 |
| 57 | 10794011 | NUT -Parking sensors- -Optional- | 2 |
| 58 | 69596700 | PROTECTION NET -Parking sensors- -Optional- | 1 |
| 59 | 13271872 | SCREW -Parking sensors- -Optional- | 4 |
| 60 | 14370571 | BRACKET -Parking sensors- -Optional- | 4 |
| 61 | 223943 | CABLE -Parking sensors- -Optional- -Valid till car Nr.150216 (Ass. Nr. 67547)- | 1 |
| 62 | 10396480 | CABLE GROMMET -Parking sensors- -Optional- -Valid from car Nr.150217 (Ass. Nr. 67548)- | 1 |
| 63 | 67354100 | CLIP | 1 |
| 64 | 68744600 | PLATE | 1 |
| 65 | 13506624 | WASHER | 4 |
| 66 | 12601074 | WASHER | 4 |
| 67 | 14302924 | SCREW | 4 |
| 68 | 12647604 | WASHER | 2 |
| 69 | 69220700 | PLATE -Valid for USA and CDN- | 1 |
| 70 | 13506624 | WASHER -Valid for USA and CDN- | 2 |
| 71 | 12601074 | WASHER -Valid for USA and CDN- | 2 |
| 72 | 14302924 | SCREW -Valid for USA and CDN- | 2 |
| 73 | 69177300 | PLATE -Valid for USA and CDN- | 1 |
| 74 | 13270216 | SCREW -Valid for USA and CDN- | 6 |
| 75 | 69927500 | BRACKET | 1 |
| 76 | 810604 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -Carbon version- -Bluetooth- -Valid for GD- | 1 |
| 76 | 810603 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -Carbon version- -Valid for GD- | 1 |
| 76 | 81060100 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -LEATHER- -Valid for GD- | 1 |
| 76 | 810600 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -Carbon version- -Bluetooth- -Valid for USA, CDN- | 1 |
| 76 | 810599 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1- -Carbon version- -Valid for USA and CDN- | 1 |
| 76 | 81059700 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1 - -LEATHER- -Valid for USA and CDN- | 1 |
| 76 | 810596 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1 - -Carbon version- -Bluetooth- -Not for USA, CDN and GD- | 1 |
| 76 | 810595 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1 - -Carbon version- -Not for USA, CDN and GD- | 1 |
| 76 | 81059300 | TRANSMISSION CONTROL DASHBOARD KIT -Valid for F1 - -LEATHER- -Not for USA, CDN and GD- | 1 |
| 77 | 680892 | BOOT -Leather- -Valid for carbon tunnel cover- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
