430 Coupe Page 130 FRONT AND REAR LIGHTS
Product Description
430 Coupe Page 130 FRONT AND REAR LIGHTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

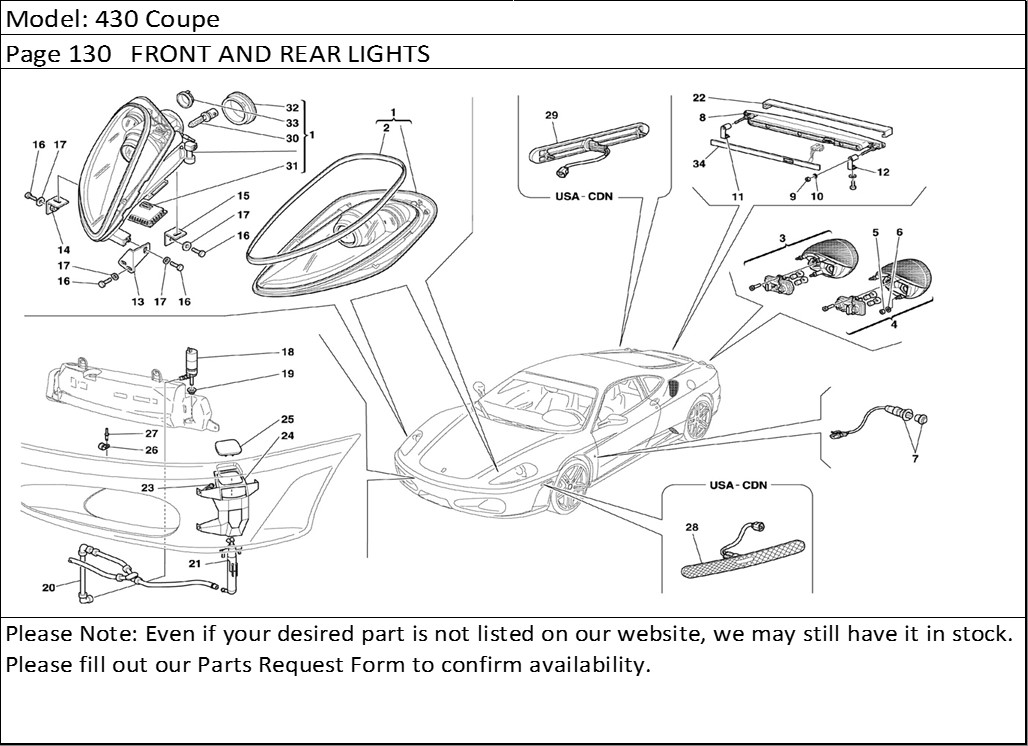

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 214155 | R.H. HEADLIGHT LOW/HIGH BEAM -Black- -Not for USA, CDN, GD and J- | 1 |
| 1 | 207611 | L.H. HEADLIGHT LOW/HIGH BEAM -Grey- -Valid for GD and J- | 1 |
| 1 | 207609 | L.H. HEADLIGHT LOW/HIGH BEAM -Grey- -Valid for USA and CDN- | 1 |
| 1 | 198682 | L.H. HEADLIGHT LOW/HIGH BEAM -Grey- -Not for USA, CDN, GD and J- | 1 |
| 1 | 214159 | L.H. HEADLIGHT LOW/HIGH BEAM -Black- -Valid for GD and J- | 1 |
| 1 | 214192 | L.H. HEADLIGHT LOW/HIGH BEAM -Black- -Valid for USA and CDN- | 1 |
| 1 | 214156 | L.H. HEADLIGHT LOW/HIGH BEAM -Black- -Not for USA, CDN, GD and J- | 1 |
| 1 | 207610 | R.H. HEADLIGHT LOW/HIGH BEAM -Grey- -Valid for GD and J- | 1 |
| 1 | 207608 | R.H. HEADLIGHT LOW/HIGH BEAM -Grey- -Valid for USA and CDN- | 1 |
| 1 | 198681 | R.H. HEADLIGHT LOW/HIGH BEAM -Grey- -Not for USA, CDN, GD and J- | 1 |
| 1 | 214158 | R.H. HEADLIGHT LOW/HIGH BEAM -Black- -Valid for GD and J- | 1 |
| 1 | 214191 | R.H. HEADLIGHT LOW/HIGH BEAM -Black- -Valid for USA and CDN- | 1 |
| 2 | 215757 | R.H. HEADLIGHT GASKET | 1 |
| 2 | 215756 | L.H. HEADLIGHT GASKET | 1 |
| 3 | 193182 | R.H. INNER REAR LIGHT -Valid for USA and CDN- | 1 |
| 3 | 226722 | R.H. INNER REAR LIGHT -Valid for Korea- | 1 |
| 3 | 185668 | R.H. INNER REAR LIGHT -Not for USA and CDN- -Valid for Korea- -Not as spare part for Corea replaced by 226723- | 1 |
| 3 | 193183 | L.H. INNER REAR LIGHT -Valid for USA and CDN- | 1 |
| 3 | 185669 | L.H. INNER REAR LIGHT -Not for USA and CDN- -Valid for Korea- -Not as spare part for Corea replaced by 226723-L.H. INNER REAR LIGHT -Valid for Korea- | 1 |
| 4 | 185671 | L.H. OUTER REAR LIGHT -Not for USA and CDN- -Valid for Korea- | 1 |
| 4 | 193181 | L.H. OUTER REAR LIGHT -Valid for USA and CDN- | 1 |
| 4 | 185670 | R.H. OUTER REAR LIGHT -Not for USA and CDN- -Valid for Korea- | 1 |
| 4 | 193180 | R.H. OUTER REAR LIGHT -Valid for USA and CDN- | 1 |
| 5 | 102741 | NUT | 8 |
| 6 | 10519424 | WASHER | 8 |
| 7 | 165558 | FRONT SIDE DIRECTION LIGHT | 2 |
| 8 | 164834 | ADDITIONAL STOP LIGHT -Not as spare part- -Replaced by 241531- | 1 |
| 8 | 241531 | ADDITIONAL STOP LIGHT -Valid with cable 241776 T.133 P.12- | 1 |
| 9 | 10794014 | NUT | 2 |
| 10 | 10615274 | WASHER | 2 |
| 11 | 68074700 | R.H. BRACKET | 1 |
| 12 | 68832500 | L.H. BRACKET | 1 |
| 13 | 68285100 | R.H. FRONT BRACKET | 1 |
| 13 | 68285200 | L.H. FRONT BRACKET | 1 |
| 14 | 65520000 | FIXING BRACKET | 2 |
| 15 | 68285300 | REAR BRACKET | 2 |
| 16 | 10902424 | SCREW | 14 |
| 17 | 12601274 | WASHER | 14 |
| 18 | 68740000 | HEADLIGHTS WASHER PUMP -For cars with headlights washer- | 1 |
| 19 | 65511700 | GASKET -For cars with headlights washer- | 1 |
| 20 | 68141200 | HEADLIGHTS WASHER PIPE ASSEMBLY -For cars with headlights washer- | 1 |
| 21 | 68544200 | COMPLETE L.H. HEADLIGHTS WASHER BODY -For cars with headlights washer- | 1 |
| 21 | 68544000 | COMPLETE R.H. HEADLIGHTS WASHER BODY -For cars with headlights washer- | 1 |
| 22 | 66120200 | INSULATION -Not as spare part- -Replaced by 69640200- | 1 |
| 22 | 69640200 | INSULATION | 1 |
| 23 | 15783104 | SCREW -For cars with headlights washer- | 6 |
| 24 | 68079100 | R.H. SUPPORT -For cars with headlights washer- | 1 |
| 24 | 68079200 | L.H. SUPPORT -For cars with headlights washer- | 1 |
| 25 | 68189700 | R.H. PLUG -For cars with headlights washer- | 1 |
| 25 | 68189800 | L.H. PLUG -For cars with headlights washer- | 1 |
| 26 | 10441590 | BRACKET -For cars with headlights washer- | 4 |
| 27 | 14296191 | RIVET -For cars with headlights washer- | 4 |
| 28 | 217531 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN- | 2 |
| 29 | 191504 | REAR SIDE-MARKER LIGHT -Valid for USA and CDN- | 2 |
| 30 | 229502 | XENO BULB | 2 |
| 31 | 229503 | XENO HEADLIGHT CONTROL UNIT | 2 |
| 32 | 229504 | REAR RUBBER COVER | 2 |
| 33 | 230666 | LOW BEAM COVER | 2 |
| 34 | 81055800 | INSULATION -Valid till stock exhaustion- | 1 |
| 34 | 81055800 | INSULATION -Valid after stock exhaustion of 69619400- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
