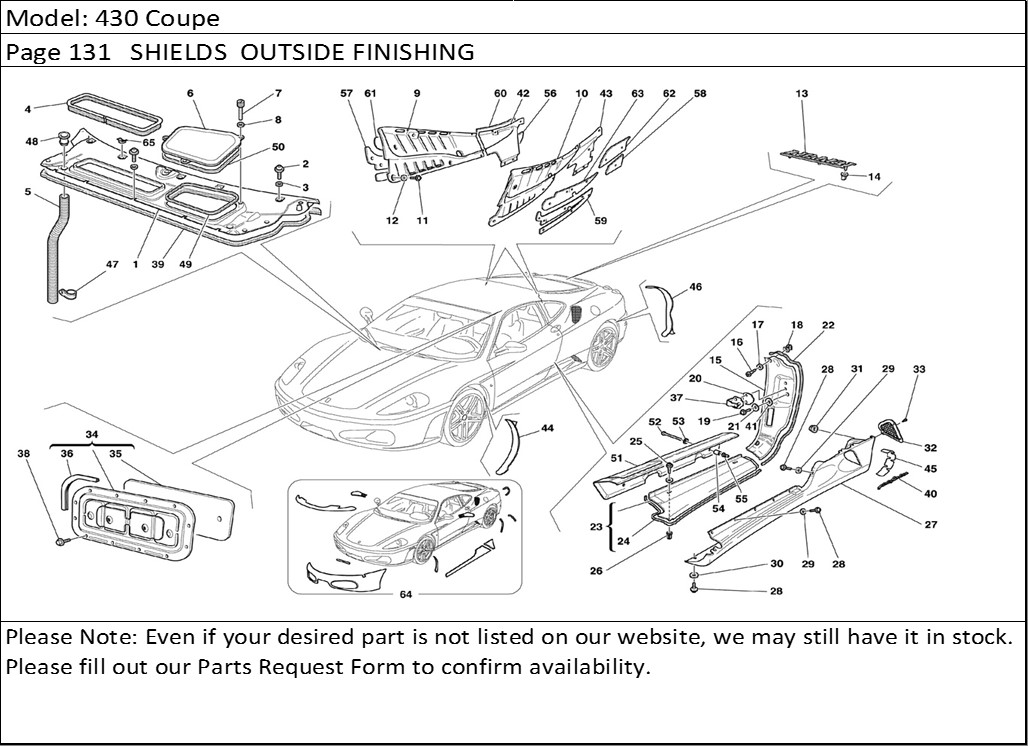

430 Coupe Page 131 SHIELDS OUTSIDE FINISHING
Product Description
430 Coupe Page 131 SHIELDS OUTSIDE FINISHING
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 65544100 | WINDSHIELD PLATE -Not for GD- | 1 |
| 1 | 65875200 | WINDSHIELD PLATE -Valid for GD- | 1 |
| 2 | 65864100 | SCREW | 11 |
| 3 | 12644477 | WASHER | 11 |
| 4 | 65750900 | GASKET -Not as spare part- -Replaced by 69339200- | 1 |
| 4 | 69339200 | GASKET | 1 |
| 5 | 65992600 | TER EXHAUST TUBE | 2 |
| 6 | 65064300 | OIL TANK COMPARTMENT COVER -Not for GD- | 1 |
| 6 | 65875400 | OIL TANK COMPARTMENT COVER -Valid for GD- | 1 |
| 7 | 65750300 | THREADED PIN | 3 |
| 8 | 14496478 | WASHER | 3 |
| 9 | 68445300 | R.H. FRONT PANEL -Carbon panel- -Replaces 68600800- | 1 |
| 9 | 68600800 | R.H. FRONT PANEL -Carbon panel- -Valid till stock exhaustion- | 1 |
| 9 | 68535100 | R.H. FRONT PANEL -SMC panel- -Replaces 68535000- | 1 |
| 9 | 68535100 | R.H. FRONT PANEL -SMC panel- -Valid till stock exhaustion- | 1 |
| 10 | 68535400 | L.H. FRONT PANEL -SMC panel- -Valid till stock exhaustion- | 1 |
| 10 | 68535400 | L.H. FRONT PANEL -SMC panel- -Replaces 68535300- | 1 |
| 10 | 68445400 | L.H. FRONT PANEL -Carbon panel- -Valid till stock exhaustion- | 1 |
| 10 | 68445400 | L.H. FRONT PANEL -Carbon panel- -Replaces 68600900- | 1 |
| 11 | 216431 | SCREW | 16 |
| 12 | 12624178 | WASHER | 16 |
| 13 | 61025000 | FERRARI MARK | 1 |
| 14 | 60324506 | SAFETY CLIP | 2 |
| 15 | 68650811 | R.H. STRIP COVER -Valid for GD- | 1 |
| 15 | 68647711 | R.H. STRIP COVER -Not for GD- | 1 |
| 15 | 68650911 | L.H. STRIP COVER -Valid for GD- | 1 |
| 15 | 68647811 | L.H. STRIP COVER -Not for GD- | 1 |
| 16 | 15689675 | SCREW | 4 |
| 17 | 12637878 | WASHER | 4 |
| 18 | 14201980 | BLOCK | 4 |
| 19 | 62940900 | SCREW | 2 |
| 20 | 67853600 | SPACER | 2 |
| 21 | 12648978 | WASHER | 2 |
| 22 | 64859000 | RUBBER PROFILE | 2 |
| 23 | 68608700 | R.H. KICK PLATE -Carbon kick plate- | 1 |
| 23 | 68146500 | R.H. KICK PLATE | 1 |
| 23 | 68608800 | L.H. KICK PLATE -Carbon kick plate- | 1 |
| 23 | 68146600 | L.H. KICK PLATE | 1 |
| 24 | 65858500 | RUBBER PROFILE | 2 |
| 25 | 15688875 | SCREW | 4 |
| 26 | 14115480 | BLOCK | 4 |
| 27 | 68020910 | R.H. UNDERDOOR COVERING | 1 |
| 27 | 68021110 | L.H. UNDERDOOR COVERING | 1 |
| 28 | 64830600 | SCREW | 30 |
| 29 | 12643778 | WASHER | 12 |
| 30 | 12640677 | WASHER -Not as spare part- -Replaced by 12640678- | 18 |
| 30 | 12640678 | WASHER | 18 |
| 31 | 13046114 | NUT | 10 |
| 32 | 68021600 | L.H. LOWER AIR INTAKE GRILLE | 1 |
| 32 | 68021500 | R.H. LOWER AIR INTAKE GRILLE | 1 |
| 33 | 15783177 | SCREW | 4 |
| 34 | 68675700 | COMPLETE ENGINE INSPECTION PANEL | 1 |
| 35 | 68359400 | INSULATION | 1 |
| 36 | 65387300 | GASKET | 1 |
| 37 | 68308800 | STRIKER -Not as spare part- -Replaced by 68308800- | 2 |
| 37 | 68308800 | STRIKER | 2 |
| 38 | 16297024 | SCREW | 12 |
| 39 | 65841800 | GASKET -Not as spare part- -Replaced by 69647100- | 1 |
| 39 | 69647100 | GASKET | 1 |
| 40 | 64780500 | PININFARINA ORNAMENT | 2 |
| 41 | 63314400 | WASHER | 2 |
| 42 | 69573800 | R.H. REAR PANEL -Carbon panel- -Valid for GD- | 1 |
| 42 | 68615000 | R.H. REAR PANEL -Carbon panel- -Not for GD- | 1 |
| 42 | 68747500 | R.H. REAR PANEL -SMC panel- -Valid for GD- | 1 |
| 42 | 68035300 | R.H. REAR PANEL -SMC panel- -Not for GD- | 1 |
| 43 | 69573900 | L.H. REAR PANEL -Carbon panel- -Valid for GD- | 1 |
| 43 | 68615100 | L.H. REAR PANEL -Carbon panel- -Not for GD- | 1 |
| 43 | 68747600 | L.H. REAR PANEL -SMC panel- -Valid for GD- | 1 |
| 43 | 68035800 | L.H. REAR PANEL -SMC panel- -Not for GD- | 1 |
| 44 | 65971600 | L.H. UPPER ADHESIVE TRACK CLEARER | 1 |
| 44 | 68646300 | L.H. LOWER ADHESIVE TRACK CLEARER | 1 |
| 44 | 65971500 | R.H. UPPER ADHESIVE TRACK CLEARER | 1 |
| 44 | 68646200 | R.H. LOWER ADHESIVE TRACK CLEARER | 1 |
| 45 | 68646800 | R.H. AIR INTAKE ADHESIVE TRACK CLEARER | 1 |
| 45 | 68647000 | L.H. AIR INTAKE ADHESIVE TRACK CLEARER | 1 |
| 46 | 68646600 | L.H. REAR ADHESIVE TRACK CLEARER | 1 |
| 46 | 68646400 | R.H. REAR ADHESIVE TRACK CLEARER | 1 |
| 47 | 10442190 | BRACKET WITH SHEATH | 2 |
| 48 | 65004900 | TER EXHAUST TUBE | 2 |
| 49 | 64879700 | PLATE GASKET | 1 |
| 50 | 64879800 | GASKET | 1 |
| 51 | 681379 | L.H. CROSSMEMBER COVERING -Optional- -Leather version- | 1 |
| 51 | 68986700 | L.H. CROSSMEMBER COVERING -Optional- -Carbon version- | 1 |
| 51 | 681378 | R.H. CROSSMEMBER COVERING -Optional- -Leather version- | 1 |
| 51 | 68986300 | R.H. CROSSMEMBER COVERING -Optional- -Carbon version- | 1 |
| 52 | 65071800 | SCREW -Optional- | 2 |
| 53 | 65916400 | WASHER -Optional- | 2 |
| 54 | 66093900 | SPACER -Optional- | 2 |
| 55 | 66759600 | THREADED INSERT -Optional- | 2 |
| 56 | 69404900 | R.H. LOWER REAR INSULATION | 1 |
| 57 | 69404100 | R.H. LOWER FRONT INSULATION | 1 |
| 58 | 69405000 | L.H. LOWER REAR INSULATION | 1 |
| 59 | 69404200 | L.H. LOWER FRONT INSULATION | 1 |
| 60 | 69662900 | R.H. UPPER REAR INSULATION | 1 |
| 61 | 69663000 | R.H. UPPER FRONT INSULATION | 1 |
| 62 | 69663100 | L.H. UPPER REAR INSULATION | 1 |
| 63 | 69663200 | L.H. UPPER FRONT INSULATION | 1 |
| 64 | 70001205 | ADHESIVE FILM KIT | 2 |
| 65 | 14648490 | NUT WITH CAGE | 6 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
