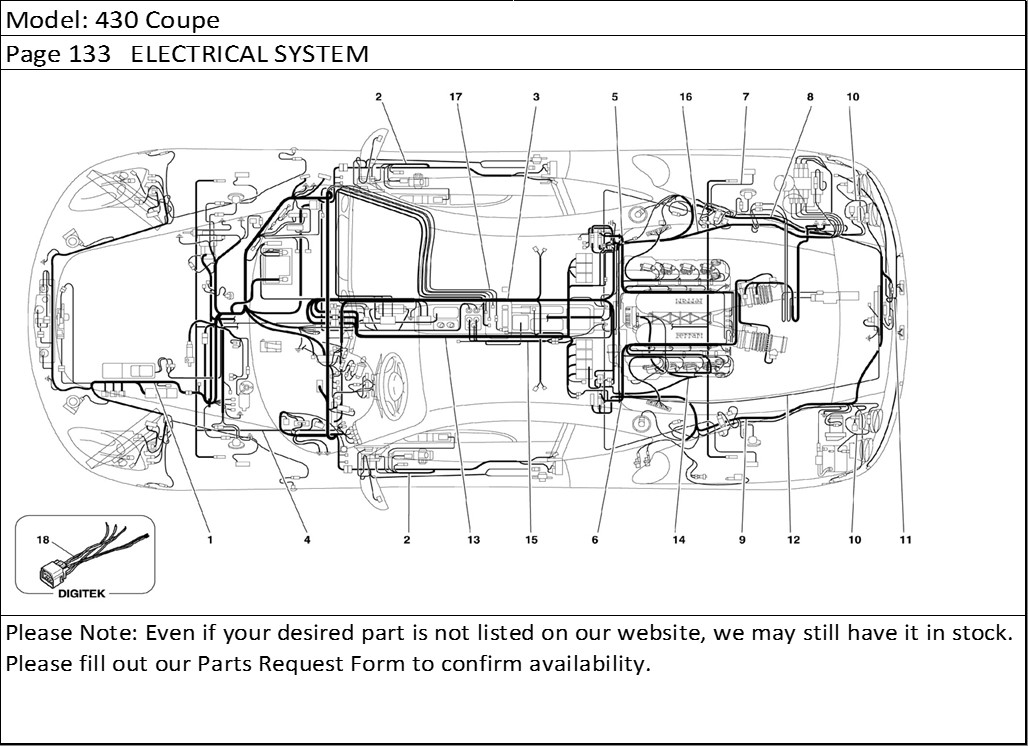

430 Coupe Page 133 ELECTRICAL SYSTEM
Product Description
430 Coupe Page 133 ELECTRICAL SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 208340 | FRONT CABLES -Valid till car Ass. Nr. 40465 for cars not USA and CDN- -Vale per USA e CDN- | 1 |
| 1 | 218282 | FRONT CABLES -Valid from car Ass. Nr. 40466- -Not for USA and CDN- -Valid till Ass. Nr. 71978- | 1 |
| 1 | 233832 | FRONT CABLES -Valid from car Ass. Nr. 40466- -Not for USA and CDN- -Valid from Ass. Nr. 71979- | 1 |
| 1 | 233837 | FRONT CABLES -Valid from car Ass. Nr. 40466- -Valid for USA and CDN- -Valid from Ass. Nr.71979- | 1 |
| 2 | 236393 | DOOR CONNECTION CABLES -Valid for powered HI FI Bose system- | 2 |
| 2 | 228251 | DOOR CONNECTION CABLES -Valid after stock exhaustion of 198209- -Valid from Ass. Nr. 68691 - | 2 |
| 2 | 198209 | DOOR CONNECTION CABLES -Valid till stock exhaustion- -Valid till Ass. Nr. 68690- | 2 |
| 3 | 240644 | DASHBOARD CONNECTION CABLES -Optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71979- | 1 |
| 3 | 218507 | DASHBOARD CONNECTION CABLES -Valid for GD- -Not as spare part- -Replaced by 218507- | 1 |
| 3 | 218507 | DASHBOARD CONNECTION CABLES -Valid for GD- -Valid till car Ass. Nr. 61554- | 1 |
| 3 | 220462 | DASHBOARD CONNECTION CABLES -Valid for GD- -Valid from car Ass. Nr. 61555- -Valid till Ass. Nr.65448- | 1 |
| 3 | 227585 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -Navtrak- -Valid from Ass. Nr. 65449- -Valid till Ass. Nr. 71567- | 1 |
| 3 | 232682 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -Navtrak- -Valid from Ass. Nr. | 1 |
| 3 | 241955 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -Navtrak- -Valid from Ass. Nr.71979- | 1 |
| 3 | 228204 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr. | 1 |
| 3 | 232683 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr. | 1 |
| 3 | 241954 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr. 71979- | 1 |
| 3 | 240232 | DASHBOARD CONNECTION CABLES -Valid for GD- -Valid for powered HI FI Bose system- | 1 |
| 3 | 240229 | DASHBOARD CONNECTION CABLES -Not for GD- -Valid for powered HI FI Bose system- | 1 |
| 3 | 240646 | DASHBOARD CONNECTION CABLES -Full optional- -HI FI Bose system- -Not for GD- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 3 | 240643 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71979- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 3 | 232677 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71568- -Valid till Ass. Nr. 71978- | 1 |
| 3 | 218503 | DASHBOARD CONNECTION CABLES -Not for GD- -Valid till stock exhaustion- | 1 |
| 3 | 218384 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid till Ass. Nr. 61554- | 1 |
| 3 | 218503 | DASHBOARD CONNECTION CABLES -Full optional- -Not for GD- -Valid till Ass. Nr. 61554- | 1 |
| 3 | 231520 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 61555- -Valid till Ass. Nr. 67217 for USA and CDN- -Valid till stock exhaustion for not USA and CDN- -Valid till Ass. Nr.71567- | 1 |
| 3 | 232674 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 71568- -Valid till Ass.Nr.71978- | 1 |
| 3 | 240642 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 71979- | 1 |
| 3 | 231520 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr.67218 for USA and CDN- -Valid after stock exhaustion of 220460 for not USA e CDN- -Valid till Ass. Nr. 71567- | 1 |
| 3 | 231519 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 67218- -Valid till Ass. Nr. 71567- | 1 |
| 3 | 227584 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 65971- -Valid till Ass. Nr. 67217- | 1 |
| 3 | 220461 | DASHBOARD CONNECTION CABLES -Full optional- -Not for GD- -Valid from car Ass. Nr. 61555- -Valid till Ass. Nr. 65970- | 1 |
| 3 | 233837 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid for USA and CDN- -Valid from Ass. Nr. 71979- | 1 |
| 3 | 232679 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid for USA and CDN- -Valid from Ass. Nr. 71568- -Valid till Ass. Nr. 71978- | 1 |
| 4 | 192787 | TYRES PRESSURE CONTROL CABLES | 1 |
| 4 | 208355 | TYRES PRESSURE CONTROL CABLE -Valid for GD- | 1 |
| 5 | 219904 | R.H. SIDE INJECTION CONNECTING CABLES -Valid for USA and CDN- -Valil from M.Y. 07- -Valid from Ass.Nr.67971- | 1 |
| 5 | 209438 | R.H. SIDE INJECTION CONNECTING CABLES -Valid for USA and CDN- -Valid till Ass. Nr. 67970- | 1 |
| 5 | 221338 | R.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 1 |
| 5 | 215268 | R.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 1 |
| 5 | 215268 | R.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Not as spare part- -Replaced by 215268- | 1 |
| 6 | 219905 | L.H. SIDE INJECTION CONNECTING CABLES -Valid for USA and CDN- -Valil from M.Y. 07- -Valid from Ass.Nr.67971- | 1 |
| 6 | 209437 | L.H. SIDE INJECTION CONNECTING CABLES -Valid for USA and CDN- -Valid till Ass. Nr. 67970- | 1 |
| 6 | 221339 | L.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 1 |
| 6 | 215269 | L.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 1 |
| 6 | 215269 | L.H. SIDE INJECTION CONNECTING CABLES -Not for USA and CDN- -Not as spare part- -Replaced by 215269- | 1 |
| 7 | 192784 | ABS/ASR INSTALLATION CONNECTING CABLES -Not for GD- | 1 |
| 7 | 208354 | ABS/ASR INSTALLATION CONNECTING CABLES -Valid for GD- | 1 |
| 8 | 240466 | CONNECTION CABLES FOR R.H. ENGINE COMPARTMENT -Parking sensors- -Optional- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 8 | 230040 | CONNECTION CABLES FOR R.H. ENGINE COMPARTMENT -Parking sensors- -Optional- -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USAand CDN- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 20 | 1 |
| 8 | 223683 | CONNECTION CABLES FOR R.H. ENGINE COMPARTMENT -Parking sensors- -Optional- -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 1 |
| 8 | 240460 | CONNECTION CABLES FOR R.H. ENGINE COMPARTMENT -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 8 | 230039 | CONNECTION CABLES FOR R.H. ENGINE COMPARTMENT -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- -Valid till car Nr.157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 8 | 223682 | CONNECTION CABLES FOR R.H. ENGINE COMPARTMENT-Valid from car Ass. Nr. 62016- -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 1 |
| 8 | 202973 | CONNECTION CABLES FOR R.H. ENGINE COMPARTMENT -Valid till car Ass. Nr. 62015- | 1 |
| 9 | 218146 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Not for USA and CDN- -Valid from car Ass. Nr. 40466 and valid till car Ass. Nr. 62015- | 1 |
| 9 | 226482 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Not for USA and CDN- | 1 |
| 9 | 226482 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Not for USA and CDN- -Valid from Ass. Nr. 65254- -Valid after stock exhaustion of 223686- -Valid till Ass. Nr. 69638- | 1 |
| 9 | 230037 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Not for USA and CDN- | 1 |
| 9 | 240331 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Not for USA and CDN- | 1 |
| 9 | 218248 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Valid for USA and CDN- - Valid till car Ass. Nr. 62015- | 1 |
| 9 | 226483 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Valid for USA and CDN- | 1 |
| 9 | 226483 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Valid for USA and CDN- -Valid from Ass. Nr. 65254- -Valid after stock exhaustion of 223687- -Valid till Ass. Nr. 67970- | 1 |
| 9 | 230038 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Valid for USA and CDN- | 1 |
| 9 | 227390 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1- -Valid for CINA- -Valid till Ass. Nr.73459- | 1 |
| 9 | 240332 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1- -Valid for CINA- -Valid from Ass.Nr.73460- | 1 |
| 9 | 203015 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Vale for F1 - -Not for USA and CDN- | 1 |
| 9 | 230036 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Valid for USA and CDN- -Valil from M.Y. 07- -Valid from Ass. Nr. 67971- | 1 |
| 9 | 202975 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Not for USA and CDN- -Valid till car Ass. Nr. 40465- | 1 |
| 9 | 218144 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Not for USA and CDN- -Valid from car Ass. Nr. 40466 and valid till car Ass. Nr. 61577- | 1 |
| 9 | 221347 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Not for USA and CDN- -Valid from car Ass. Nr. 61578 and valid till car Ass. Nr. 62015- | 1 |
| 9 | 223684 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Not for USA and CDN- -Valid from car Ass. Nr. 62016 till Ass. Nr. 65253- -Valid till stock exhaustion- | 1 |
| 9 | 226479 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Not for USA and CDN- -Valid from Ass. Nr. 65254- -Valid after stock exhaustion of 223684- -Valid till Ass. Nr. 69638- | 1 |
| 9 | 230035 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Not for USA and CDN- -Valid from Ass. Nr. 69639- -Valid till Ass. Nr. 73459- | 1 |
| 9 | 240330 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Not for USA and CDN- -Valid from Ass. Nr. 73460- | 1 |
| 9 | 218246 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Valid for USA and CDN- - Valid till car Ass. Nr. 61577- | 1 |
| 9 | 221348 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Valid for USA and CDN- | 1 |
| 9 | 223685 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Valid for USA and CDN- | 1 |
| 9 | 226480 | CONNECTION CABLES FOR L.H. ENGINE COMPARTMENT -Not for F1 - -Valid for USA and CDN- -Valid from Ass. Nr. 65254- -Valid after stock exhaustion of 223685- -Valid till Ass. Nr. 67970- | 1 |
| 10 | 218558 | REAR LIGHTS CONNECTION CABLES -Valid for Korea- -Not as spare part- | 2 |
| 10 | 199173 | REAR LIGHTS CONNECTION CABLES -Valid for USA and CDN- -Valid till car Ass. Nr. 40465- | 2 |
| 10 | 210637 | REAR LIGHTS CONNECTION CABLES -Not for USA and CDN- -Not for Korea- -Valid till car Ass. Nr. 40465- | 2 |
| 11 | 182985 | CABLES FOR NUMBER PLATE LIGHTS | 1 |
| 12 | 241766 | STOP-LAMP CONNECTION CABLES -Valid after stock exhaustion of 200825- | 1 |
| 12 | 200825 | STOP-LAMP CONNECTION CABLES -Valid till stock exhaustion- -Valid for light 164834 T.130 P.8- | 1 |
| 13 | 218508 | REAR PART CONNECTING CABLES -Valid till car. Ass.Nr. 60051- | 1 |
| 13 | 218508 | REAR PART CONNECTING CABLES -Valid from car. Ass.Nr.60052 - -Valid till Ass.Nr.72455- | 1 |
| 13 | 235560 | REAR PART CONNECTING CABLES -Valid from Ass.Nr.72456- - Valid till car. Nr.157671 (Ass.Nr.74556)- -Valid till M.Y.2008- | 1 |
| 13 | 240463 | REAR PART CONNECTING CABLES -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 13 | 227387 | REAR CABLE -Valid till Ass. Nr. 72455- -Valid for CINA- | 1 |
| 14 | 192534 | COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES | 1 |
| 15 | 213318 | CABLES FOR TUNNEL CONNECTION | 1 |
| 16 | 208342 | COMPLETE GEARBOX CONTROL CABLES -Valid for F1- -Valid till car Ass. Nr. 61586- | 1 |
| 16 | 221019 | COMPLETE GEARBOX CONTROL CABLES -Valid for F1- -Valid from car Ass. Nr. 61587- -Valid till Ass. Nr. 66453 (car Nr. 149224)- -Valid for Jaeger F1 dashboard- -Valid till stock exhaustion- | 1 |
| 16 | 227293 | COMPLETE GEARBOX CONTROL CABLES -Valid for F1- -Valid from Ass. Nr. 66454 (car Nr. 149225)- -Valid for Digitek F1 dashboard- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 16 | 240459 | COMPLETE GEARBOX CONTROL CABLES -Valid for F1- -Valid from car Nr. 157672 (Ass.Nr.74557)- -Valid from M.Y.2008- | 1 |
| 17 | 199521 | BLUETOOTH CABLE -Optional- -Valid till car Nr. 146597- | 1 |
| 17 | 199522 | BECKER CABLE -Optional- -Valid from car Nr. 146598- | 1 |
| 18 | 227630 | DIGITEK F1 DASHBOARD CABLE -Valid for F1- -Valid for Digitek F1 dashboard with cable 208342 abd 221019- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
