430 Coupe Page 136 REAR PASSENGERS COMPARTMENT CONTROL STA
Product Description

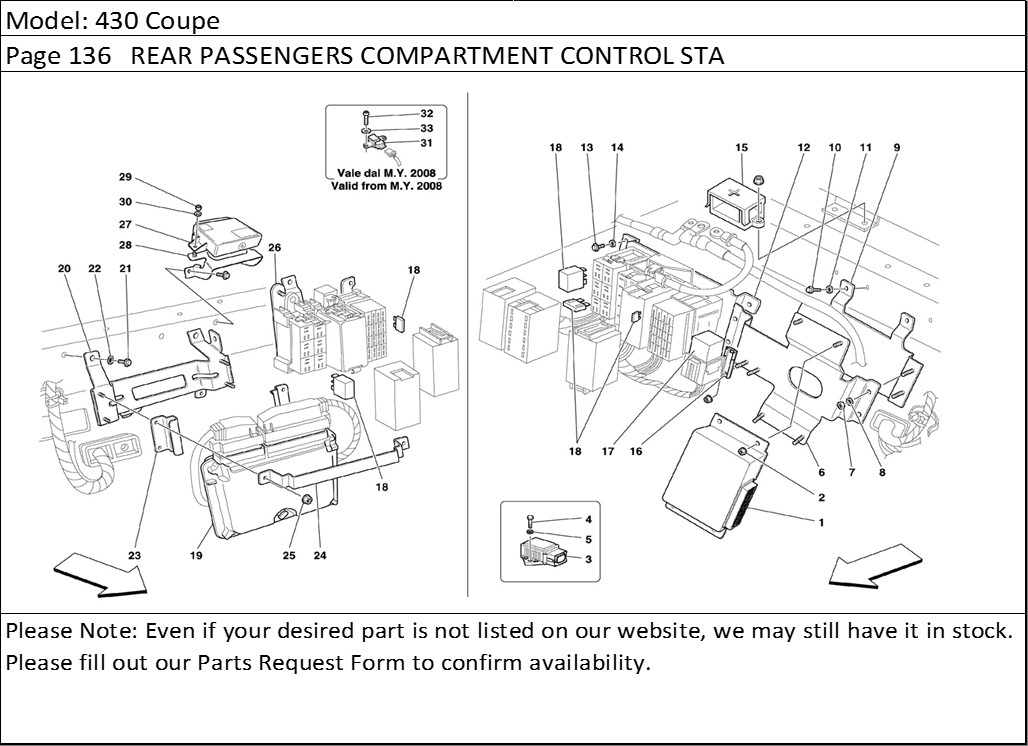

430 Coupe Page 136 REAR PASSENGERS COMPARTMENT CONTROL STA
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 199174 | DIFFERENTIAL CONTROL STATION | 1 |
| 2 | 113647 | NUT | 4 |
| 3 | 188172 | VAW SENSOR | 1 |
| 4 | 10902424 | SCREW | 2 |
| 5 | 12601274 | WASHER | 2 |
| 6 | 67505400 | L.H. UPPER BRACKET | 1 |
| 7 | 12575411 | NUT | 4 |
| 8 | 12620474 | WASHER | 4 |
| 9 | 67420900 | L.H. LOWER BRACKET | 1 |
| 10 | 16296924 | SCREW | 3 |
| 11 | 12620474 | WASHER | 3 |
| 12 | 67420800 | L.H. SIDE BRACKET FOR CONTROL UNIT FIXING | 1 |
| 13 | 16296924 | SCREW | 6 |
| 14 | 12620474 | WASHER | 6 |
| 15 | 170114 | TERMINAL BOX -Arrived also with battery positive cable 198700- | 1 |
| 16 | 155184 | BRACKET | 1 |
| 17 | 233100 | RELAY 50 A. -Valid till stock exhaustion- | 2 |
| 17 | 228646 | RELAY 50 A. -Valid after stock exhaustion of 194909- | 2 |
| 18 | 172877 | FUSE 10 A. | 11 |
| 18 | 172878 | FUSE 15 A. | 16 |
| 18 | 172879 | FUSE 20 A. | 2 |
| 18 | 172881 | FUSE 30 A. | 7 |
| 18 | 170093 | FUSE 30 A. | 2 |
| 18 | 170061 | FUSE 50 A. | 1 |
| 18 | 172871 | FUSE 60 A. | 2 |
| 18 | 172876 | FUSE 7,5 A. | 5 |
| 18 | 172875 | FUSE 5 A. | 4 |
| 18 | 227285 | MICRO-RELAY 20/10 A. -Valid after stock exhaustion of 161591 - | 2 |
| 18 | 172882 | MICRO-RELAY 30 A. -Valid till stock exhaustion- | 4 |
| 18 | 227286 | MICRO-RELAY 30 A. -Valid after stock exhaustion of 172882- | 4 |
| 18 | 183662 | RELAY FOR IMMOBILIZER/DIAGNOSIS -Valid till stock exhaustion- | 1 |
| 18 | 227285 | MICRO-RELAY 20/10 A. -Valid after stock exhaustion of 183662- | 1 |
| 18 | 161590 | MICRO-RELAY 20 A. -Valid till stock exhaustion- | 11 |
| 18 | 227286 | MICRO-RELAY 30 A. -Valid after stock exhaustion of 161590- | 11 |
| 18 | 227285 | MICRO-RELAY 20/10 A. -Valid till stock exhaustion- | 2 |
| 19 | 247774 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for GB and J- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 19 | 224668 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Valid for Taiwan- | 1 |
| 19 | 247773 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- -Not for launch control and easy output- | 1 |
| 19 | 227029 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid from M.Y. 06- -Valid from gearbox No. 3781- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 19 | 227029 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid from M.Y. 06- -Valid from gearbox No. 3781- -Not as spare part- -Replaced by 227029- | 1 |
| 19 | 222813 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid from M.Y. 06- -Valid till gearbox No. 3780- | 1 |
| 19 | 217781 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1- -Valid for USA and CDN- -Valid till M.Y. 06- | 1 |
| 19 | 247772 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN, GD and J- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 19 | 196228 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Valid till gearbox No. 3269- | 1 |
| 19 | 222812 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Valid from gearbox No. 3270 till gearbox No. 3780- | 1 |
| 19 | 227028 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Valid from gearbox No. 3781- -Not as spare part- -Replaced by 227028- | 1 |
| 19 | 227028 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Valid from gearbox No. 3781- -Valid for Noise kit- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 19 | 230462 | F1 GEAR-BOX ELECTRONIC CONTROL STATION -Valid for F1 - -Not for USA, CDN and Taiwan- -Not for Noise kit- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 20 | 67421000 | R.H. LOWER BRACKET | 1 |
| 21 | 16296924 | SCREW | 4 |
| 22 | 12620474 | WASHER | 4 |
| 23 | 67420500 | UPPER BRACKET | 2 |
| 24 | 68277800 | CONTROL UNIT FIXING BRACKET -Valid for F1- | 1 |
| 25 | 12575411 | NUT | 4 |
| 26 | 67421100 | R.H. BRACKET | 1 |
| 27 | 227934 | PARKING SENSORS CONTROL STATION -Parking sensors- -Optional- | 1 |
| 28 | 68813500 | CONTROL UNIT FIXING BRACKET -Parking sensors- -Optional- | 1 |
| 29 | 113647 | NUT -Parking sensors- -Optional- | 2 |
| 30 | 12601174 | WASHER -Parking sensors- -Optional- | 2 |
| 31 | 206071 | ACCELERATION SENSOR -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 32 | 62940900 | SCREW -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 2 |
| 33 | 12644478 | WASHER -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
