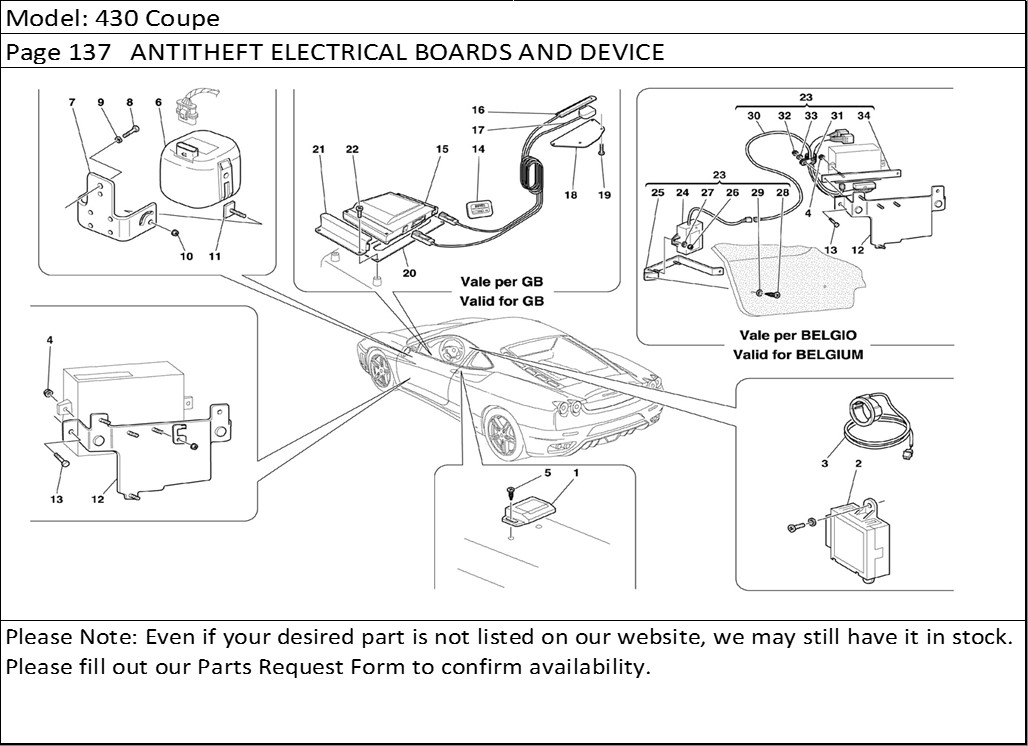

430 Coupe Page 137 ANTITHEFT ELECTRICAL BOARDS AND DEVICE
Product Description
430 Coupe Page 137 ANTITHEFT ELECTRICAL BOARDS AND DEVICE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 186594 | ANTI-LIFT SENSOR | 1 |
| 2 | 60673131 | IMMOBILIZER CONTROL STATION | 1 |
| 3 | 60692064 | IMMOBILIZER ANTENNA | 1 |
| 4 | 62790300 | NUT | 2 |
| 5 | 10444624 | SCREW -Not as spare part- -Replaced by 13272011 - | 2 |
| 5 | 13272011 | SCREW | 2 |
| 6 | 186593 | SIREN | 1 |
| 7 | 196386 | BRACKET | 1 |
| 8 | 16051921 | SCREW | 2 |
| 9 | 10519624 | WASHER | 2 |
| 10 | 102948 | NUT | 2 |
| 11 | 179810 | SCREW | 2 |
| 12 | 67912000 | BRACKET -Not as spare part- -Replaced by 69743500- | 1 |
| 12 | 69743500 | BRACKET | 1 |
| 13 | 16286024 | SCREW | 2 |
| 14 | 226183 | ADR3 CARD -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 15 | 226129 | ADR3 CONTROL STATION -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 16 | 226131 | GSM ANTENNA-PHANTOM 918 -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 17 | 226130 | GPS ANTENNA-SM76 MINI GPS -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 18 | 69082100 | PLATE -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 19 | 15900270 | SCREW -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 4 |
| 20 | 69732800 | ER PLATE -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 21 | 69733000 | UPPER PLATE -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 2 |
| 22 | 14779611 | SCREW -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 4 |
| 23 | 222626 | ANTI-THEFT KIT -Valid for Belgium- | 1 |
| 24 | 220908 | VOLUMETRIC SENSOR -Valid for Belgium- | 1 |
| 25 | 69344700 | BRACKET -Valid for Belgium- | 1 |
| 26 | 62790300 | NUT -Valid for Belgium- | 2 |
| 27 | 10519224 | WASHER -Valid for Belgium- | 2 |
| 28 | 13309177 | SCREW -Valid for Belgium- | 2 |
| 29 | 12611307 | WASHER -Valid for Belgium- | 2 |
| 30 | 220909 | CONNECTION CABLES -Valid for Belgium- | 1 |
| 31 | 10441490 | BRACKET WITH SHEATH -Valid for Belgium- | 1 |
| 32 | 62790300 | NUT -Valid for Belgium- | 1 |
| 33 | 10519224 | WASHER -Valid for Belgium- | 1 |
| 34 | 69344800 | CONTROL UNIT FIXING BRACKET -Valid for Belgium- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
