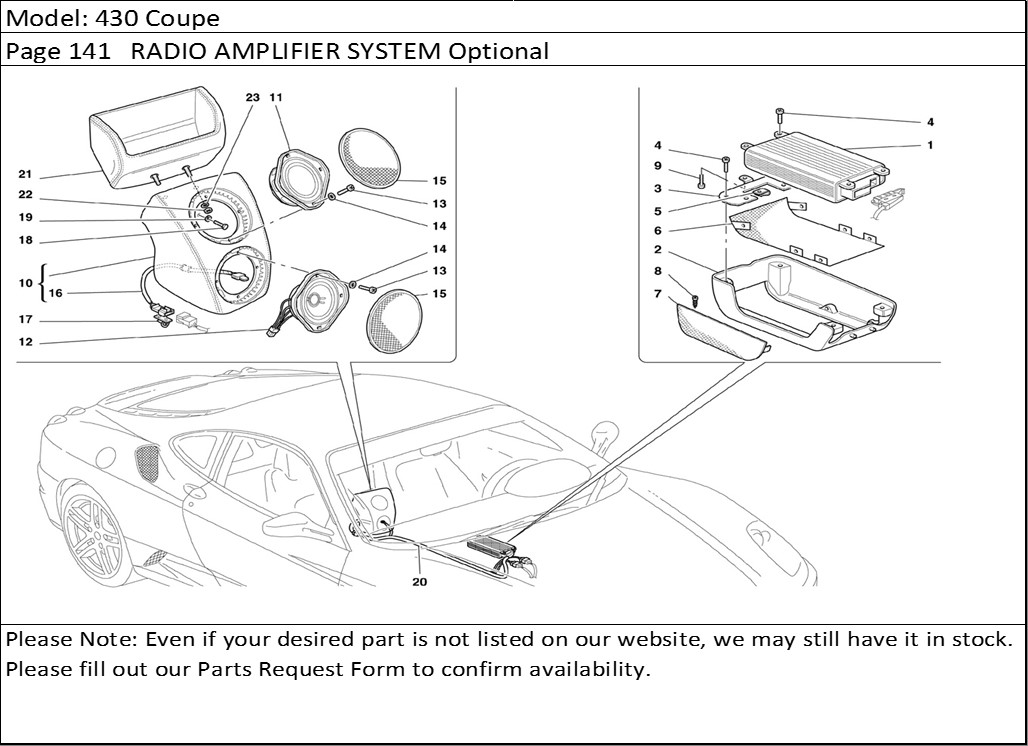

430 Coupe Page 141 RADIO AMPLIFIER SYSTEM Optional
Product Description
430 Coupe Page 141 RADIO AMPLIFIER SYSTEM Optional
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 188606 | SOUND AMPLIFIER | 1 |
| 2 | 667920 | AMPLIFIER BOX -Not as spare part- -Replaced by 688897..- | 1 |
| 2 | 688897 | AMPLIFIER BOX | 1 |
| 3 | 66770800 | BRACKET FOR FIXING AMPLIFIER | 1 |
| 4 | 13273977 | SCREW | 6 |
| 5 | 14371274 | BRACKET | 2 |
| 6 | 66771400 | ER GRILL FOR AMPLIFIER PROTECTION | 1 |
| 7 | 66771500 | LATERAL GRILL FOR AMPLIFIER PROTECTION -Not as spare part- -Replaced by 68935400- | 1 |
| 7 | 68935400 | LATERAL GRILL FOR AMPLIFIER PROTECTION | 1 |
| 8 | 15538601 | SCREW | 14 |
| 9 | 13274377 | SCREW | 1 |
| 10 | 672891 | SUBWOOFER BOX | 1 |
| 11 | 188609 | LOUD SPEAKER SUBWOOFER WITHOUT MAGNET | 1 |
| 12 | 188610 | LOUD SPEAKER SUBWOOFER | 1 |
| 13 | 13272077 | SCREW | 8 |
| 14 | 12637878 | WASHER | 8 |
| 15 | 66694500 | LOUD SPEAKER GRILL -Not as spare part- -Replaced by 68931100- | 2 |
| 15 | 68931100 | LOUD SPEAKER GRILL | 2 |
| 16 | 190455 | SUBWOOWER BOX CONNECTION CABLE | 1 |
| 17 | 155978 | CLIP | 1 |
| 18 | 10903421 | SCREW | 2 |
| 19 | 109483 | WASHER | 2 |
| 20 | 200853 | AMPLIFIER CONNECTION CABLE -Not as spare part- -Replaced by 216918- | 1 |
| 20 | 216918 | AMPLIFIER CONNECTION CABLE | 1 |
| 21 | 672090 | BOX SUBWOOFER CONTAINER | 1 |
| 22 | 113647 | NUT | 2 |
| 23 | 12638124 | WASHER | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
