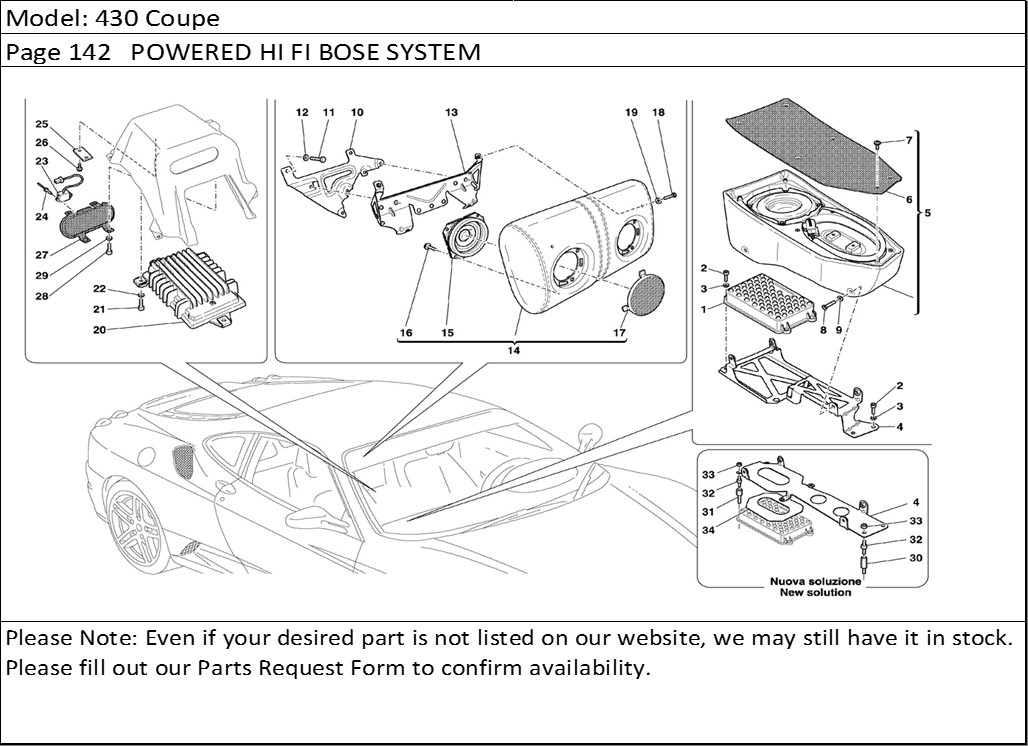

430 Coupe Page 142 POWERED HI FI BOSE SYSTEM
Product Description
430 Coupe Page 142 POWERED HI FI BOSE SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 233478 | BASS-BOX BOSE AMPLIFIER | 1 |
| 2 | 14358624 | SCREW -Valid till Ass. Nr. 74795- | 6 |
| 3 | 12638107 | WASHER -Valid till Ass. Nr. 74795- | 6 |
| 4 | 80409000 | BRACKET -Valid till Ass. Nr. 74795- | 1 |
| 4 | 80946800 | BRACKET -Valid from Ass. Nr. 74796- | 1 |
| 5 | 801991 | BASS-BOX BOSE MOULDING | 1 |
| 6 | 80199300 | GRILL | 1 |
| 7 | 16085177 | SCREW | 6 |
| 8 | 68927900 | SCREW | 4 |
| 9 | 12611107 | WASHER | 4 |
| 10 | 80569100 | R.H. INSERT | 1 |
| 10 | 80569300 | L.H. INSERT | 1 |
| 11 | 10902124 | SCREW | 6 |
| 12 | 10519424 | WASHER | 6 |
| 13 | 80481600 | SUPPORTING BRACKET | 2 |
| 14 | 804827 | CPL. R.H. TWIDDLER CONTAINER -Not for USA and CDN- | 1 |
| 14 | 804838 | CPL. R.H. TWIDDLER CONTAINER -Valid for USA and CDN- | 1 |
| 14 | 806021 | CPL. L.H. TWIDDLER CONTAINER | 1 |
| 15 | 227270 | LOUD SPEAKER TWIDDLER | 4 |
| 16 | 16082777 | SCREW | 16 |
| 17 | 80584300 | PLATE | 4 |
| 18 | 68927400 | SCREW | 16 |
| 19 | 12611107 | WASHER | 16 |
| 20 | 233479 | BOSE 8800 AMPLIFIER | 1 |
| 21 | 14305321 | SCREW | 3 |
| 22 | 12643724 | WASHER | 3 |
| 23 | 192522 | AUDIOPILOT BOSE MICROPHONE | 1 |
| 24 | 61756800 | RIVET | 2 |
| 25 | 80552200 | CLAMP FOR CABLE | 1 |
| 26 | 16082977 | SCREW | 2 |
| 27 | 80554000 | GRILL | 1 |
| 28 | 14418924 | SCREW | 4 |
| 29 | 13550077 | WASHER | 4 |
| 30 | 80858000 | STUD -Valid from Ass. Nr. 74796- | 2 |
| 31 | 80858100 | STUD -Valid from Ass. Nr. 74796- | 4 |
| 32 | 80858400 | SUPPORT -Valid from Ass. Nr. 74796- | 6 |
| 33 | 12577821 | NUT -Valid from Ass. Nr. 74796- | 6 |
| 34 | 81017800 | GASKET | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
