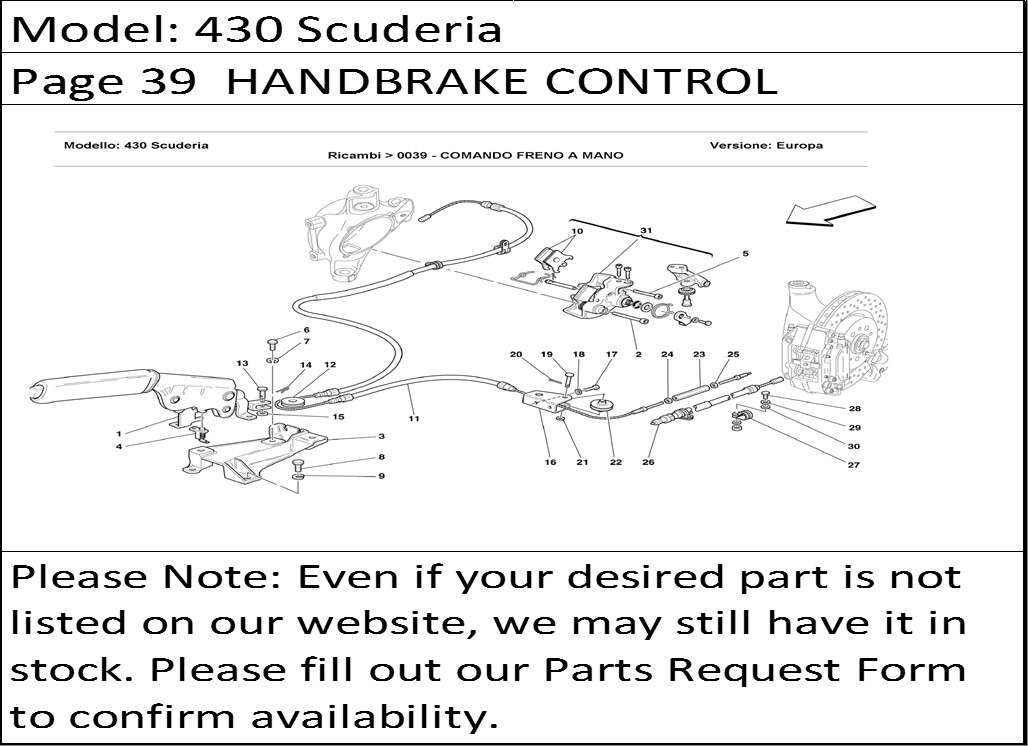

430 Scuderia Page 39 HANDBRAKE CONTROL
Product Description
430 Scuderia Page 39 HANDBRAKE CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 236933 | HAND BRAKE LEVER | 1 |
| 2 | 14308424 | SCREW | 1 |
| 3 | 207655 | LEVER FOR SHAFT FIXING | 1 |
| 4 | 176118 | MICRO-SWITCH | 1 |
| 5 | 14308924 | SCREW | 1 |
| 6 | 16043224 | SCREW | 2 |
| 7 | 127496 | WASHER | 2 |
| 8 | 16043434 | SCREW | 2 |
| 9 | 127496 | WASHER | 2 |
| 10 | 70000969 | KIT OF HAND BRAKES PADS WITH SPRING-CCM version- | 1 |
| 11 | 200637 | R.H. REAR CABLE | 1 |
| 12 | 122091 | PULLEY FOR CABLE | 1 |
| 13 | 10050814 | PIVOT | 1 |
| 14 | 10734208 | SPLIT PIN | 1 |
| 15 | 14496524 | WASHER | 1 |
| 16 | 176245 | BRACKET FOR CABLE FIXING | 1 |
| 17 | 10902224 | SCREW | 2 |
| 18 | 12601274 | WASHER | 2 |
| 19 | 10041214 | PIVOT | 1 |
| 20 | 10734208 | SPLIT PIN | 1 |
| 21 | 14496524 | WASHER | 1 |
| 22 | 176261 | PULLEY FOR CABLE | 1 |
| 23 | 10091014 | ADJUSTMENT SLEEVE | 1 |
| 24 | 10725914 | NUT | 1 |
| 25 | 10727314 | NUT | 1 |
| 26 | 210027 | L.H. REAR CABLE | 1 |
| 27 | 10441390 | BRACKET WITH SHEATH | 5 |
| 28 | 10902224 | SCREW | 3 |
| 29 | 12601274 | WASHER | 3 |
| 30 | 12644424 | WASHER | 3 |
| 31 | 228046 | R.H. CALIPER FOR HAND BRAKE-CCM version- | 1 |
| 31 | 228045 | L.H. CALIPER FOR HAND BRAKE-CCM version- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
