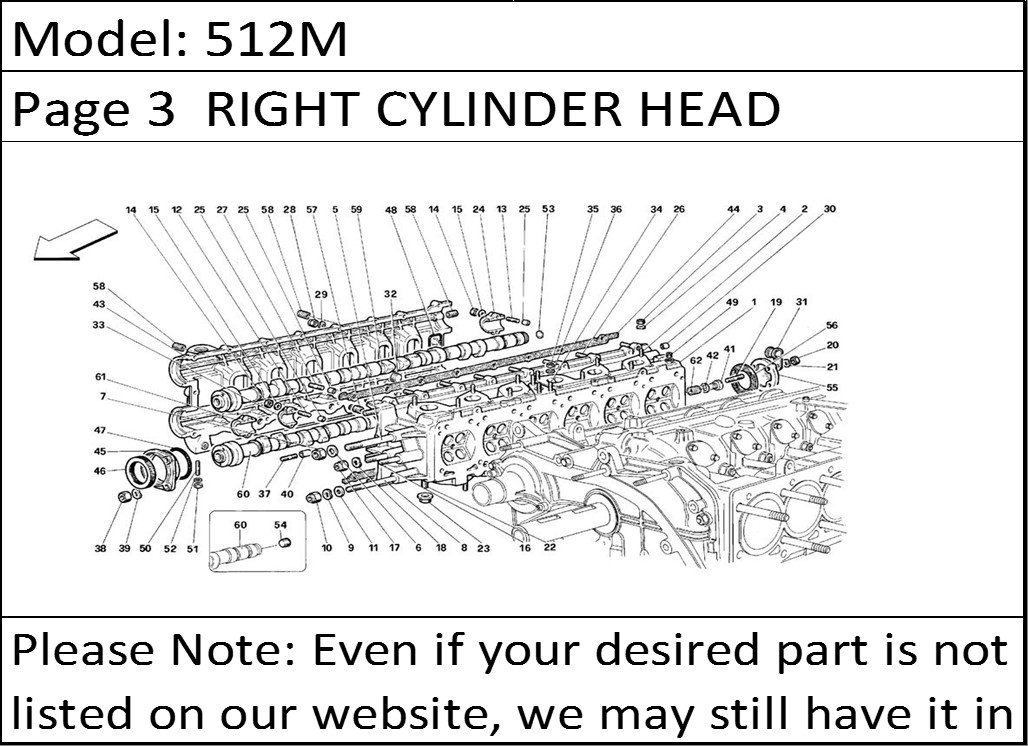

512M Page 3 RIGHT CYLINDER HEAD
Product Description
512M Page 3 RIGHT CYLINDER HEAD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 137713 | Right cylinder head, complete | 1 |
| 1 | 139959 | Right cylinder head -Not as spare parts- -With complete cylinder head 137713 | 1 |
| 2 | 12354524 | Stud | 10 |
| 3 | 16100821 | Nut | 10 |
| 4 | 11194079 | Washer | 10 |
| 5 | 13953121 | Stud | 1 |
| 6 | 12601474 | Washer | 1 |
| 7 | 102742 | Nut | 1 |
| 8 | 13970424 | Stud | 1 |
| 9 | 12604479 | Washer | 1 |
| 10 | 16104411 | Nut | 1 |
| 11 | 128010 | Washer | 1 |
| 12 | 102735 | Stud (inner caps) | 24 |
| 13 | 102754 | Stud (outer caps) | 4 |
| 14 | 15896214 | Nut | 28 |
| 15 | 11197771 | Washer | 28 |
| 16 | 13543424 | Stud (belt stretcher) | 2 |
| 17 | 101139 | Nut | 2 |
| 18 | 12601374 | Washer | 2 |
| 19 | 13541024 | Stud | 4 |
| 20 | 102741 | Nut | 4 |
| 21 | 12601274 | Washer | 4 |
| 22 | 13543524 | Stud | 12 |
| 23 | 124525 | Nut | 12 |
| 24 | 114497 | Rear cap -Not as spare parts- -With complete cylinder head 137713 | 2 |
| 25 | 102725 | Dowel | 30 |
| 26 | 13541324 | Stud for covers | 16 |
| 27 | 13541424 | Stud on dowel | 2 |
| 28 | 100044 | Nut | 18 |
| 29 | 12601274 | Washer | 18 |
| 30 | 102725 | Dowel | 2 |
| 31 | 10441690 | Bracket | 1 |
| 32 | 127635 | Plug | 2 |
| 33 | 126811 | Intermediate cap -Not as spare parts -With complete cylinder head 137713 | 10 |
| 34 | 13541024 | Stud | 3 |
| 35 | 102741 | Nut | 3 |
| 36 | 12601274 | Washer | 3 |
| 37 | 13541124 | Stud | 4 |
| 38 | 102741 | Nut | 4 |
| 39 | 12601274 | Washer | 4 |
| 40 | 102725 | Dowel | 4 |
| 41 | 10300740 | Water drain plug | 1 |
| 42 | 10257060 | Gasket | 1 |
| 43 | 148784 | Right cyl. head cover -Not as spare parts -With complete cylinder head 137713 | 1 |
| 44 | 150196 | Gasket | 1 |
| 45 | 121116 | Front cover | 2 |
| 46 | 133628 | Seal ring | 2 |
| 47 | 117036 | Seal ring | 2 |
| 48 | 127649 | Seal ring | 6 |
| 49 | 14326150 | Plug | 3 |
| 50 | 11500124 | Stud | 2 |
| 51 | 15896214 | Nut | 2 |
| 52 | 12601274 | Washer | 2 |
| 53 | 10158501 | Plug | 1 |
| 54 | 10269750 | Plug | 1 |
| 55 | 103796 | Rear cover | 1 |
| 56 | 150075 | Gasket | 1 |
| 57 | 10269750 | Plug | 3 |
| 58 | 13525470 | Heli-coil | 3 |
| 59 | 148810 | Right intake camshaft, complete | 1 |
| 60 | 140098 | Right exhaust camshaft, complete | 1 |
| 61 | 114499 | Front cap -Not as spare parts -With complete cylinder head 137713 | 2 |
| 62 | 103388 | Heli-coil | 1 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
