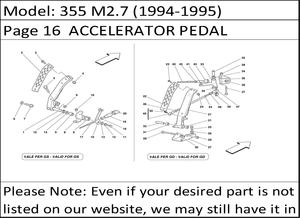

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 163173 | ACCELERATOR PEDAL -Not for GD | 1 |
| 2 | 163170 | ACCELERATOR PEDAL DRILLED PLATE -Not for GD | 1 |
| 3 | 14440734 | SCREW -Not for GD | 3 |
| 4 | 14058311 | NUT -Not for GD | 2 |
| 5 | 137012 | PEDAL ADJUSTEMENT PIN -Not for GD | 1 |
| 6 | 16102324 | NUT -Not for GD | 2 |
| 7 | 123961 | PEDAL ADJUSTEMENT PIN -Not for GD | 1 |
| 8 | 151206 | ACCELERATOR PEDAL SUPPORT -Not for GD | 1 |
| 9 | 101677 | BEARING -Not for GD | 2 |
| 10 | 145425 | ACCELERATOR CONTROL LEVER -Not for GD | 1 |
| 11 | 10902224 | SCREW -Not for GD | 1 |
| 12 | 127494 | WASHER -Not for GD | 1 |
| 13 | 106744 | WASHER -Not for GD | 1 |
| 14 | 108576 | SPACER WASHER mm. 1,0 -Not for GD | 1 |
| 14 | 105931 | SPACER WASHER mm. 0,7 -Not for GD | 1 |
| 15 | 11066075 | SEEGER RING -Not for GD | 1 |
| 16 | 104030 | NUT -Not for GD | 2 |
| 17 | 164441 | ACCELERATOR CONTROL CABLE -Valid after exhaustion of 160509 -Not for GD | 1 |
| 18 | 10123811 | BALL JOINT HEAD -Not for GD | 1 |
| 19 | 15896470 | NUT -Not for GD | 1 |
| 20 | 174001 | CLIP RETAINER -Not for GD | 1 |
| 21 | 163174 | ACCELERATOR PEDAL -Valid for GD | 1 |
| 22 | 163170 | ACCELERATOR PEDAL DRILLED PLATE -Valid for GD | 1 |
| 23 | 14440734 | SCREW -Valid for GD | 3 |
| 24 | 14058311 | NUT -Valid for GD | 2 |
| 25 | 137012 | PEDAL ADJUSTEMENT PIN -Valid for GD | 1 |
| 26 | 16102324 | NUT -Valid for GD | 1 |
| 27 | 138204 | ACCELERATOR PEDAL SUPPORT -Valid for GD | 1 |
| 28 | 10903621 | SCREW -Valid for GD | 1 |
| 29 | 102741 | NUT -Valid for GD | 1 |
| 30 | 104030 | NUT -Valid for GD | 2 |
| 31 | 101677 | BEARING -Valid for GD | 2 |
| 32 | 138219 | PIN -Valid for GD | 1 |
| 33 | 138215 | ACCELERATOR CONTROL LEVER -Valid for GD | 1 |
| 34 | 101677 | BEARING -Valid for GD | 2 |
| 35 | 138218 | PIN -Valid for GD | 1 |
| 36 | 138217 | LEVER SUPPORT -Valid for GD | 1 |
| 37 | 10903221 | SCREW -Valid for GD | 1 |
| 38 | 102741 | NUT -Valid for GD | 1 |
| 39 | 102948 | NUT -Valid for GD | 2 |
| 40 | 171349 | ACCELERATOR CONTROL CABLE -Valid after stock exhaustion of 164442 -Valid for GD | 1 |
| 41 | 10123811 | BALL JOINT HEAD -Valid for GD | 1 |
| 42 | 15896470 | NUT -Valid for GD | 1 |
| 43 | 174001 | CLIP -Valid for GD | 1 |
| 44 | 138214 | ACCELERATOR CONTROL SPRAG -Valid for GD | 1 |
| 45 | 173999 | BALL JOINT HEAD -Valid for GD | 1 |
| 46 | 15896470 | NUT -Valid for GD | 1 |
| 47 | 10123911 | BALL JOINT HEAD -Valid for GD | 1 |
| 48 | 105586 | NUT -Valid for GD | 1 |
| 49 | 174001 | CLIP -Valid for GD | 1 |
| 50 | 10795101 | SPLIT PIN -Valid for GD | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
