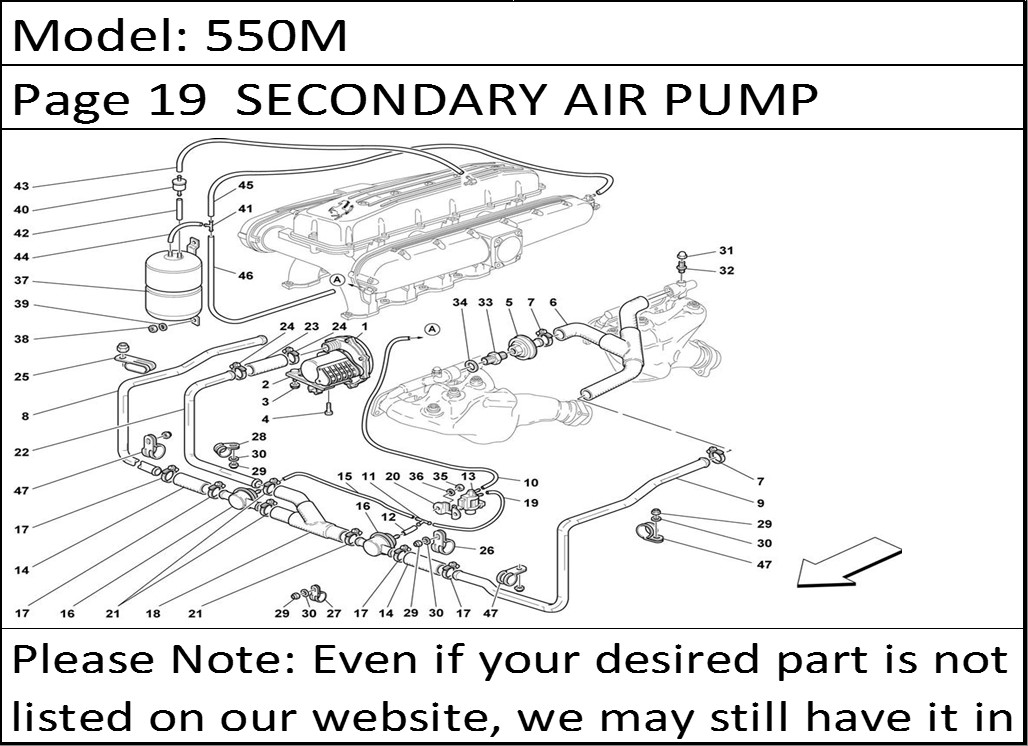

550M Page 19 SECONDARY AIR PUMP
Product Description
550M Page 19 SECONDARY AIR PUMP
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 165903 | ELECTRIC AIR PUMP WITH BRACKET | 1 |
| 2 | 149111 | BRACKET | 1 |
| 3 | 15896214 | NUT | 3 |
| 4 | 14306724 | SCREW | 1 |
| 5 | 148494 | SECONDARY AIR VALVE | 4 |
| 6 | 154873 | CONNECTION PIPE | 2 |
| 7 | 161490 | SCREW COLLAR | 6 |
| 8 | 155103 | R.H. PIPE | 1 |
| 9 | 168369 | L.H. PIPE | 1 |
| 10 | 117170 | PIPE FROM SOLENOID VALVE TO PLENUM CHAMBER -Valid from Ass. Nr. 22938 | 1 |
| 10 | 115665 | PIPE FROM SOLENOID VALVE TO PLENUM CHAMBER -Valid till Ass. Nr. 22937 | 1 |
| 11 | 121793 | 3-WAY UNION | 1 |
| 12 | 121831 | PIPE FROM UNION TO L.H. CUT-OFF VALVE | 1 |
| 13 | 159177 | SOLENOID VALVE | 1 |
| 14 | 165446 | RUBBER PIPE | 2 |
| 15 | 115412 | PIPE FROM R.H. CUT-OFF VALVE TO UNION | 1 |
| 16 | 147390 | CUT-OFF VALVE | 2 |
| 17 | 12180290 | SCREW COLLAR | 4 |
| 18 | 154871 | CONNECTION SLEEVE | 1 |
| 19 | 159539 | PIPE FROM UNION TO SOLENOID VALVE | 1 |
| 20 | 145472 | SMALL PLATE | 1 |
| 21 | 13000490 | SCREW COLLAR | 3 |
| 22 | 168368 | PIPE | 1 |
| 23 | 155116 | SLEEVE | 1 |
| 24 | 12180290 | SCREW COLLAR | 4 |
| 25 | 61712500 | BRACKET WITH SHEATH | 1 |
| 26 | 10441990 | BRACKET WITH SHEATH | 2 |
| 27 | 10441490 | BRACKET WITH SHEATH | 1 |
| 28 | 10441990 | BRACKET WITH SHEATH | 2 |
| 29 | 102948 | NUT | 6 |
| 30 | 14499324 | WASHER | 6 |
| 31 | 150595 | CAP NUT | 4 |
| 32 | 152630 | UNION | 4 |
| 33 | 152631 | UNION | 2 |
| 34 | 10257460 | GASKET | 4 |
| 35 | 169180 | NUT | 2 |
| 36 | 14496324 | WASHER | 2 |
| 37 | 175374 | DEPRESSION ACCUMULATION TANK | 1 |
| 38 | 102741 | NUT | 2 |
| 39 | 12646601 | WASHER | 2 |
| 40 | 62507200 | NONRETURN VALVE | 1 |
| 41 | 121793 | 3-WAY UNION | 1 |
| 42 | 121831 | PIPE FROM UNION TO L.H. CUT-OFF VALVE | 1 |
| 43 | 124347 | RUBBER HOSE FROM R.H. SUCTION MANIFOLD TO VALVE | 1 |
| 44 | 121831 | PIPE FROM UNION TO L.H. CUT-OFF VALVE | 1 |
| 45 | 122761 | RUBBER PIPE FROM UNION TO SOLENOID VALVE | 1 |
| 46 | 168432 | RUBBER PIPE FROM UNION TO SOLENOID VALVE -Not for GD | 1 |
| 46 | 124032 | RUBBER PIPE FROM UNION TO SOLENOID VALVE -Valid for GD | 1 |
| 47 | 10441790 | BRACKET WITH SHEATH | 3 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
