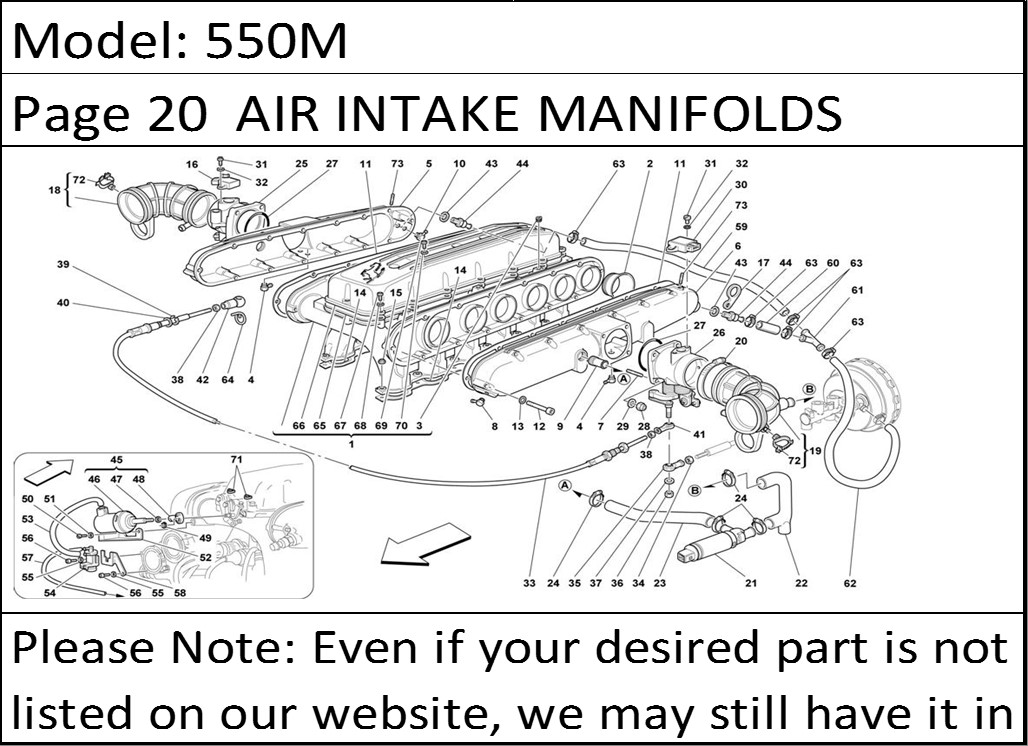

550M Page 20 AIR INTAKE MANIFOLDS
Product Description
550M Page 20 AIR INTAKE MANIFOLDS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 183032 | L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32102 GS and from car Ass. Nr. 321 | 1 |
| - | 183031 | R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32102 GS and from car Ass. Nr. 3210 | 1 |
| - | 183051 | R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32056 -Valid for USA M.Y. 99 and CD | 1 |
| - | 183052 | L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32056 -Valid for USA M.Y. 99 and C | 1 |
| - | 183053 | R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32057 -Valid for USA M.Y. 99 and CD | 1 |
| - | 177538 | COMPLETE SUCTION MANIFOLD WITH ACTUATOR -Valid from engine Nr. 49834 | 1 |
| - | 183054 | L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32057 -Valid for USA M.Y. 99 and C | 1 |
| - | 171619 | R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32101 GS and till car Ass. Nr. 3210 | 1 |
| - | 171620 | L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32101 GS and till car Ass. Nr. 321 | 1 |
| 1 | 162768 | SUCTION MANIFOLD -Valid till engine Nr. 49833 -Not as spare part -With complete suction manifolds | 1 |
| 1 | 177539 | SUCTION MANIFOLD -Valid from engine Nr. 49834 -Not as spare part -With complete suction manifolds | 1 |
| 2 | 168161 | END MANIFOLD | 12 |
| 3 | 13525570 | THREADED INSERT | 6 |
| 4 | 174818 | UNION -Valid for USA M.Y. 99 and CDN M.Y. 99 | 2 |
| 4 | 128016 | UNION -Not for USA M.Y. 99 and CDN M.Y. 99 | 2 |
| 7 | 13541324 | STUD | 8 |
| 8 | 128016 | UNION -Not for USA M.Y. 99 and CDN M.Y. 99 | 2 |
| 9 | 143286 | UNION | 2 |
| 10 | 128016 | UNION -Not for USA M.Y. 99 and CDN M.Y. 99 | 2 |
| 11 | 154562 | GASKET | 2 |
| 12 | 156828 | SCREW | 28 |
| 13 | 12601274 | WASHER | 28 |
| 14 | 225462 | GASKET | 2 |
| 15 | 159601 | NUT | 24 |
| 16 | 172750 | POTENTIOMETER FOR R.H. THROTTLE VALVE | 1 |
| 17 | 154754 | BRACKET | 1 |
| 18 | 180140 | R.H. SLEEVE -Valid from engine Nr. 52416 | 1 |
| 18 | 159830 | R.H. SLEEVE -Valid till engine Nr. 52415 | 1 |
| 19 | 159831 | L.H. SLEEVE -Valid till engine Nr. 52415 | 1 |
| 19 | 180141 | L.H. SLEEVE -Valid from engine Nr. 52416 | 1 |
| 20 | 13001190 | SCREEW COLLAR | 2 |
| 21 | 142432 | REGULATOR FOR IDLE ADJUSTMENT | 2 |
| 22 | 159120 | PIPE FROM REGULATOR TO SLEEVE | 2 |
| 23 | 171759 | PIPE FROM REGULATOR TO PLENUM CHAMBER | 2 |
| 24 | 12180290 | SCREW COLLAR | 8 |
| 25 | 171006 | COMPLETE R.H. THROTTLE HOLDER -Not for GD | 1 |
| 25 | 174463 | COMPLETE R.H. THROTTLE HOLDER -Valid for GD | 1 |
| 26 | 171007 | COMPLETE L.H. THROTTLE HOLDER -Not for GD | 1 |
| 26 | 171203 | COMPLETE L.H. THROTTLE HOLDER -Valid for GD | 1 |
| 27 | 142934 | O.R. GASKET | 2 |
| 28 | 101239 | NUT | 8 |
| 29 | 14496424 | WASHER | 8 |
| 30 | 158170 | POTENTIOMETER FOR L.H. THROTTLE VALVE | 1 |
| 31 | 10444521 | SCREW | 4 |
| 32 | 12601074 | WASHER | 4 |
| 33 | 178200 | PUSH-PULL CABLE | 1 |
| 34 | 15896470 | NUT | 2 |
| 35 | 111530 | BALL JOINT | 1 |
| 36 | 113647 | NUT | 1 |
| 37 | 14496324 | WASHER | 1 |
| 38 | 15896470 | NUT | 2 |
| 39 | 16160976 | FLEXIBLE RING | 1 |
| 40 | 12638624 | WASHER | 1 |
| 41 | 111530 | BALL JOINT | 1 |
| 42 | 173999 | BALL JOINT | 1 |
| 43 | 10298460 | GASKET | 2 |
| 44 | 147978 | NONRETURN VALVE | 2 |
| 45 | 168275 | COMPLETE ACTUATOR | 1 |
| 46 | 168275 | ACTUATOR | 1 |
| 47 | 173601 | NUT | 1 |
| 48 | 173596 | BALL JOINT | 1 |
| 49 | 173598 | SEEGER RING | 1 |
| 50 | 173599 | SCREW | 2 |
| 51 | 173600 | WASHER | 2 |
| 52 | 173595 | SUPPORT | 1 |
| 53 | 168248 | RUBBER PIPE | 1 |
| 54 | 159177 | SOLENOID VALVE | 1 |
| 55 | 12601274 | WASHER | 28 |
| 56 | 14305224 | SCREW | 2 |
| 57 | 122761 | RUBBER PIPE FROM UNION TO SOLENOID VALVE | 1 |
| 58 | 168246 | SMALL PLATE | 1 |
| 59 | 173841 | RUBBER PIPE FROM R.H. VALVE TO UNION | 1 |
| 60 | 111023 | RUBBER PIPE FROM L.H. VALVE TO UNION | 1 |
| 61 | 100881 | UNION | 1 |
| 62 | 173842 | RUBBER PIPE FROM UNION TO BRAKE BOOSTER -Valid for GD | 1 |
| 62 | 168386 | RUBBER PIPE FROM UNION TO BRAKE BOOSTER -Not for GD | 1 |
| 63 | 13000390 | SCREW COLLAR | 5 |
| 64 | 174001 | CLIP | 1 |
| 65 | 162904 | GASKET | 1 |
| 66 | 162903 | COVER | 1 |
| 67 | 14305424 | SCREW | 16 |
| 68 | 12601274 | WASHER | 28 |
| 69 | 163774 | SCREW | 5 |
| 70 | 12601174 | WASHER | 5 |
| 71 | 178441 | SEAL RING | 2 |
| 72 | 180139 | CLIP -Valid from engine Nr. 52416 | 6 |
| 73 | 11500024 | STUD -Valid from car Ass. Nr. 32102 GS, from car Ass. Nr. 32105 GD and from car Ass. Nr. 32057 M. | 2 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
