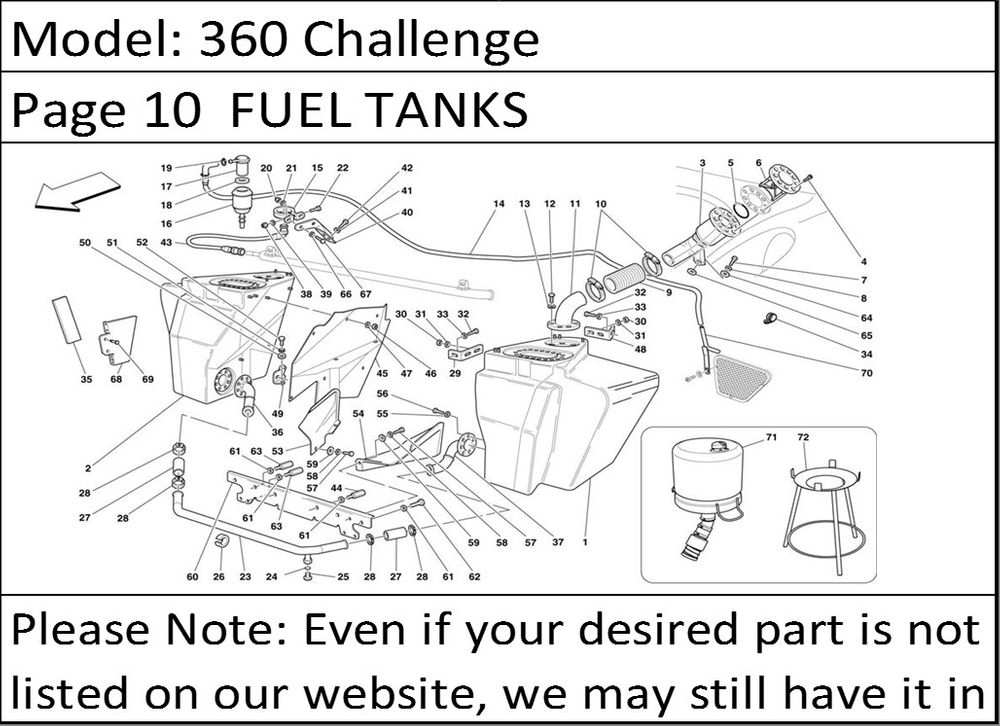

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 184735 | COMPLETE L.H. FUEL TANK CONTAINER | 1 |
| 2 | 184736 | COMPLETE R.H. FUEL TANK CONTAINER | 1 |
| 3 | 181494 | R.H.UNION | 1 |
| 3 | 181495 | L.H. UNION | 1 |
| 4 | 14440734 | SCREW | 18 |
| 5 | 183487 | OR-RING | 2 |
| 6 | 182506 | CHALLENGE FUEL PLUG | 2 |
| 7 | 10902424 | SCREW | 2 |
| 8 | 127494 | WASHER | 2 |
| 9 | 182911 | CONNECTION SLEEVE | 2 |
| 10 | 13000890 | SCREW COLLAR | 4 |
| 11 | 182902 | L.H. INLET TUBE | 1 |
| 11 | 182901 | R.H. INLET TUBE | 1 |
| 12 | 10902024 | SCREW | 16 |
| 13 | 12601274 | WASHER | 16 |
| 14 | 183402 | VENT PIPE | 1 |
| 15 | 176393 | BRACKET WITH SHEATH | 1 |
| 16 | 175967 | MULTIFUNTIONAL VALVE CONTAINER | 1 |
| 17 | 180030 | MULTIFUNTIONAL VALVE | 1 |
| 18 | 195049 | GASKET | 1 |
| 19 | 13432070 | SCREW COLLAR | 1 |
| 20 | 10720124 | NUT | 2 |
| 21 | 12644424 | WASHER | 2 |
| 22 | 10902834 | SCREW | 1 |
| 23 | 181695 | TANKS CONNECTION PIPE | 1 |
| 24 | 123622 | GASKET | 1 |
| 25 | 148045 | THREADED PLUG | 1 |
| 26 | 177437 | RUBBER THICKNESS | 6 |
| 27 | 114277 | RUBBER HOSE | 2 |
| 28 | 168220 | SCREW COLLAR | 4 |
| 29 | 65987000 | LH FRONT BRACKET | 1 |
| 29 | 65986900 | RH FRONT BRACKET | 1 |
| 30 | 102948 | NUT | 8 |
| 31 | 14496429 | WASHER | 8 |
| 32 | 10902424 | SCREW | 4 |
| 33 | 14496429 | WASHER | 4 |
| 34 | 10441590 | BRACKET WITH SHEATH | 1 |
| 35 | 159147 | RUBBER THICKNESS | 8 |
| 36 | 182906 | R.H. PIPE | 1 |
| 37 | 182907 | L.H. PIPE | 1 |
| 38 | 102741 | NUT | 1 |
| 39 | 12639724 | WASHER | 1 |
| 40 | 183399 | SUPPORTING BRACKET | 1 |
| 41 | 12644424 | WASHER | 2 |
| 42 | 10902224 | SCREW | 2 |
| 43 | 180373 | PIPE FROM MULTIFUNTIONAL VALVE TO DISAREATOR | 1 |
| 44 | 179242 | STUD | 1 |
| 45 | 182519 | RH FRONT PANEL | 1 |
| 45 | 182520 | LH FRONT PANEL | 1 |
| 46 | 169180 | NUT | 20 |
| 47 | 12638177 | WASHER | 20 |
| 48 | 65987200 | L.H. REAR BRACKET | 1 |
| 48 | 65987100 | RH REAR BRACKET | 1 |
| 49 | 183622 | LOWER BRACKET FOR R.H. TANK FIXING | 1 |
| 49 | 183623 | LOWER BRACKET FOR L.H. TANK FIXING | 1 |
| 50 | 14499324 | WASHER | 2 |
| 51 | 12605371 | WASHER | 2 |
| 52 | 10902424 | SCREW | 2 |
| 53 | 182521 | LOWER R.H. ANTI-HEAT SHIELD | 1 |
| 54 | 182522 | LOWER L.H. ANTI-HEAT SHIELD | 1 |
| 55 | 12601274 | WASHER | 16 |
| 56 | 10902024 | SCREW | 16 |
| 57 | 10902424 | SCREW | 4 |
| 58 | 12605371 | WASHER | 4 |
| 59 | 14499324 | WASHER | 4 |
| 60 | 176993 | PROTECTION PLATE | 1 |
| 61 | 13550221 | WASHER | 10 |
| 62 | 10902324 | SCREW | 7 |
| 63 | 178772 | STUD | 2 |
| 64 | 12643724 | WASHER | 2 |
| 65 | 12643724 | WASHER -Possible fitting | 4 |
| 66 | 127494 | WASHER | 2 |
| 67 | 10902024 | SCREW | 2 |
| 68 | 182623 | L.H. FUEL TANK PROTECTION PLATE | 1 |
| 68 | 182624 | R.H. FUEL TANK PROTECTION PLATE | 1 |
| 69 | 14644090 | RIVET | 12 |
| 70 | 184512 | VENT | 1 |
| 71 | 183914 | TANKS FILLING KIT | 1 |
| 72 | 183915 | TANK SUPPORT | 1 |
