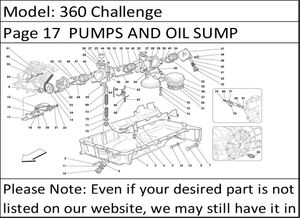

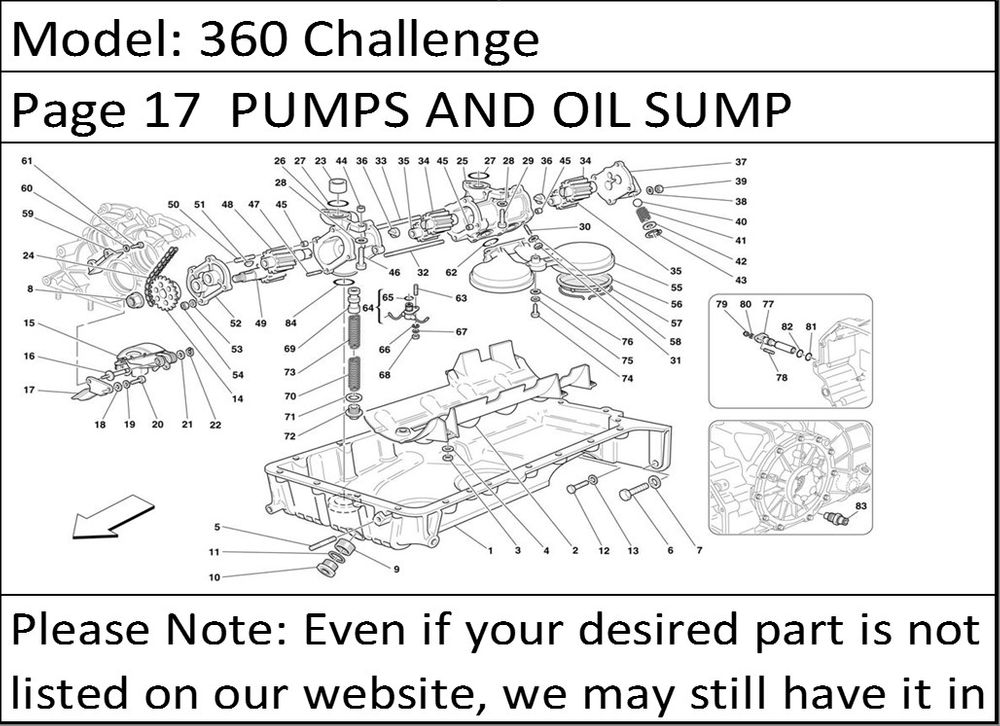

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 181819 | COMPLETE OIL SUMP | 1 |
| - | 185130 | DELIVERY PUMP BODY WITH STUD BOLTS | 1 |
| - | 185129 | RECOVERY PUMP BODY WITH STUD BOLTS | 1 |
| 1 | 181819 | OIL SUMP -Not as spare part -With the complete oil sump | 1 |
| 2 | 173623 | ANTI-SHAKING OIL PANEL | 1 |
| 3 | 177778 | NUT | 6 |
| 4 | 10519624 | WASHER | 6 |
| 5 | 13516524 | STUD | 2 |
| 6 | 11307021 | SCREW | 2 |
| 7 | 11190574 | WASHER | 2 |
| 8 | 132876 | NUT | 1 |
| 9 | 112254 | THREADED INSERT | 1 |
| 10 | 178959 | OIL OUTLET PLUG | 1 |
| 11 | 10261860 | GASKET | 1 |
| 12 | 14306424 | SCREW | 2 |
| 13 | 11198074 | WASHER | 2 |
| 14 | 132462 | DRIVEN GEAR | 1 |
| 15 | 185577 | CHAIN TIGHTENER | 1 |
| 16 | 169594 | STUD | 1 |
| 17 | 179938 | STOP PLATE | 1 |
| 18 | 12646601 | WASHER | 1 |
| 19 | 12601274 | WASHER | 1 |
| 20 | 10902224 | SCREW | 1 |
| 21 | 171960 | WASHER | 1 |
| 22 | 11065474 | FLEXIBLE RING | 1 |
| 23 | 145326 | BUSHING | 1 |
| 24 | 133089 | CHAIN | 1 |
| 25 | 185129 | RECOVERY PUMP BODY -Not as spare part -With the assembly 185129 | 1 |
| 26 | 185130 | DELIVERY PUMP BODY -Not as spare part -With the assembly 185130 | 1 |
| 27 | 133939 | O.R. GASKET | 2 |
| 28 | 11198074 | WASHER | 4 |
| 29 | 14306424 | SCREW | 3 |
| 30 | 13540824 | STUD | 4 |
| 31 | 132877 | NUT | 4 |
| 32 | 133842 | STUD | 2 |
| 33 | 133843 | STUD | 2 |
| 34 | 132458 | DRIVING GEAR | 2 |
| 35 | 132460 | DRIVEN GEAR | 2 |
| 36 | 109309 | COUPLING | 2 |
| 37 | 132436 | RECOVERY PUMP COVER | 1 |
| 38 | 11197771 | WASHER | 4 |
| 39 | 134041 | NUT | 4 |
| 40 | 121306 | BALL | 1 |
| 41 | 109980 | SPRING | 1 |
| 42 | 132772 | SPACER | 1 |
| 43 | 11057876 | SEEGER RING | 1 |
| 44 | 102704 | DOWEL | 1 |
| 45 | 102725 | DOWEL | 5 |
| 46 | 14306524 | SCREW | 1 |
| 47 | 13540824 | STUD | 2 |
| 48 | 181862 | DRIVEN GEAR | 1 |
| 49 | 132454 | DRIVING GEAR | 1 |
| 50 | 13541024 | STUD | 2 |
| 51 | 10205820 | DISC KEY | 1 |
| 52 | 132434 | FRONT COVER | 1 |
| 53 | 11197771 | WASHER | 4 |
| 54 | 134041 | NUT | 4 |
| 55 | 176222 | RECOVERY SUCTION PIPE | 1 |
| 56 | 122429 | FILTER | 2 |
| 57 | 103944 | RING | 2 |
| 58 | 12604274 | WASHER | 4 |
| 59 | 136039 | FIXED TENSION | 1 |
| 60 | 12601274 | WASHER | 2 |
| 61 | 10902424 | SCREW | 2 |
| 62 | 133938 | O.R. GASKET | 2 |
| 63 | 11000824 | STUD | 4 |
| 64 | 179069 | COMPLETE MULTIPLE UNION | 4 |
| 65 | 137192 | O.R. GASKET | 4 |
| 66 | 11199274 | WASHER | 4 |
| 67 | 10519378 | WASHER | 4 |
| 68 | 15896470 | NUT | 4 |
| 69 | 129324 | REGISTER | 1 |
| 70 | 177908 | OUTER SPRING | 1 |
| 71 | 10263360 | GASKET | 1 |
| 72 | 177423 | OIL PRESSURE VALVE CAP | 1 |
| 73 | 177909 | INNER SPRING | 1 |
| 74 | 179222 | SCREW | 1 |
| 75 | 127494 | WASHER | 1 |
| 76 | 12644424 | WASHER | 1 |
| 77 | 177130 | GEARBOX OIL SUCTION FAN | 1 |
| 78 | 11500224 | STUD | 2 |
| 79 | 102948 | NUT | 2 |
| 80 | 12604274 | WASHER | 2 |
| 81 | 177549 | O.R. GASKET | 1 |
| 82 | 177550 | O.R. GASKET | 1 |
| 83 | 104628 | GEARBOX THERMISTOR | 1 |
| 84 | 104535 | O.R. GASKET | 2 |
