Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

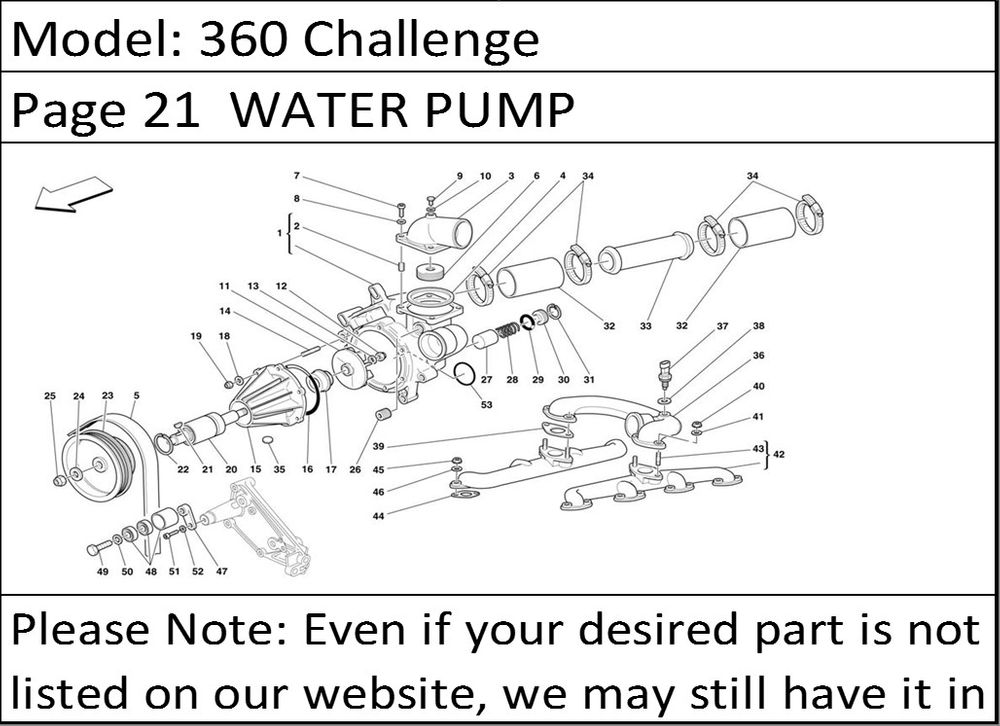

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 176044 | WATER PUMP BODY | 1 |
| 2 | 13525470 | THREADED INSERT | 4 |
| 3 | 171926 | THERMOSTATIC VALVE COVER | 1 |
| 4 | 182550 | FLANGE FOR PUMP RETAING | 1 |
| 5 | 201446 | WATER PUMP AND GENERATOR CONTROL BELT | 1 |
| 6 | 181487 | THREADED PLUG | 1 |
| 7 | 14433124 | SCREW | 4 |
| 8 | 12601274 | WASHER | 4 |
| 9 | 132349 | UNION | 1 |
| 10 | 10297760 | GASKET | 1 |
| 11 | 176045 | WATER PUMP IMPELLER | 1 |
| 12 | 100436 | CAP NUT | 1 |
| 13 | 11194074 | WASHER | 1 |
| 14 | 13540924 | STUD | 6 |
| 15 | 176173C | WATER PUMP | 1 |
| 16 | 137868 | O.R. GASKET | 1 |
| 17 | 183759 | FRONT SEAL RING | 1 |
| 18 | 12601274 | WASHER | 6 |
| 19 | 102741 | NUT | 6 |
| 20 | 143742 | BEARING WITH SHAFT | 1 |
| 21 | 10202320 | DISC KEY | 1 |
| 22 | 11059976 | SEEGER RING | 1 |
| 23 | 177207 | WATER PUMP CONTROL PULLEY | 1 |
| 24 | 12646821 | WASHER | 1 |
| 25 | 102742 | NUT | 1 |
| 26 | 106227 | UNION | 1 |
| 27 | 176046 | BUSHING | 1 |
| 28 | 176047 | SPRING | 1 |
| 29 | 147278 | O.R. GASKET | 1 |
| 30 | 176048 | SPRING PLUG | 1 |
| 31 | 11058376 | SEEGER RING | 1 |
| 32 | 183078 | SLEEVE | 2 |
| 33 | 178058 | PIPE | 1 |
| 34 | 13000690 | SCREW COLLAR | 4 |
| 35 | 10158801 | PLUG | 1 |
| 36 | 169526 | WATER OUTLET MANIFOLD CONNECTION DUCT | 1 |
| 37 | 180137 | WATER TEMPERATURE SENSOR | 1 |
| 38 | 10298460 | GASKET | 1 |
| 39 | 169564 | GASKET | 2 |
| 40 | 177778 | NUT | 4 |
| 41 | 12601374 | WASHER | 4 |
| 42 | 169749 | COMPLETE WATER OUTLET MANIFOLD | 2 |
| 43 | 13516824 | STUD | 4 |
| 44 | 141332 | GASKET | 8 |
| 45 | 132877 | NUT | 16 |
| 46 | 12604274 | WASHER | 16 |
| 47 | 180296 | SMALL PLATE | 1 |
| 48 | 179698 | BELT TIGHTENING BEARING | 1 |
| 49 | 15970921 | SCREW | 1 |
| 50 | 11190574 | WASHER | 1 |
| 51 | 14302824 | SCREW | 1 |
| 52 | 11198074 | WASHER | 1 |
| 53 | 101044 | O.R. GASKET | 1 |
