Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

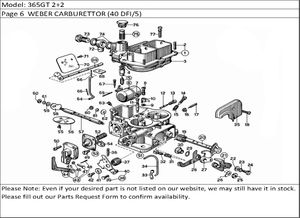

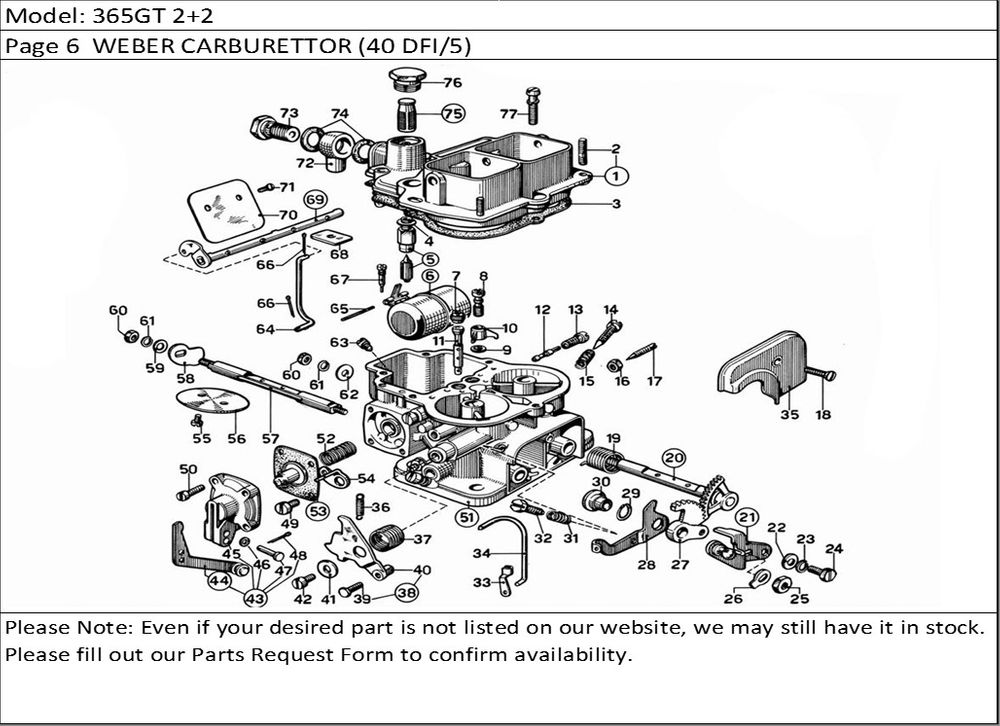

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 31716.017 | Cover | 1 |
| 2 | 64955.003 | Screw | 3 |
| 3 | 41705.02 | Gasket or Seal | 1 |
| 4 | 41535.015 | GASKET | 1 |
| 5 | 64240.013 | Valvola a spillo | 1 |
| 6 | 41015.004 | Galleggiante | 1 |
| 7 | 41360.001 | Getto aria di freno | 2 |
| 8 | 64290.005 | Valvola mandata pompa | 1 |
| 9 | 41530.012 | Gasket or Seal | 1 |
| 10 | 41252.013 | Getto pompa | 1 |
| 11 | 61440.166 | Tubetto emulsionatore | 2 |
| 12 | 41160.003 | Getto minimo | 2 |
| 13 | 52570.005 | Portagetto minimo | 2 |
| 14 | 64750.009 | Screw | 2 |
| 15 | 47600.007 | Spring | 2 |
| 16 | 34705.001 | Nut | 2 |
| 17 | 64750.01 | Screw | 2 |
| 18 | 64570.01 | Screw | 1 |
| 19 | 47610.039 | Spring | 1 |
| 20 | 10015.459 | Alberino destro | 1 |
| 21 | 45034.03 | LEVER | 1 |
| 22 | 55510.046 | WASHER | 1 |
| 23 | 55525.001 | WASHER | 1 |
| 24 | 64615.003 | Screw | 1 |
| 25 | 34710.003 | Nut | 1 |
| 26 | 55520.004 | WASHER | 1 |
| 27 | 58202.016 | Settore dentato | 1 |
| 28 | 45032.085 | LEVER | 1 |
| 29 | 55530.002 | WASHER | 1 |
| 30 | 12765.003 | Bush | 1 |
| 31 | 47600.007 | Spring | 1 |
| 32 | 64625.001 | Screw | 1 |
| 33 | 47670.001 | Clip | 1 |
| 34 | 61280.043 | Tirantino | 1 |
| 35 | 32464.004 | Coperciio scatola settori | 1 |
| 36 | 47605.022 | Spring | 1 |
| 37 | 47610.056 | Spring | 1 |
| 38 | 45202.024 | LEVER | 1 |
| 39 | 64615.004 | Screw | 1 |
| 40 | 45202.025 | LEVER | 1 |
| 41 | 55510.002 | WASHER | 1 |
| 42 | 64700.012 | Screw | 1 |
| 43 | 32486.014 | Cover | 1 |
| 44 | 45103.003 | LEVER | 1 |
| 45 | 32484.001 | Cover | 1 |
| 46 | 55530.006 | WASHER | 1 |
| 47 | 52010.033 | Pivot Fastening | 1 |
| 48 | 32610.006 | Split Pin | 1 |
| 49 | 64895.004 | Screw | 1 |
| 50 | 64700.004 | Screw | 4 |
| 51 | non a rica | Corpo carburatore | 1 |
| 52 | 47600.107 | Spring | 1 |
| 53 | 47407.014 | Membrana pompa | 1 |
| 54 | 45032.091 | LEVER | 1 |
| 55 | 64520.023 | Screw | 4 |
| 56 | 64005.087 | Valvola a farfalla | 2 |
| 57 | 10001.454 | Alberino maggiorato S | 1 |
| 57 | 10000.426 | Alberino sinistro | 1 |
| 58 | 14850.003 | Camma comando pompa | 1 |
| 59 | 55510.046 | WASHER | 1 |
| 60 | 34705.001 | Nut | 2 |
| 61 | 55525.001 | WASHER | 2 |
| 62 | 55510.002 | WASHER | 1 |
| 63 | 41120.001 | Getto principale | 2 |
| 64 | 61280.045 | Tirantino | 1 |
| 65 | 52000.015 | Pivot Fastening | 1 |
| 66 | 32610.006 | Split Pin | 2 |
| 67 | 64900.001 | Screw | 1 |
| 68 | 52135.01 | PLATE | 1 |
| 69 | 10020.206 | Alberino avviamento | 1 |
| 70 | 64010.007 | Farfalla avviamento | 2 |
| 71 | 64525.003 | Screw | 4 |
| 72 | 10354.012 | Union | 1 |
| 73 | 12715.021 | Screw | 1 |
| 74 | 41530.001 | Gasket or Seal | 2 |
| 75 | 37022.002 | Elemento filtrante | 1 |
| 76 | 61002.018 | Tappo filtro | 1 |
| 77 | 64700.005 | Screw | 5 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
