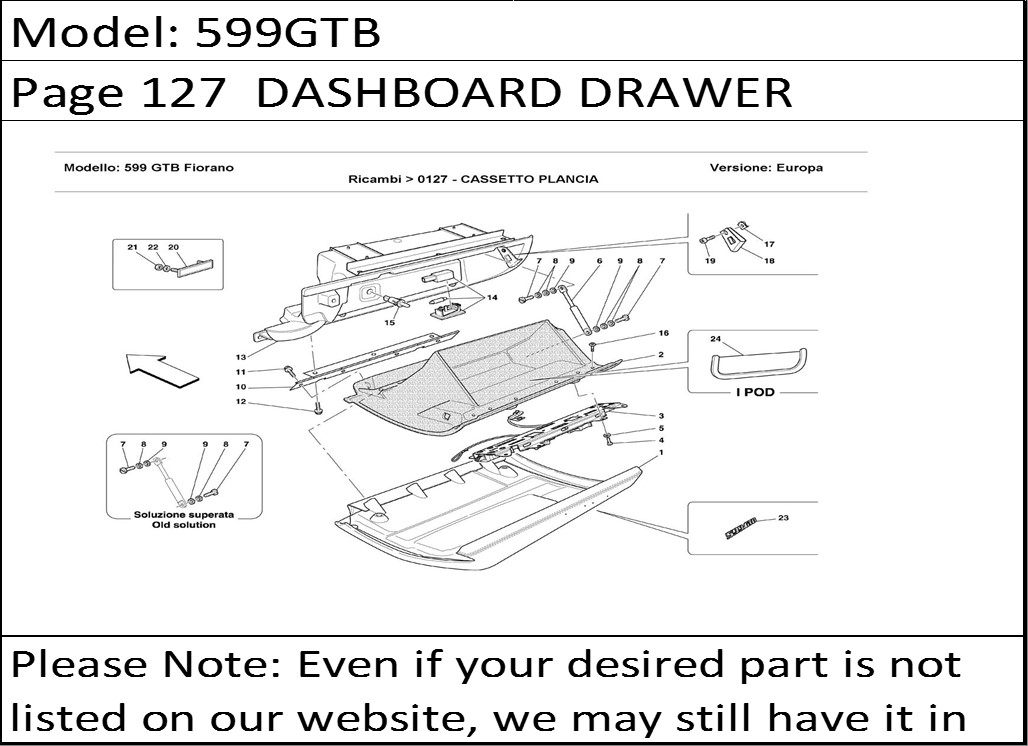

599GTB Page 127 DASHBOARD DRAWER
Product Description
599GTB Page 127 DASHBOARD DRAWER
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 697116 | SHUTTER ASSEMBLY-Not for USA, CDN and RHD- | 1 |
| 1 | 691584 | SHUTTER ASSEMBLY-Valid for USA and CDN- | 1 |
| 1 | 693721 | SHUTTER ASSEMBLY-Valid for RHD- | 1 |
| 1 | 699580 | SHUTTER ASSEMBLY-Valid for J- | 1 |
| 2 | 69950600 | DOOR FRAME-Standard--Not for RHD--Not as spare part--Replaced by 69950600- | 1 |
| 2 | 69950600 | DOOR FRAME-Standard--Not for RHD- | 1 |
| 2 | 69951400 | DOOR FRAME-Standard--Valid for RHD--Not as spare part--Replaced by 69951400- | 1 |
| 2 | 69951400 | DOOR FRAME-Standard--Valid for RHD- | 1 |
| 2 | 69950800 | DOOR FRAME-I POD presetting version--Not for RHD--Not as spare part--Replaced by 69950800- | 1 |
| 2 | 69950800 | DOOR FRAME-I POD presetting version--Not for RHD- | 1 |
| 2 | 69951600 | DOOR FRAME-I POD presetting version--Valid for RHD--Not as spare part--Replaced by 69951600- | 1 |
| 2 | 69951600 | DOOR FRAME-I POD presetting version--Valid for RHD- | 1 |
| 3 | 191572 | SHUTTER LOCK | 1 |
| 4 | 13273977 | SCREW | 5 |
| 5 | 12637878 | WASHER | 5 |
| 6 | 65847700 | CLOVE BOX STABILUS | 1 |
| 7 | 65686200 | SCREW | 2 |
| 8 | 65686300 | WASHER-Q.ty 2 in the old solution- | 4 |
| 9 | 13579106 | WASHER-Not as spare part--Replaced by 13579178- | 2 |
| 9 | 13579178 | WASHER | 2 |
| 10 | 66854600 | COMPLETE HINGE | 1 |
| 11 | 16285014 | SCREW | 4 |
| 12 | 16284914 | SCREW | 3 |
| 13 | 69950500 | COMPLETE DRAWER CONTAINER-Not for RHD--Not as spare part--Replaced by 69950600- | 1 |
| 13 | 69950500 | COMPLETE DRAWER CONTAINER-Not for RHD- | 1 |
| 13 | 69951300 | COMPLETE DRAWER CONTAINER-Valid for RHD--Not as spare part--Replaced by 69951300- | 1 |
| 13 | 69951300 | COMPLETE DRAWER CONTAINER-Valid for RHD- | 1 |
| 14 | 188250 | DOME LAMP | 1 |
| 15 | 188266 | PUSH BUTTON | 1 |
| 16 | 64460500 | SCREW | 6 |
| 17 | 14370874 | BRACKET | 2 |
| 18 | 67332500 | R.H. STRIKER | 1 |
| 18 | 67332600 | L.H. STRIKER | 1 |
| 19 | 13026121 | SCREW | 2 |
| 20 | 69863000 | CUSTOMER PLATE-Not for J- | 1 |
| 20 | 69960500 | CUSTOMER PLATE-Valid for J- | 1 |
| 21 | 16101711 | NUT | 2 |
| 22 | 14496105 | WASHER | 2 |
| 23 | 69850000 | 599GTB ORNAMENT-Not for J- | 1 |
| 23 | 69958500 | 599 ORNAMENT-Valid for J- | 1 |
| 24 | 69858000 | I POD SUPPORTIG POCKET-I POD presetting version--Not for RHD- | 1 |
| 24 | 69861100 | I POD SUPPORTIG POCKET-I POD presetting version--Valid for RHD- | 1 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
