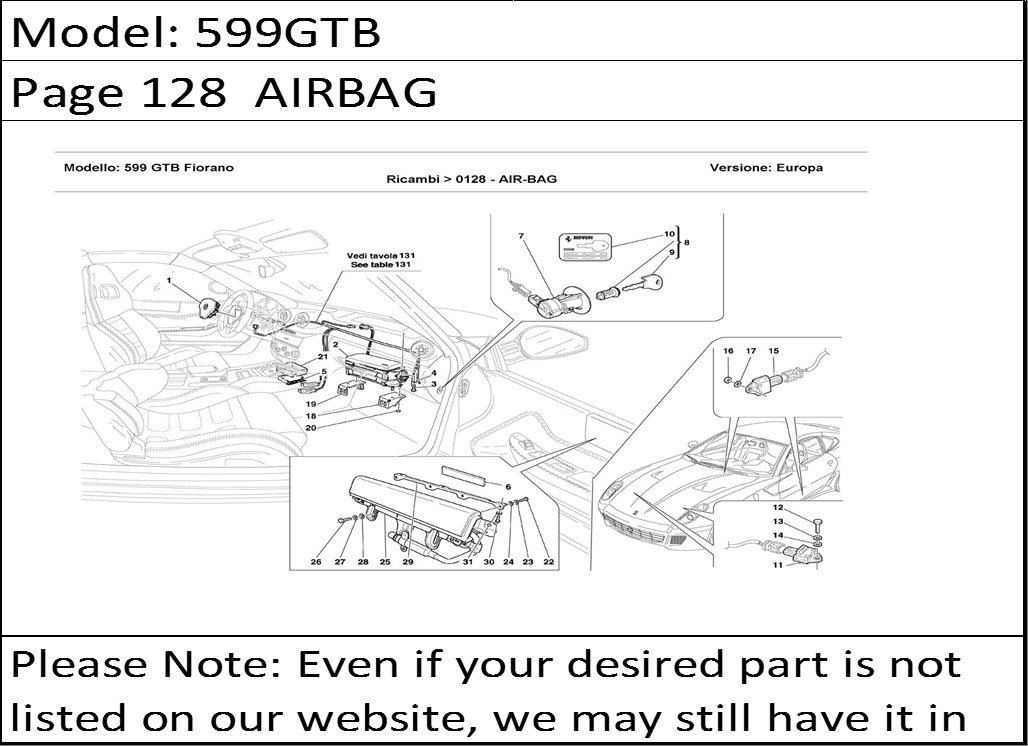

599GTB Page 128 AIRBAG
Product Description
599GTB Page 128 AIRBAG
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 668433 | DRIVER SIDE AIR-BAG | 1 |
| 1 | 668433 | ORIVER SIDE AlR-BAG | 1 |
| 2 | 693714 | PASSENGER SIDE AIR-BAG | 1 |
| 2 | 693714 | PASSENGER SIDE AlR-BAG | 1 |
| 3 | 13273911 | SCREW | 4 |
| 3 | 13273911 | SCREW | 4 |
| 4 | 12637824 | WASHER | 4 |
| 4 | 12637824 | WASHER | 4 |
| 5 | 204706 | AIR-BAG SYSTEM CONTROL UNIT-Standard--Not for USA- | 1 |
| 5 | 204706 | AlR-BAG SYSTEM CONTROL UNIT-Standard--Not for USA- | 1 |
| - | 204707 | AlR-BAG SYSTEM CONTROL UNIT-Valid for cars with passenger air-bag exclusion--Not for USA, CDN, USA and J- | 1 |
| 5 | 204707 | AIR-BAG SYSTEM CONTROL UNIT-Valid for cars with passenger air-bag exclusion--Not for USA,CDN, AUSandJ- | 1 |
| - | 215811 | AlR-BAG SYSTEM CONTROL UNIT-Valid for USA- | 1 |
| 6 | 66830800 | EXCLUSION AlR-BAG AUTO-ADHESIVE PLATE-Valid for cars with passenger air-bag exclusion--Notfor USA, CDN, AUS and J- | 1 |
| - | 68979100 | EXCLUSION AIR-BAG AUTO-ADHESIVE PLATE-Valid for cars with passenger air-bag exclusion--Valid for USA- | 1 |
| 7 | 66226300 | EXLUSION AlR-BAG PLATE-Valid far cars with passenger air-bag exclusion--Not far USA, CDN, GO and J- | 1 |
| - | 67194600 | EXLUSION AlR-BAG PLATE-Valid far cars with passenger air-bag exclusion--Valid for GB- | 1 |
| 8 | 223867 | LOCKS SET COMPLETEO WITH STEERING LOCK AND KEY | 1 |
| 9 | 227551 | BLANK KEY | |
| 10 | 153603 | FERRARI CODE CARD | 1 |
| 11 | 196143 | FRONT CRASH SENSOR | 2 |
| 12 | 10902724 | SCREW | 2 |
| 13 | 12644424 | WASHER | 2 |
| 14 | 127494 | WASHER | 2 |
| 15 | 193783 | LATERAL CRASH SENSOR | 2 |
| 16 | 102741 | NUT | 2 |
| 17 | 127494 | WASHER | 2 |
| 18 | 69162600 | R.H. BRACKET | 1 |
| 19 | 69162800 | L.H. BRACKET | 1 |
| 20 | 14059211 | NUT | 4 |
| 21 | 191575 | SHIELD | 1 |
| 22 | 65142000 | AlR BAG/CHILOREN SEAT INCOMPATIBILlTY PLATE-Not for USA, CDN and J- | 1 |
| 23 | 69185800 | 0 | 1 |
| - | 69233100 | AlR-BAG MAlNTENANCE AUTO-ADHESIVE PLATE-Valid for USA, AUS and J- | 1 |
| - | 69232000 | AlR-BAG MAlNTENANCE AUTO-ADHESIVE PLATE-Valid for CINA- | 1 |
| - | 69275300 | AlR-BAG MAlNTENANCE AUTO-ADHESIVE PLATE-Valid for CDN- | 1 |
| 24 | 68893600 | AlR-BAG AUTO-ADHESIVE PLATE-Not for USA, CDN, AUS and J- | 2 |
| - | 64764500 | AIR-BAG AUTO-ADHESIVE PLATE-Valid for AUS- | 2 |
| 25 | 685604 | COMPLETE R.H. LATERAL- BAG | 1 |
| - | 671050 | COMPLETE L.H. LATERAL- BAG | 1 |
| 26 | 16286124 | SCREW | 4 |
| 27 | 12644424 | WASHER | 4 |
| 28 | 10571579 | WASHER | 4 |
| 29 | 67136200 | R.H. UPPER BRACKET | 1 |
| - | 67136300 | L.H. UPPER BRACKET | 1 |
| 30 | 16284914 | SCREW | 8 |
| 31 | 12620374 | WASHER | 8 |
| 32 | 13577724 | WASHER | 8 |
| 33 | 15902601 | SCREW | 6 |
| 34 | 13579001 | WASHER | 6 |
| 35 | 65423700 | AlR-BAG PRESENCE PLATE-Valid for J- | 2 |
| - | 65424100 | AlR-BAG PRESENCE PLATE-Valid for J- | 2 |
| - | 65423900 | AlR-BAG USING AUTO-ADHESIVE PLATE-Valid for J- | 1 |
| - | 64541500 | AlR-BAG USING AUTO-ADHESIVE PLATE-Valid for CDN- | 1 |
| 36 | 68484600 | AlR-BAG SYSTEM PRESENCE PLATE-Valid for AUS- | 1 |
| - | 68591800 | AlR-BAG SYSTEM PRESENCE PLATE-Valid for CDN- | 1 |
| - | 68979200 | AIR-BAG SYSTEM PRESENCE PLATE-Valid for USA- | 1 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
