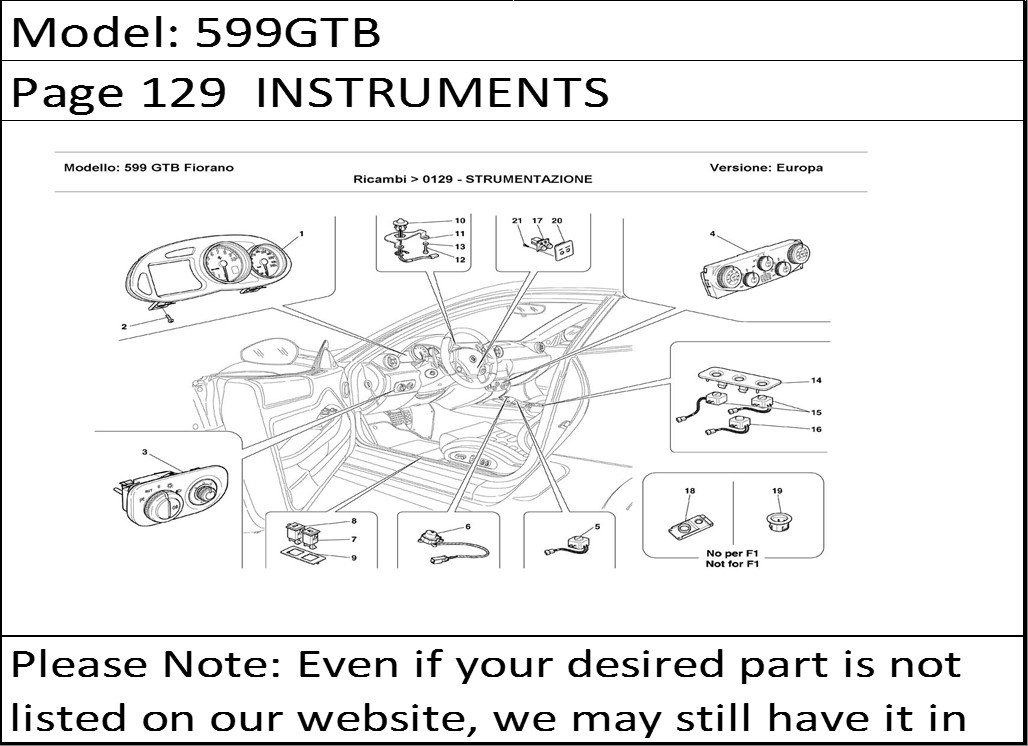

599GTB Page 129 INSTRUMENTS
Product Description
599GTB Page 129 INSTRUMENTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 223151 | COMPLETE INSTRUMENT BOARD-With kilometers odometer--Red revolution counter--Not forUSA and | 1 |
| 1 | 223151 | COMPLETE INSTRUMENT BOARD-With kilometers odometer--Red revolution counter--Not for USA and GB- | 1 |
| - | 223153 | COMPLETE INSTRUMENT BOARD-With miles odometer--Red revolution counter--Valid for USA- | 1 |
| - | 223155 | COMPLETE INSTRUMENT BOARD-With miles odometer--Red revolution counter--Valid for GB- | 1 |
| - | 223152 | COMPLETE INSTRUMENT BOARD-With kilometers odometer--Yellow revolution counter--Not for USA and GB- | 1 |
| - | 223154 | COMPLETE INSTRUMENT BOARD-With miles odometer--Yellow revolution counter--Valid for USA- | 1 |
| - | 223156 | COMPLETE INSTRUMENT BOARD-With miles odometer--Yellow revolution counter--Valid for GB- | 1 |
| - | 224683 | COMPLETE INSTRUMENT BOARD-With kilometers odometer--Red revolution counter--Carbon version--Not for USA and GB- | 1 |
| - | 224685 | COMPLETE INSTRUMENT BOARD-With miles odometer--Red revolution counter--Carbon version--Valid for USA- | 1 |
| - | 224687 | COMPLETE INSTRUMENT BOARD-With miles odometer--Red revolution counter--Carbon version--Valid for GB- | 1 |
| - | 224684 | COMPLETE INSTRUMENT BOARD-With kilometers odometer--Yellow revolution counter--Carbon version--Not for USA and GB- | 1 |
| - | 224686 | COMPLETE INSTRUMENT BOARD-With miles odometer--Yellow revolution counter--Carbon version--Valid for USA- | 1 |
| - | 224688 | COMPLETE INSTRUMENT BOARD-With miles odometer--Yellow revolution counter--Carbon version--Valid for GB- | 1 |
| 2 | 13273911 | SCREW | 3 |
| 3 | 227031 | PLATE FOR LlGHTS AND REARVIEW SWITCHES | 1 |
| 4 | 69717500 | AC. CONTROL DASHBOARD-With degrees ??C- | 1 |
| - | 69717600 | AC. CONTROL DASHBOARD-With degrees ??F- | 1 |
| 5 | 195849 | SWITCH OPENING DRAWER-Valid for F1--Valid for not F1 with carbon version- | 1 |
| - | 222032 | SWITCH OPENING DRAWER-Not for F1--Leather version- | 1 |
| 6 | 191356 | EMERGENCY LlGHTS SWITCH | 1 |
| 7 | 210983 | FUEL DOOR CONTROL PUSH-BUTTON | 1 |
| 8 | 210982 | TRUNK HOOD DOOR PUSH BUTTON | 1 |
| 9 | 67433400 | INNER PLATE | 1 |
| 10 | 199212 | SUN SENSOR | 1 |
| 11 | 69156800 | SENSOR FIXING BRACKET-Not for RHD- | 1 |
| - | 69716700 | SENSOR FIXING BRACKET-Valid for RHD- | 1 |
| 12 | 13273911 | SCREW | 2 |
| 13 | 12637824 | WASHER | 2 |
| 14 | 69156200 | BUTTON PLATE-Standard- | 1 |
| - | 69354600 | BUTTON PLATE-Parking sensors- | 1 |
| 15 | 191971 | DOORS LOCKING/RELEASING SWITCHS | 1 |
| 16 | 215293 | PARKING SENSORS EXCLUSION CONTROL SWITCH-Parking sensors- | 1 |
| 17 | 177902 | PUSH-BUTTONS FOR INSTRUMENTS FUNCTIONS CONTROL | 1 |
| 18 | 69246500 | FRONT BUTTON PLATE-Not for F1--Carbon version- | 1 |
| 19 | 69375300 | SWITCH OPENING DRAWER PLATE-Not for F1--Leather version- | 1 |
| - | 67628700 | EMERGENCY SWITCH PLATE-Not for F1--Leather version- | 1 |
| 20 | 69164800 | BUTTON PLATE | 1 |
| 21 | 15686101 | SCREW | 4 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
