California Page 131 INNER TRIMS
Product Description
California Page 131 INNER TRIMS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

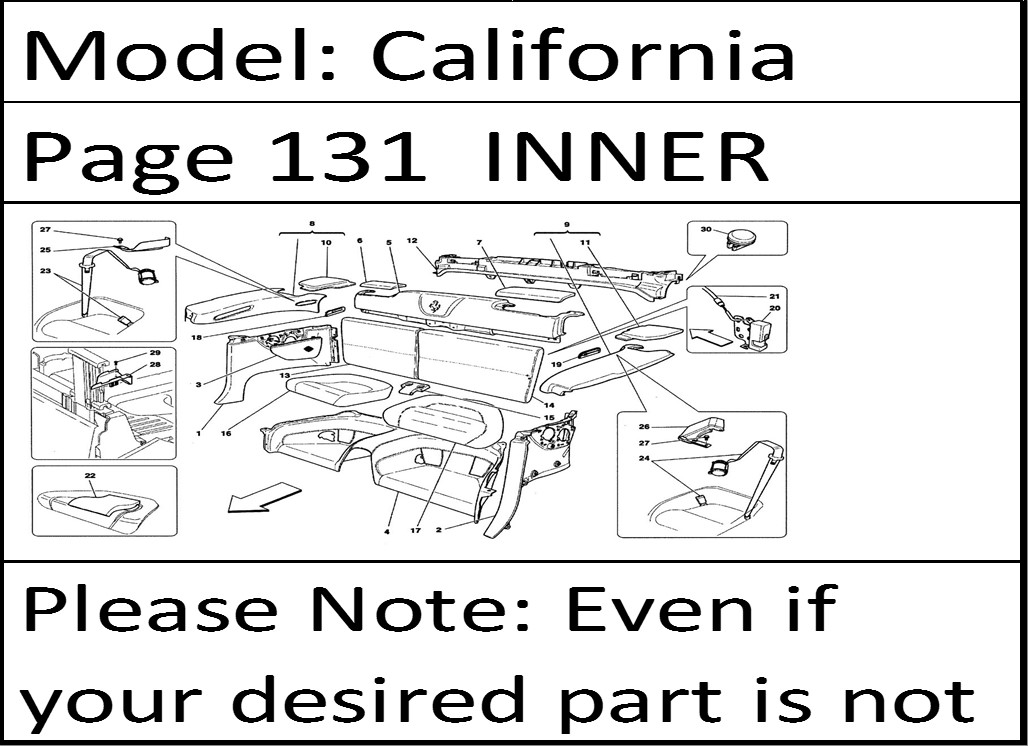

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 815624 | COMPLETE R.H. REAR LATERAL COVERING | 1 |
| 2 | 815625 | COMPLETE L.H. REAR LATERAL COVERING | 1 |
| 3 | 697899 | R.H. LOUD SPEAKER COVER | 1 |
| 3 | 697898 | L.H. LOUD SPEAKER COVER | 1 |
| 4 | 808754 | REAR SEATS MOLDING -Not for USA and CDN- -Not as spare part- -Replaced by 820095..- | 1 |
| 4 | 820095 | REAR SEATS MOLDING -Not for USA and CDN- | 1 |
| 4 | 823135 | REAR SEATS MOLDING -Valid for USA and CDN- | 1 |
| 5 | 697878 | UPPER REAR MOLDING | 1 |
| 6 | 801499 | R.H. ROLL BAR COVER | 1 |
| 7 | 697902 | L.H. ROLL BAR COVER | 1 |
| 8 | 814237 | R.H. UPPER REAR MOLDING | 1 |
| 9 | 814236 | LH. UPPER REAR MOLDING | 1 |
| 10 | 697901 | R.H. DOOR -Not as spare part- -Replaced by 820856..- | 1 |
| 10 | 820856 | R.H. DOOR | 1 |
| 11 | 697900 | L.H. DOOR -Not as spare part- -Replaced by 820855..- | 1 |
| 11 | 820855 | L.H. DOOR | 1 |
| 12 | 80150100 | CENTRAL BRACKET | 1 |
| 13 | 808773 | REAR RH BACKREST TRIM PANEL -Standard- -Not as spare part- -Replaced by 820934..- | 1 |
| 13 | 820934 | REAR RH BACKREST TRIM PANEL -Standard- | 1 |
| 13 | 823249 | REAR RH BACKREST TRIM PANEL -Alcantara- | 1 |
| 14 | 808772 | REAR LH BACKREST TRIM PANEL -Standard- -Not as spare part- Replaced by 820933..- | 1 |
| 14 | 820933 | REAR LH BACKREST TRIM PANEL -Standard- | 1 |
| 14 | 823245 | REAR LH BACKREST TRIM PANEL -Alcantara- | 1 |
| 15 | 80877600 | INTERNAL REAR BACKREST HINGE | 1 |
| 16 | 820105 | R.H. SEAT CUSHION -Standard- | 1 |
| 16 | 823260 | R.H. SEAT CUSHION -Alcantara- | 1 |
| 16 | 827480 | R.H. SEAT CUSHION -Daytona- | 1 |
| 17 | 820104 | L.H. SEAT CUSHION -Standard- | 1 |
| 17 | 823259 | L.H. SEAT CUSHION -Alcantara- | 1 |
| 17 | 827481 | L.H. SEAT CUSHION -Daytona- | 1 |
| 18 | 82118700 | COMPL. REAR RH FIXING PLATE | 1 |
| 19 | 82118600 | COMPL. REAR LH FIXING PLATE | 1 |
| 20 | 820936 | REAR RH TRIM | 1 |
| 20 | 820935 | REAR LH TRIM | 1 |
| 21 | 82085300 | VERTICAL LOCK BOWDEN CABLE | 1 |
| 22 | 82253400 | SUPPORT | 1 |
| 23 | 810478 | RH REAR SEATBELTS | 1 |
| 24 | 805784 | LH REAR SEATBELTS | 1 |
| 25 | 81507100 | COVER FOR RH RETRACTOR | 1 |
| 26 | 81507000 | COVER FOR LH RETRACTOR | 1 |
| 27 | 11625624 | SCREW WITH WASHER | 4 |
| 28 | 69791800 | UPPER GUIDE FOR REAR RH SEATBELT | 1 |
| 28 | 69791700 | UPPER GUIDE FOR REAR LH SEATBELT | 1 |
| 29 | 69717300 | M6x18 SCREW | 2 |
| 30 | 82026200 | RUBBER PAD FOR BRACKET | 2 |
| 1 | 9688 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Leather- -Leather- -Valid for | 1 |
| 1 | 9689 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
