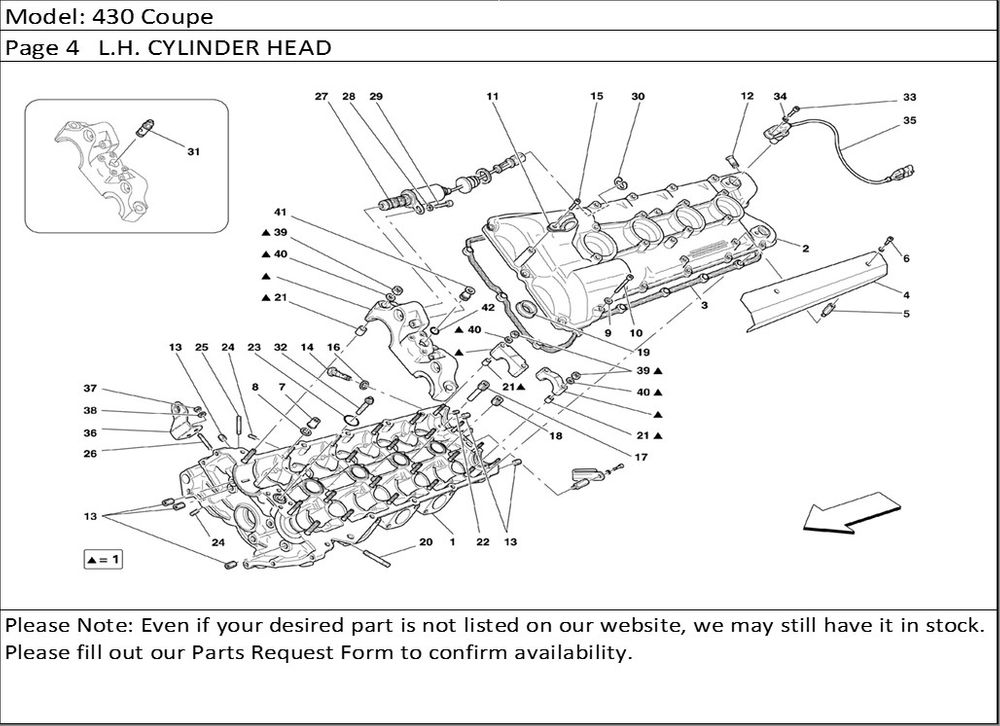

430 Coupe Page 4 L.H. CYLINDER HEAD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 206797 | COMPLETE L.H. HEAD -Valid till engine No. 97780- | 1 |
| 1 | 219173 | COMPLETE L.H. HEAD -Valid from engine Nr. 97781 and valid till engine Nr. 99607- -Valid till M.Y.06- | 1 |
| 1 | 218553 | COMPLETE L.H. HEAD -Valid from engine Nr. 99608- -Valid from M.Y. 06- -Valid till Ass. Nr. 71273- -Valid till stock exhaustion- | 1 |
| 1 | 235662 | COMPLETE L.H. HEAD -Valid from engine Nr. 99608- -Valid from M.Y. 06- -With valve seat Como 12- -Valid from Ass. Nr. 71274- -Valid after stock exhaustion of 218553- | 1 |
| 2 | 197576 | L.H. CYLINDERS HEAD COVER -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 1 |
| 2 | 221341 | L.H. CYLINDERS HEAD COVER -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 1 |
| 3 | 198928 | L.H. HEAD COVER GASKET | 1 |
| 4 | 229163 | ANTI-HEAT SHIELD | 1 |
| 5 | 212466 | STUD | 1 |
| 6 | 14305724 | SCREW | 1 |
| 7 | 183524 | NUT | 10 |
| 8 | 151117 | SHER | 10 |
| 9 | 11197774 | SHER | 14 |
| 10 | 156834 | SCREW | 14 |
| 11 | 10441490 | BRACKET WITH SHEATH | 2 |
| 12 | 124342 | THREADED UNION | 1 |
| 13 | 14326001 | THREADED PLUG | 6 |
| 14 | 180267 | OIL NONRETURN VALVE | 1 |
| 15 | 14305124 | SCREW -Not as spare part- -Replaced by 233600- | 1 |
| 15 | 233600 | SCREW | 1 |
| 16 | 10261060 | GASKET | 1 |
| 17 | 183447 | THREADED PLUG | 4 |
| 18 | 164400 | THREADED PLUG | 1 |
| 19 | 187706 | GASKET -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 4 |
| 19 | 223982 | GASKET -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr.69639 for not USA and CDN- | 4 |
| 20 | 211641 | STUD | 8 |
| 21 | 102725 | CENTERING DOWEL | 22 |
| 22 | 14326101 | THREADED PLUG | 1 |
| 23 | 134233 | O.R. GASKET | 1 |
| 24 | 199760 | THREADED PLUG | 4 |
| 25 | 13541224 | STUD | 8 |
| 26 | 13516624 | STUD | 2 |
| 27 | 250646 | VARIATOR CONTROL SOLENOID VALVE | 1 |
| 28 | 11197774 | SHER -Not as spare part- | 1 |
| 29 | 14433124 | SCREW -Not as spare part- -Replaced by 231617- | 1 |
| 29 | 231617 | SCREW | 1 |
| 30 | 11087376 | FLEXIBLE RING | 1 |
| 31 | 184681 | OIL PRESSURE CHECK VALVE | 1 |
| 32 | 180266 | OIL FILTER | 1 |
| 33 | 14305224 | SCREW | 1 |
| 34 | 11197774 | SHER | 1 |
| 35 | 177673 | PHASE SENSOR -Not as spare part now- -Replaced by 219349- | 2 |
| 35 | 219349 | PHASE SENSOR -Not as spare part now- -Replaced by 219866 and 219867- | 2 |
| 35 | 219866 | L.H. INDUCTION SHAFT PHASE SENSOR | 1 |
| 35 | 219867 | L.H. EXHAUST SHAFT PHASE SENSOR | 1 |
| 36 | 207422 | BRACKET | 1 |
| 37 | 16100814 | NUT | 2 |
| 38 | 11193874 | SHER | 2 |
| 39 | 15896214 | NUT | 22 |
| 40 | 11197774 | SHER | 22 |
| 41 | 220239 | PLUG | 1 |
| 42 | 220245 | GASKET | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
