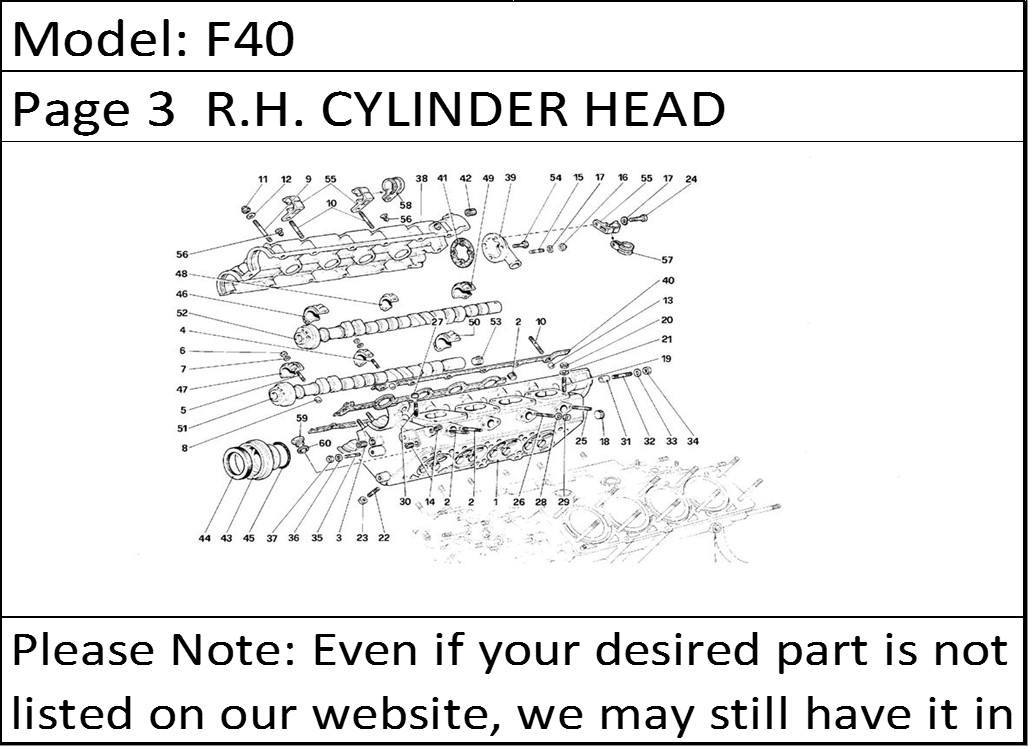

F40 Page 3 R.H. CYLINDER HEAD
Product Description
F40 Page 3 R.H. CYLINDER HEAD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 134221 | Right cylinder head, compl. | 1 |
| - | 134206 | Right exhaust camshaft complete | 1 |
| - | 120795 | Head cover, compl. -Not as spare parts -With assembly 134221 | 1 |
| - | 134204 | Right intake camshaft complete | 1 |
| 1 | 133746 | Right cylinder head -Not as spare parts - With assembly 134221 | 1 |
| 2 | 10269750 | Plug | 5 |
| 3 | 13526070 | Heli-coil | 1 |
| 4 | 102735 | Stud for intermediate caps | 12 |
| 5 | 102754 | Stud for outer caps | 8 |
| 6 | 15896214 | Nut | 20 |
| 7 | 11197770 | Washer | 20 |
| 8 | 102725 | Dowel | 20 |
| 9 | 13541624 | Stud | 10 |
| 10 | 13541724 | Stud | 4 |
| 11 | 100044 | Selflocking nut | 14 |
| 12 | 11197773 | Washer | 14 |
| 13 | 121907 | Dowel | 2 |
| 14 | 14326150 | Plug | 3 |
| 15 | 11500521 | Stud | 2 |
| 16 | 102741 | Nut | 2 |
| 17 | 12601279 | Washer | 4 |
| 18 | 10269650 | Plug | 1 |
| 19 | 13543324 | Stud | 8 |
| 20 | 16100821 | Nut | 10 |
| 21 | 11198074 | Washer | 10 |
| 22 | 144773 | Stud securing exhaust manifold | 8 |
| 23 | 138392 | Nut | 8 |
| 24 | 10902324 | Screw | 1 |
| 25 | 13541624 | Short stud | 2 |
| 26 | 13541724 | Long stud | 6 |
| 27 | 124946 | Spacer | 2 |
| 28 | 11197770 | Washer | 8 |
| 29 | 15896214 | Nut | 8 |
| 30 | 13543524 | Stud for fixing suction manifold (front part) | 2 |
| 31 | 102725 | Dowel | 2 |
| 32 | 13541124 | Stud for fixing calotte support | 2 |
| 33 | 11197773 | Washer | 2 |
| 34 | 15896214 | Nut | 2 |
| 35 | 13543324 | Stud | 3 |
| 36 | 12601379 | Washer | 3 |
| 37 | 16104411 | Nut | 3 |
| 38 | 120794 | Right head cover -With complet cover | 1 |
| 39 | 103808 | End cover with blow-by inlet | 1 |
| 40 | 150078 | Gasket | 1 |
| 41 | 151342 | Gasket | 1 |
| 42 | 120711 | Heli-coil | 3 |
| 43 | 144973 | Front cover -Valid after depletion of 117257 | 2 |
| 44 | 163987 | Sealing ring | 2 |
| 45 | 117275 | Sealing ring | 2 |
| 46 | 117039 | Front cap inlet side -With compl. cylinder head | 1 |
| 47 | 117040 | Front cap exhaust side -With compl. cylinder head | 1 |
| 48 | 126811 | Intermediate cap -With compl. cylinder head | 6 |
| 49 | 126813 | Rear cap inlet side -With compl. cylinder head | 1 |
| 50 | 126812 | Rear cap exhaust side -With compl. cylinder head | 1 |
| 51 | 134202 | Right exhaust camshaft -With assembly 134206 | 1 |
| 52 | 134200 | Right intake camshafth -With assembly 134204 | 1 |
| 53 | 10269750 | Plug | 1 |
| 54 | 10902221 | Screw | 1 |
| 55 | 129544 | Clip -For cars with catalyst Q.ty 1 | 3 |
| 56 | 14592487 | Plug | 2 |
| 57 | 10441790 | Bracket -Valid for cars with catalyst | 1 |
| 58 | 10441290 | Bracket -Valid for cars with catalyst | 1 |
| 59 | 127545 | Plug -Not for cars with catalyst | 4 |
| 60 | 10257060 | Gasket -Not for cars with catalyst | 4 |
