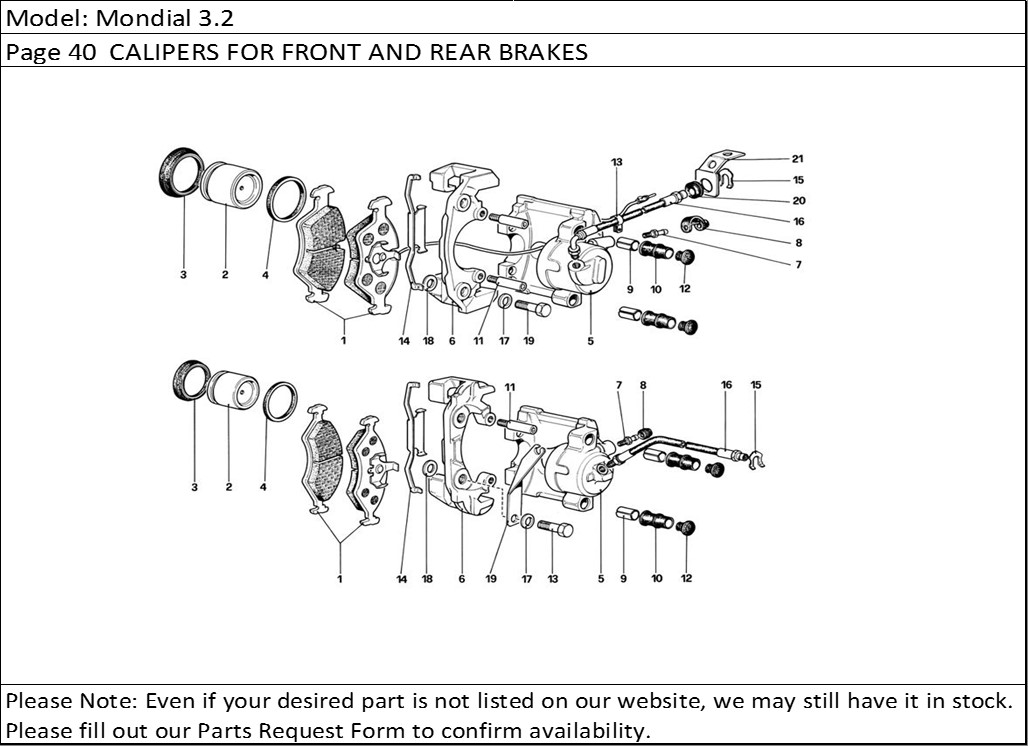

Mondial 3.2 Page 40 CALIPERS FOR FRONT AND REAR BRAKES
Product Description
Mondial 3.2 Page 40 CALIPERS FOR FRONT AND REAR BRAKES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 135705 | Set of FERODO 3416F rear padsFor Svezia - Rear Brake Calipers | 1 |
| 1 | 118589 | Set or FERIT 1/D 346GGRear Brake Calipers | 1 |
| 1 | 117182 | Right front caliper unit with pads | 1 |
| 1 | 135704 | Set of FERODO 3416 F front padsFor Svezia | 1 |
| 1 | 117184 | Right rear caliper unit with pads | 1 |
| 1 | 117183 | Left rear caliper unit with pads | 1 |
| 1 | 117181 | Left front caliper unit with pads | 1 |
| 1 | 118588 | Set of FERIT 1/D 346GG front pads | 1 |
| 2 | ATE | Brake cylinderFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 2 | - | Brake cylinderRear Brake Calipers | 2 |
| 2 | - | Brake cylinderFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 2 | ATE | Brake cylinderRear Brake Calipers | 2 |
| 3 | - | Sealing ringWith kit no. 116928 - Rear Brake Calipers | 2 |
| 3 | ATE | Sealing ringWith kit no. 116928 - Rear Brake Calipers | 2 |
| 3 | ATE | Sealing ringWith kit no. 116927 | 2 |
| 3 | - | Sealing ringWith kit no. 116927 | 2 |
| 4 | ATE | Stop ringRear Brake Calipers | 2 |
| 4 | ATE | Stop ringFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 4 | - | Stop ringRear Brake Calipers | 2 |
| 4 | - | Stop ringFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 5 | ATE | Cylinder bodyRear Brake Calipers | 2 |
| 5 | ATE | Cylinder bodyFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 5 | - | Cylinder bodyRear Brake Calipers | 2 |
| 5 | - | Cylinder bodyFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 6 | - | Support for caliperFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 6 | ATE | Support for caliperRear Brake Calipers | 2 |
| 6 | ATE | Support for caliperFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 6 | - | Support for caliperRear Brake Calipers | 2 |
| 7 | ATE | BleederRear Brake Calipers | 2 |
| 7 | - | BleederRear Brake Calipers | 2 |
| 7 | - | BleederFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 7 | ATE | BleederFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 8 | ATE | Bleeder capRear Brake Calipers | 2 |
| 8 | - | Bleeder capRear Brake Calipers | 2 |
| 8 | - | Bleeder capFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117 | 2 |
| 8 | ATE | Bleeder capFront Brake Calipers - Not suppled as spare parts but only with units 117181, 117182, 117183 and 117184 | 2 |
| 9 | - | Guide bushWith kit no. 116928 - Rear Brake Calipers | 2 |
| 9 | 116928 | Overhaul kit rear calipers | 2 |
| 9 | ATE | Guide bushWith kit no. 116927 - Front Brake Calipers | 2 |
| 9 | ATE | Guide bushWith kit no. 116928 - Rear Brake Calipers | 2 |
| 9 | - | Guide bushWith kit no. 116927 - Front Brake Calipers | 2 |
| 9 | 116927 | Overhaul kit front calipers | 1 |
| 10 | - | Dust protection ringWith kit no . 116928 - Rear Brake Calipers | 4 |
| 10 | - | Dust protection ringWith kit no. 116927 - Front Brake Calipers | 4 |
| 10 | ATE | Dust protection ringWith kit no. 116927 - Front Brake Calipers | 4 |
| 10 | ATE | Dust protection ringWith kit no . 116928 - Rear Brake Calipers | 4 |
| 11 | 95691540 | Threaded pinFront Brake Calipers | 4 |
| 11 | 95691540 | Threaded pinRear Brake Calipers | 4 |
| 12 | - | CapWith kit no. 116927 - Front Brake Calipers | 4 |
| 12 | ATE | CapWith kit no. 116928 - Rear Brake Calipers | 4 |
| 12 | ATE | CapWith kit no. 116927 - Front Brake Calipers | 4 |
| 12 | - | CapWith kit no. 116928 - Rear Brake Calipers | 4 |
| 13 | 40135402 | Clamp for pad cableFront Brake Calipers | 8 |
| 13 | 117194 | Caliper fixing screwRear Brake Calipers | 4 |
| 14 | 95691541 | Clip for caliperFront Brake Calipers | 2 |
| 14 | 95691542 | Clip for caliperRear Brake Calipers | 2 |
| 15 | 116374 | Clamp for hoseFront Brake Calipers | 2 |
| 15 | 116374 | Clamp for hoseRear Brake Calipers | 2 |
| 16 | 118100 | HoseRear Brake Calipers | 2 |
| 16 | 118101 | HoseFront Brake Calipers | 2 |
| 17 | 11198371 | WasherRear Brake Calipers | 4 |
| 17 | 106854 | WasherFront Brake Calipers | 4 |
| 18 | 117085 | Ditto, thickness 0,3 mm.Rear Brake Calipers | 4 |
| 18 | 117086 | Ditto, thickness 0,5 mm.Rear Brake Calipers | 4 |
| 18 | 108283 | Ditto, thickness 0,4 mm.Rear Brake Calipers | 4 |
| 18 | 107835 | Ditto, thickness 1 mm.Rear Brake Calipers | 4 |
| 18 | 117084 | Shim between caliper and hub holder 0,2 mm. ThicknessRear Brake Calipers | 4 |
| 18 | 108918 | Shim between caliper and stub axle, 0,2 mm. ThicknessFront Brake Calipers | 4 |
| 19 | 131869 | (A) Right bracketRear Brake Calipers | 1 |
| 19 | 108919 | Ditto, thickness 0,3 mm.Front Brake Calipers | 4 |
| 19 | 117193 | Screw fixing caliper to stub axleFront Brake Calipers | 4 |
| 19 | 131870 | (A) Left bracketRear Brake Calipers | 1 |
| 20 | 108920 | Ditto, thickness 0,5 mm.Front Brake Calipers | 4 |
| 20 | 40134801 | Fair-leadFront Brake Calipers | 2 |
| 21 | 108921 | Ditto, thickness 0,6 mm.Front Brake Calipers | 4 |
| 21 | 118102 | Bracket for hoseFront Brake Calipers | 2 |
| 22 | 108922 | Ditto, thickness 0,7 mm.Front Brake Calipers | 4 |
| 23 | 108923 | Ditto, thickness 0,8 mm.Front Brake Calipers | 4 |
| 24 | 108924 | Ditto, thickness 1 mm.Front Brake Calipers | 4 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
