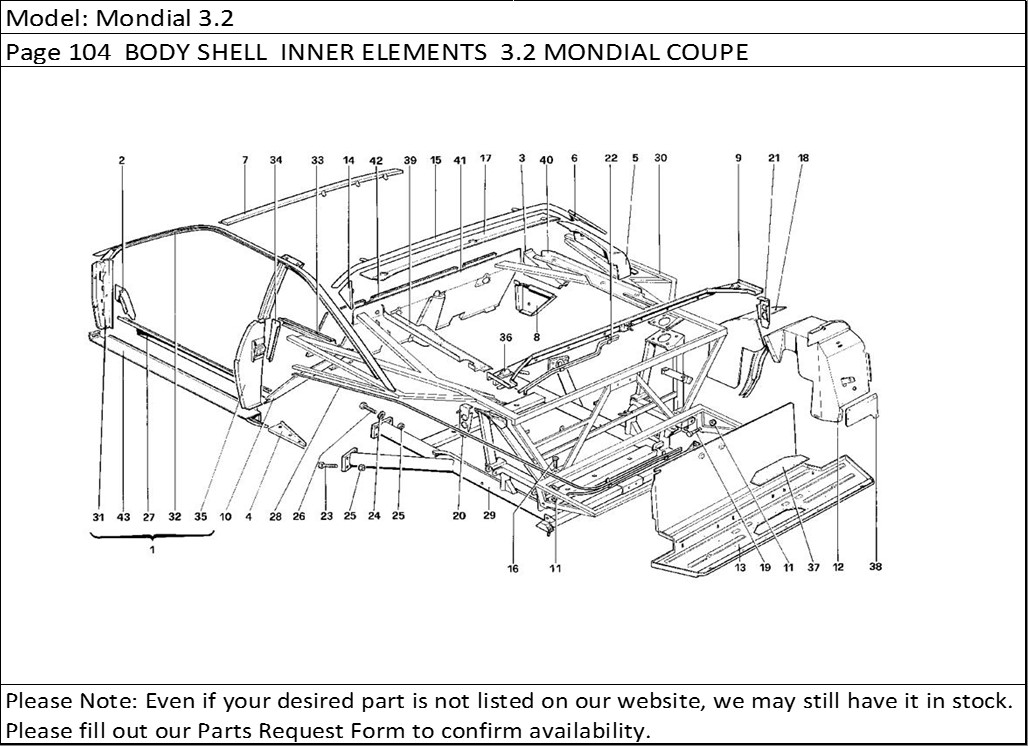

Mondial 3.2 Page 104 BODY SHELL INNER ELEMENTS 3.2 MONDIAL COUPE
Product Description
Mondial 3.2 Page 104 BODY SHELL INNER ELEMENTS 3.2 MONDIAL COUPE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60977800 | L.H. door opening with rail - GD | 1 |
| 1 | 60890600 | R.H. door opening with rail TA | 1 |
| 1 | 61432100 | L.H. door opening with rail - RHD - TA | 1 |
| 1 | 60890700 | L.H. door opening with rail - US - SA | 1 |
| 1 | 60983000 | L.H. door opening with rail - LHD - TANot for US - SA | 1 |
| 1 | 60767300 | L.H. door opening with rail - LHDNot for US -SA | 1 |
| 1 | 60977700 | R.H. door operning with rail | 1 |
| 2 | 119435 | Footrest - LHD | 1 |
| 3 | 60829200 | L.H. reinforcement - US - AUS - SA | 1 |
| 3 | 60829100 | R.H. reinforcement - US - AUS - SA | 1 |
| 4 | 116014 | Support for L.H. rear body side | 1 |
| 4 | 116013 | Support for R.H. rear body side | 1 |
| 5 | 60951500 | R.H. covering over rear window | 1 |
| 5 | 61030300 | R.H. covering over rear window T.A. | 1 |
| 5 | 61030400 | L.H. covering over rear window T.A. | 1 |
| 5 | 60951600 | L.H. covering over rear window | 1 |
| 6 | 60910300 | Support for rear R.H. belts T.A. | 1 |
| 6 | 60781000 | Support for rear R.H. belts | 1 |
| 7 | 60723200 | Front rib | 1 |
| 8 | 60622200 | L.H. bracket for front belts retractor | 1 |
| 8 | 60622100 | R.H. bracket for front belts retractor | 1 |
| 9 | 61089000 | Gasket supportNot for US - AUS - SA - C8 | 1 |
| 9 | 61427200 | Gasket support - US - AUS - SA | 1 |
| 9 | 62461400 | Gasket support - C8 | 1 |
| 10 | 60967900 | R.H. stiffening - US - SA | 1 |
| 10 | 60967800 | R.H. stiffening - US - SA | 1 |
| 10 | 60695400 | R.H. stiffening - Not for US -SA | 1 |
| 10 | 60695500 | L.H. stiffening - Not for US - SA | 1 |
| 11 | 12575811 | Nut | 4 |
| 12 | 61971800 | L.H. rear wheelhouse - AUS | 1 |
| 12 | 61732100 | L.H. rear wheelhouseNot for US - AUS - SA | 1 |
| 12 | 61893600 | L.H. rear wheelhouse - TA | 1 |
| 12 | 61732000 | R.H. rear wheelhouseNot for US - SA - AUS | 1 |
| 12 | 61794300 | R.H. rear wheelhouse - US - AUS - SA | 1 |
| 12 | 61738400 | L.H. rear wheelhouse - US - SA | 1 |
| 13 | 61721800 | Section bonnetNot for USA - S - AUS - C7 | 1 |
| 13 | 61742700 | Section rear bonnet - US - AUS - SA | 1 |
| 13 | 62349400 | Section bonnet - C7 | 1 |
| 14 | 60910400 | L.H. support for rear belts - TA | 1 |
| 14 | 60781100 | L.H. support for rear belts | 1 |
| 15 | 60828700 | Rear rib - TA | 1 |
| 15 | 61093400 | Rear rib | 1 |
| 16 | 11255921 | Screw | 2 |
| 17 | 61266000 | Botton plate for rear rib - TA | 1 |
| 17 | 60616400 | Botton plate for rear rib | 1 |
| 18 | 61158600 | R.H. front section - Not for C6 | 1 |
| 18 | 61800600 | L.H. front section - Not for C6 | 1 |
| 18 | 61980800 | L.H. front section - C6 | 1 |
| 18 | 61265600 | R.H. front section - C6 | 1 |
| 19 | 15977521 | Screw | 2 |
| 20 | 60695100 | L.H. bracket | 1 |
| 21 | 60697200 | L.H. and R.H. bracket | 2 |
| 22 | 60787300 | Cable duct for engine bonnet | 1 |
| 23 | 15540621 | Screw | 8 |
| 24 | 12646921 | Washer | 8 |
| 25 | 16105011 | Selflocking nut | 16 |
| 26 | 15540521 | Screw | 8 |
| 27 | 60602800 | Inner R.H. covering of rail | 1 |
| 27 | 61082600 | Inner L.H. covering of rail | 1 |
| 28 | 61204500 | Cable duct for trunk bonnet | 1 |
| 29 | 128013 | (B) Removable frame - RHD Not for AUS | 1 |
| 29 | 130504 | (B) Removable frame - AUS | 1 |
| 29 | 136470 | (A) Removable frame - US - SA | 1 |
| 29 | 136471 | (A) Removable frame RHD - Not for AUS | 1 |
| 29 | 128021 | (B) Removable frame - LHDNot for US - SA - C7 | 1 |
| 29 | 128024 | (B) Removable frame - US - SA - C7 | 1 |
| 29 | 136472 | (A) Removable frame - AUS | 1 |
| 29 | 135849 | Removable frame - C8 | 1 |
| 29 | 132568 | (A) Removable frame - Not for C8 | 1 |
| 30 | 128022 | Rear frameNot for AUS - US - SA - C7 - C8 | 1 |
| 30 | 126631 | Rear frame - US - SA - C7 - AUS - C8 | 1 |
| 31 | 60645500 | L.H. seat for door hingeNot for US - SA | 1 |
| 31 | 60645400 | R.H. seat for door hinge | 1 |
| 31 | 60903500 | L.H. seat for door hinge - US - SA | 1 |
| 32 | 60932200 | L.H. rail - LHD | 1 |
| 32 | 60932100 | R.H. rail - RHD | 1 |
| 32 | 60944300 | R.H. rail - LHD | 1 |
| 32 | 60998600 | L.H. rail - LHD - TA | 1 |
| 32 | 60998500 | R.H. rail - LHD - TA | 1 |
| 32 | 60945200 | L.H. rail - RHD | 1 |
| 33 | 60921600 | Lower stiffening for rear L.H. window | 1 |
| 33 | 60921700 | Lower stiffening for rear R.H. window | 1 |
| 34 | 60658300 | Stiffening angle piece for L.H. fender | 1 |
| 34 | 60658400 | Stiffening angle piece for R.H. fender | 1 |
| 35 | 60621300 | R.H. post. for rearfender | 1 |
| 35 | 60621400 | L.H. post. for rearfender | 1 |
| 36 | 60523700 | Fixed hinge for rear bonnet | 2 |
| 37 | 60810000 | Cover | 1 |
| 38 | 61816200 | R.H. rear gravel | 1 |
| 38 | 61816100 | L.H. rear gravel | 1 |
| 39 | 61820000 | L.H. cover | 1 |
| 40 | 60754500 | R.H. cover | 1 |
| 41 | 60841000 | Section passenger compart/engineUS - SA -C7 - AUS | 1 |
| 42 | 60873100 | Insulation - US - SA - C7 - AUS | 1 |
| 43 | 60542800 | Framework R.H. - See table 101 part. 45 | 1 |
| 43 | 60542900 | Framework L.H. - See table 101 part. 45 | 1 |
| 44 | 62433900 | R.H. cover - C8 | 1 |
