Mondial 8 Page 9 FUEL PUMP AND PIPES
Product Description

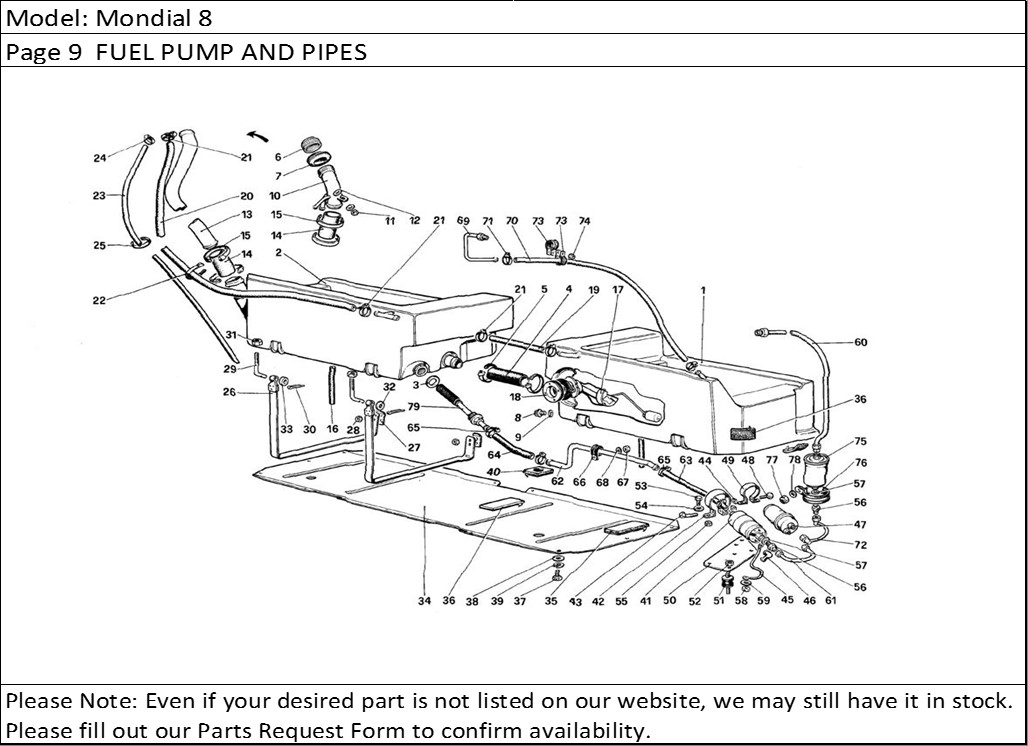

Mondial 8 Page 9 FUEL PUMP AND PIPES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 115663 | Serbatoio carburante Dx. | 1 |
| 2 | 115664 | Serbatoio carburante Sx. | 1 |
| 3 | 102645 | Guarnizione filtro carburante | 1 |
| 4 | 116270 | Manicotto collegamento serbatoi | 1 |
| 5 | 108785 | Fascetta per manicotto | 2 |
| 6 | 113401 | Tappo per bocchettone | 1 |
| 7 | 101465 | Guarnizione per bocchettone | 1 |
| 8 | 10300771 | Tappo scarico carburante | 1 |
| 9 | 10278650 | Guarnizione tappo scarico | 1 |
| 10 | 116406 | Bocchettone di scarico serbatoi | 1 |
| 11 | 12574221 | Dado autobloccante | 1 |
| 12 | 109684 | Rondella | 2 |
| 13 | 116405 | Tubo collegamento bocchettone a serbatoio | 1 |
| 14 | 114278 | Manicotto | 2 |
| 15 | 12174790 | Fascetta | 4 |
| 16 | 116587 | Tubo scolo acqua | 2 |
| 17 | 116045 | Comando indicatore livello carburante | 1 |
| 18 | 116012 | Ghiera fissaggio comando | 1 |
| 19 | 114916 | Tubo collegamento sfiato serbatoi | 1 |
| 20 | 116852 | Tubo sfiato da serbatoio a bocchettone | 1 |
| 21 | 100507 | Fascetta | 4 |
| 22 | 105550 | Fascetta | 1 |
| 23 | 116851 | Tubo sfiato bocchettone | 1 |
| 24 | 102721 | Fascetta | 1 |
| 25 | 40135402 | Fascetta | 5 |
| 26 | 115732 | Nastro fiss. serbatoi | 4 |
| 27 | 115734 | Piastrina fiss. nastro | 4 |
| 28 | 12575411 | Dado autobloccante | 8 |
| 29 | 12311271 | Tirante per nastro | 4 |
| 30 | 10796401 | Copiglia | 4 |
| 31 | 16104121 | Dado autobloccante | 4 |
| 32 | 10519601 | Rondella | 2 |
| 33 | 13605911 | Distanziale | 2 |
| 34 | 116565 | Paratia protezione serbatoi | 1 |
| 35 | 116566 | Spessore esterno | 4 |
| 36 | 115330 | Spessore interno e sui serbatoi | 18 |
| 37 | 10902121 | Vite | 13 |
| 38 | 12643701 | Rondella tranciata | 13 |
| 39 | 106850 | Rondella elastica | 13 |
| 40 | 116585 | Guarnizione | 2 |
| 41 | 113976 | Pompa benzina | 1 |
| 42 | 113673 | Fascetta tenuta pompa benzina | 1 |
| 43 | 10377311 | Vite registro tensione fascetta | 1 |
| 44 | 14089311 | Dado quadro | 2 |
| 45 | 115153 | Cavetto massa | 1 |
| 46 | 107003 | Cappuccetto protezione rnorsetti | 2 |
| 47 | 113978 | Accumulatore | 1 |
| 48 | 10376111 | Vite registro tensione fascetta | 1 |
| 49 | 113674 | Fascetta tenuta accumulatore | 1 |
| 50 | 115547 | Supporto pompa benzina accumulatore | 1 |
| 51 | 102947 | Tassello elastico | 3 |
| 52 | 12574221 | Dado autobloccante | 3 |
| 53 | 10902121 | Vite fissaggio fascette | 4 |
| 54 | 10519421 | Rondella | 2 |
| 55 | 12574221 | Dado autojaloccante | 4 |
| 56 | 109797 | Raccordo | 2 |
| 57 | 113910 | Guarnizione | 2 |
| 58 | 15896221 | Dado fissaggio massa | 1 |
| 59 | 10571570 | Rondella elastica | 1 |
| 60 | 115529 | Tubo benzina dal filtro al dosatore | 1 |
| 61 | 115532 | Tubo benzina pompa ad accumulatore | 1 |
| 62 | 116539 | Tubo benzina dal filtro alla pompa | 1 |
| 63 | 116777 | Manicotto lato pompa | 1 |
| 64 | 116776 | Manicotto lato filtro | 1 |
| 65 | 12179590 | Fascetta | 4 |
| 66 | 10441590 | Fascetta | 2 |
| 67 | 12574211 | Dado autobloccante | 2 |
| 68 | 10519401 | Rondella | 2 |
| 69 | 115543 | Tubo riflusso benzina | 1 |
| 70 | 116767 | Tubo in gomma riflusso benzina | 1 |
| 71 | 104879 | Fascetta | 2 |
| 72 | 115548 | Tubo dall''accumulatore al filtro | 1 |
| 73 | 10441190 | Fascetta | 4 |
| 74 | 12574211 | Dado autobloccante | 2 |
| 75 | 178647 | Fuel FilterUse on Exhaustion of 115738 | 2 |
| 75 | 115738 | Filtro carburante | 1 |
| 76 | 115140 | Staffa con guaina fissaggio filtro | 1 |
| 77 | 16104121 | Dado autobloccante | 1 |
| 78 | 13550301 | Rondella tranciata | 1 |
| 79 | 116404 | Filtro carburante | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
