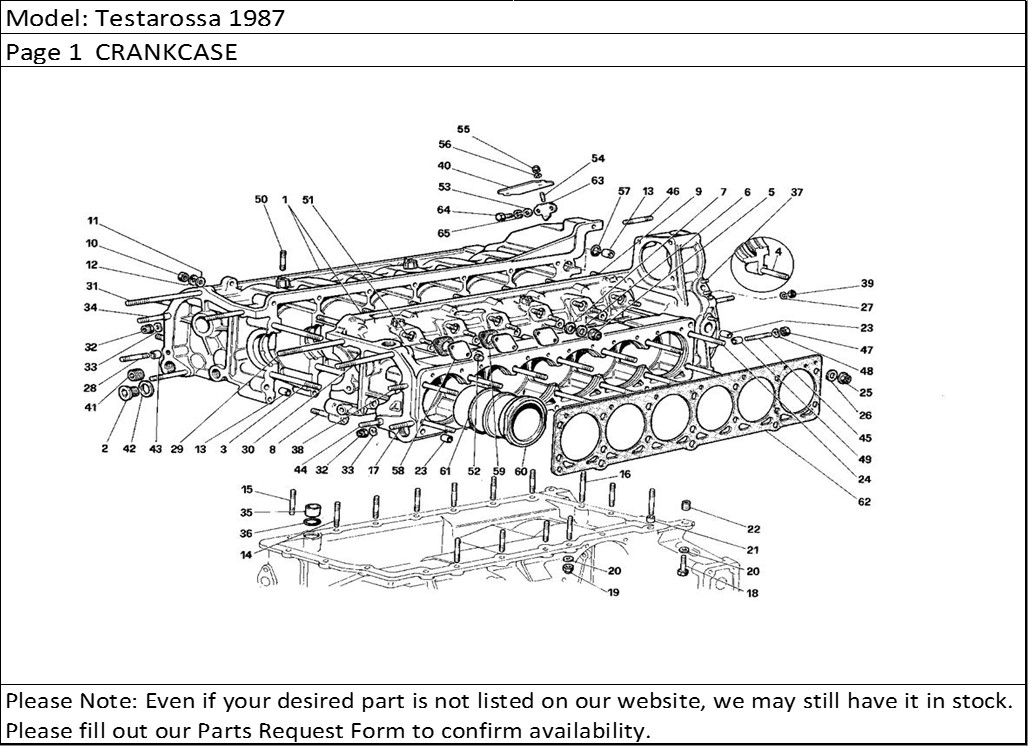

Testarossa 1987 Page 1 CRANKCASE
Product Description
Testarossa 1987 Page 1 CRANKCASE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | GSET001 | Set of Gaskets | 1 |
| 1 | 122170 | Left semi-crankcaseAs part of complete | 1 |
| 1 | 121431 | Crankcase, complete | 1 |
| 1 | 122169 | Right semi-crankcaseAs part of complete | 1 |
| 2 | 10304611 | Plug | 2 |
| 3 | 102687 | Semi-crankcase securing stud | 14 |
| 4 | 109539 | Semi-crankcase securing stud | 1 |
| 5 | 102693 | Nut | 15 |
| 6 | 102694 | Washer | 15 |
| 7 | 106855 | Washer | 15 |
| 8 | 12546630 | Semi-crankcase securing stud | 3 |
| 9 | 102690 | Semi-crankcase securing stud | 1 |
| 9 | 102689 | Semi-crankcase securing stud | 9 |
| 10 | 12164721 | Nut | 13 |
| 11 | 102695 | Washer | 13 |
| 12 | 106853 | Washer | 13 |
| 13 | 102692 | Semi-crankcase centering dowel | 2 |
| 14 | 13449621 | Stud securing crankcase to gearbox | 12 |
| 15 | 13449921 | Stud | 1 |
| 16 | 13450121 | Stud | 2 |
| 17 | 13543821 | Stud | 1 |
| 18 | 11306921 | Bolt | 2 |
| 19 | 107314 | Nut | 2 |
| 19 | 12575621 | Nut | 13 |
| 20 | 12601471 | Washer | 18 |
| 21 | 100052 | Dowel | 1 |
| 22 | 13526070 | Threaded insert | 2 |
| 23 | 124382 | Dowel | 4 |
| 24 | 102691 | Cyl. heads securing studs | 28 |
| 25 | 100101 | Nut | 28 |
| 26 | 100100 | Washer | 28 |
| 27 | 106849 | Washer | 4 |
| 28 | 13543621 | Stud on RH dowel | 1 |
| 29 | 13970921 | Stud | 1 |
| 30 | 13970421 | Stud | 1 |
| 31 | 13970521 | Stud | 1 |
| 32 | 101139 | Nut | 10 |
| 33 | 12601371 | Washer | 10 |
| 34 | 13544321 | Stud | 3 |
| 35 | 121201 | Dowel | 1 |
| 36 | 123263 | Seal ring | 1 |
| 37 | 13539021 | Probes securing stud | 4 |
| 38 | 13543421 | Stud | 1 |
| 39 | 15896411 | Nut | 4 |
| 40 | 102697 | Cover for flywheel inspection slot | 1 |
| 41 | 14326150 | Plug for lubricating ports. | 1 |
| 41 | 14326050 | Plug for lubricating ports | 2 |
| 41 | 10269850 | Plug for lubricating ports | 1 |
| 42 | 10264560 | Gasket | 2 |
| 43 | 102704 | Dowel | 2 |
| 44 | 13543721 | Stud on LH dowel | 1 |
| 45 | 13544221 | Stud on dowel | 2 |
| 46 | 13544121 | Stud | 3 |
| 47 | 16100811 | Nut | 5 |
| 48 | 12601371 | Washer | 5 |
| 49 | 102704 | Dowel | 2 |
| 50 | 13541821 | Stud for metering devices support | 4 |
| 51 | 11500021 | Stud | 24 |
| 52 | 100044 | Nut | 24 |
| 53 | 10519301 | Washer | 2 |
| 54 | 11500021 | Stud for cover of flywheel inspection slot | 2 |
| 55 | 100044 | Nut | 2 |
| 56 | 12601271 | Washer | 2 |
| 57 | 102743 | Seal ring | 1 |
| 58 | 102698 | Cover | 12 |
| 59 | 102699 | Gasket | 12 |
| 60 | 119853 | Cylinder liner | 12 |
| 61 | 110021 | Seal ring | 12 |
| 62 | 120480 | Gasket PN 125045 on exhaustion | 2 |
| 63 | 124676 | Plate with timing mark | 1 |
| 64 | 10977621 | Bolt | 2 |
| 65 | 106849 | Washer | 2 |
