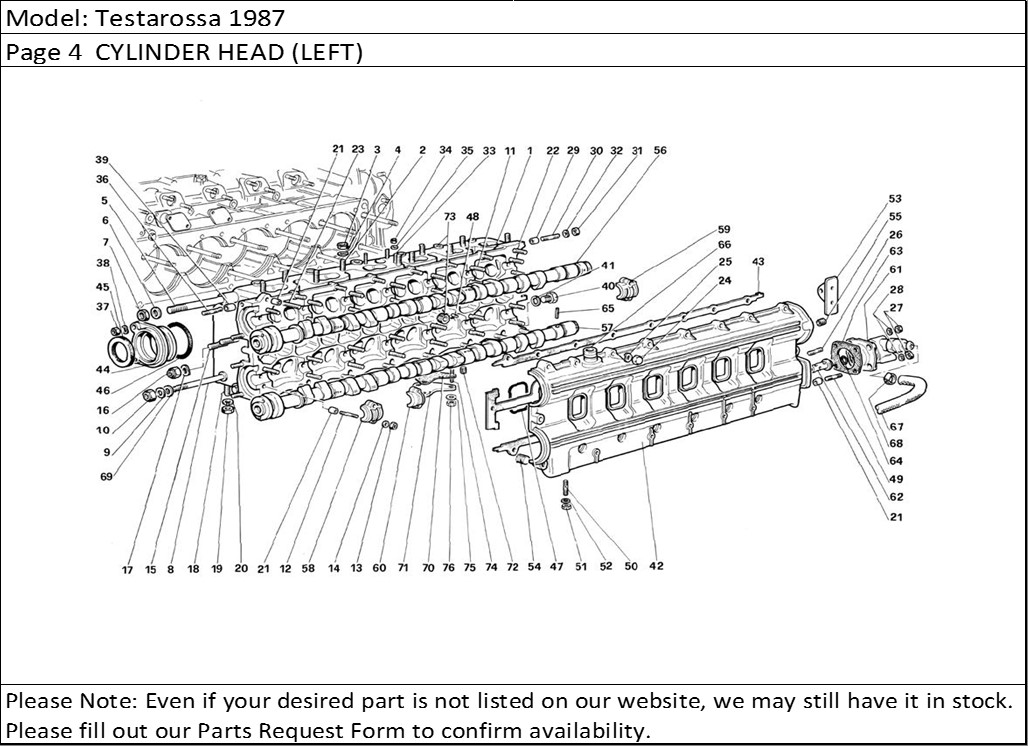

Testarossa 1987 Page 4 CYLINDER HEAD (LEFT)
Product Description
Testarossa 1987 Page 4 CYLINDER HEAD (LEFT)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 123055 | Left cylinder head With cyl. Head no. 123065 | 1 |
| 2 | 12354521 | Stud | 10 |
| 3 | 16100811 | Nut | 10 |
| 4 | 11194071 | Washer | 10 |
| 5 | 13953121 | Stud | 1 |
| 6 | 12601471 | Washer | 1 |
| 7 | 12575611 | Nut | 1 |
| 8 | 13970321 | Stud | 1 |
| 9 | 12604471 | Washer | 1 |
| 10 | 16104411 | Nut | 1 |
| 11 | 102735 | Stud Inner caps | 24 |
| 12 | 102754 | Stud Outer caps | 4 |
| 13 | 15896211 | Nut | 28 |
| 14 | 11197773 | Washer | 28 |
| 15 | 13543421 | Stud Belt stretcher | 2 |
| 16 | 101139 | Nut | 2 |
| 17 | 12601371 | Washer | 2 |
| 18 | 13543521 | Stud | 12 |
| 19 | 105938 | Nut PN. 124525 in alternative | 12 |
| 20 | 106852 | WasherFor nut PN. 105938 | 12 |
| 21 | 102725 | Dowel | 30 |
| 22 | 13541321 | Stud for covers | 16 |
| 23 | 13541421 | Stud on dowel | 2 |
| 24 | 100044 | Cap nut | 18 |
| 25 | 12601271 | Washer | 18 |
| 26 | 11500521 | Vacuum pump securing stud | 2 |
| 27 | 102741 | Nut | 2 |
| 28 | 11197771 | Washer | 2 |
| 29 | 102725 | Dowel for distributor cap support | 2 |
| 30 | 13541121 | Stud | 2 |
| 31 | 15896211 | Nut | 2 |
| 32 | 11197773 | Washer | 2 |
| 33 | 13541021 | Stud | 3 |
| 34 | 102741 | Nut | 3 |
| 35 | 12601271 | Washer | 3 |
| 36 | 13541121 | Stud | 4 |
| 37 | 102741 | Nut | 4 |
| 38 | 12601271 | Washer | 4 |
| 39 | 102725 | Dowel | 4 |
| 40 | 10300740 | Water drain plug | 1 |
| 41 | 10257060 | Gasket | 1 |
| 42 | 121447 | Left cyl. head cover With cyl. head until engine A1 (no. 391) and U6 (no.154) | 1 |
| 42 | 128796 | Left cyl.head cover With cyl. head, starting engine A1 (no. 392) and U6 (no. 155) | 1 |
| 43 | 121127 | Gasket For cover PN. 121447 | 1 |
| 43 | 127228 | Gasket For cover PN. 128796 | 1 |
| 44 | 121116 | Front cover | 2 |
| 45 | 114639 | Seal ring PN. 128260 in alternative | 2 |
| 46 | 117036 | Seal ring | 2 |
| 47 | 127649 | Seal ring For cover PN. 128796 | 6 |
| 48 | 10330210 | Dowel For cover PN. 121447 | 2 |
| 49 | 11500421 | Vacuum pump securing stud | 2 |
| 50 | 11500121 | Stud | 2 |
| 51 | 15896211 | Nut | 2 |
| 52 | 12601271 | Washer | 2 |
| 53 | 124594 | Bracket | 1 |
| 54 | 10269750 | Plug | 3 |
| 55 | 13525470 | Heli-coil | 1 |
| 56 | 123103 | Left intake camshaft, completeFor A1, until engine no. 257 | 1 |
| 56 | 124033 | Left intake camshaft, completeFor A1, starting from engine no. 258, B1 - US • CH - SA | 1 |
| 57 | 123107 | Left exhaust camshaft, complete | 1 |
| 58 | 114499 | Front cap With complete cylinder head | 2 |
| 59 | 114497 | Rear capWith complete cylinder head | 2 |
| 60 | 117043 | Intermediate capWith complete cylinder head, after exhaustion use no. 126811 | 10 |
| 61 | 122737 | Vacuum pump | 1 |
| 62 | 121054 | Coupling | 1 |
| 63 | 122781 | Gasket | 1 |
| 64 | 123065 | Left cylinder head, complete | 1 |
| 64 | 105661 | 0-ring | 1 |
| 65 | 13938070 | Pin (? 4) | 1 |
| 65 | 13940270 | Pin (? 5) | 1 |
| 65 | 13940270 | Pin (? 5) | 1 |
| 66 | 102705 | Union | 1 |
| 67 | 125031 | 3-way union | 1 |
| 68 | 12179590 | Clamp | 1 |
| 69 | 112761 | Washer | 1 |
| 70 | 127143 | Gasket For A1 - B1 | 12 |
| 71 | 127834 | Cover For A1 - B1 | 12 |
| 72 | 14326150 | Plug 8 x 1,25 | 3 |
| 73 | 127635 | Plug | 2 |
| 74 | 13541021 | Stud | 6 |
| 75 | 106850 | Washer | 6 |
| 76 | 115201 | Nut | 6 |
