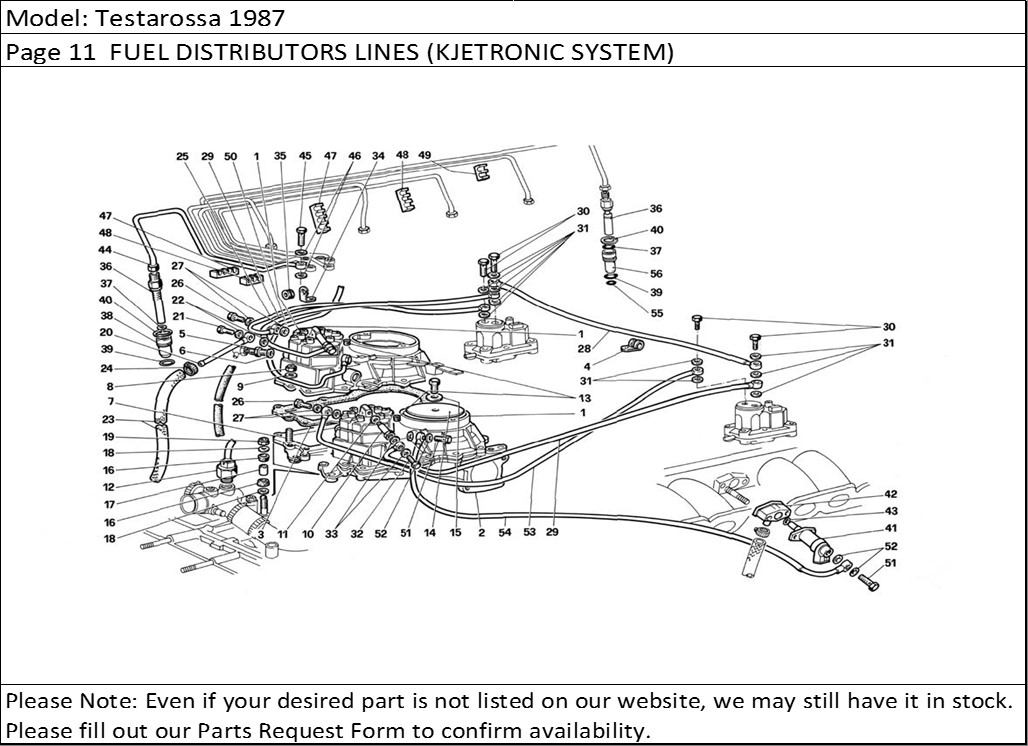

Testarossa 1987 Page 11 FUEL DISTRIBUTORS LINES (KJETRONIC SYSTEM)
Product Description
Testarossa 1987 Page 11 FUEL DISTRIBUTORS LINES (KJETRONIC SYSTEM)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 123611 | Metering device | 2 |
| 1 | 121461 | Support for metering devices, compl. | 1 |
| 2 | 123117 | Support for metering devices With assy. P.M. 121461 | 1 |
| 3 | 121088 | Gasket | 1 |
| 4 | 10441590 | Small bracket with sheathing | 2 |
| 5 | 115498 | Union with filter. | 2 |
| 6 | 11270160 | Gasket | 2 |
| 7 | 13541021 | Stud | 24 |
| 8 | 12574211 | Nut | 23 |
| 9 | 12601271 | Washer | 24 |
| 10 | 113660 | Union for fuel delivery to regulator | 2 |
| 11 | 14330260 | Washer | 2 |
| 12 | 113980 | Thermo-time switch | 1 |
| 13 | 115650 | Protection cap for ifling adjusting screw | 2 |
| 14 | 124408 | Air sensor plate | 2 |
| 15 | 120809 | Supporting washer | 2 |
| 16 | 123134 | Pad | 8 |
| 17 | 123135 | Distanche tube | 4 |
| 18 | 106744 | Spring washer | 8 |
| 19 | 12574211 | Nut | 4 |
| 20 | 125124 | Swinging assy, of fuel return from L.H. metering device | 1 |
| 20 | 125123 | Swinging assy, of fuel return from R.H. metering device | 1 |
| 21 | 111644 | Union | 2 |
| 22 | 113910 | Gasket | 4 |
| 23 | 116772 | L.H. return hose | 1 |
| 23 | 126800 | R.H. return hose | 1 |
| 24 | 12179490 | Clamp | 4 |
| 25 | 123728 | Shaped pipe from R.H. warm-up regulator | 1 |
| 26 | 113664 | Union | 4 |
| 27 | 14330260 | Union | 8 |
| 28 | 123736 | Shaped pipe for connection of | 1 |
| 29 | 123738 | Fuel to warm-up regulator delivery pipe | 2 |
| 30 | 114018 | Union | 2 |
| 31 | 10260160 | Gasket | 6 |
| 32 | 113664 | Union | 2 |
| 33 | 14330260 | Gasket | 4 |
| 34 | 123744 | Distributor lines supporting bracket | 2 |
| 35 | 10396580 | Wire carrier | 2 |
| 36 | 113975 | Injector | 12 |
| 37 | 113570 | Seal ring | 12 |
| 38 | 113309 | Injector holding bushUntil engine No. | 12 |
| 39 | 101031 | Garter ring | 12 |
| 40 | 103326 | Stop ring | 12 |
| 41 | 113979 | Cold start injector | 2 |
| 42 | 121056 | Injector connecting union | 2 |
| 43 | 103039 | Seal ring | 2 |
| 44 | 123753 | Shaped fuel from metering device to injector of no. 9 cylinder | 1 |
| 44 | 123750 | Shaped fuel from metering device to injector of no. 6 cylinder | 1 |
| 44 | 123755 | Shaped fuel from metering device to injector of no. 11 cylinder | 1 |
| 44 | 123748 | Shaped fuel from metering device to injector of no. 4 cylinder | 1 |
| 44 | 123746 | Shaped fuel from metering device to injector of no. 2 cylinder | 1 |
| 44 | 123745 | Shaped fuel from metering device to injector of no. 1 cylinder | 1 |
| 44 | 123751 | Shaped fuel from metering device to injector of no. 7 cylinder | 1 |
| 44 | 123747 | Shaped fuel from metering device to injector of no. 3 cylinder | 1 |
| 44 | 123756 | Shaped fuel from metering device to injector of no. 12 cylinder | 1 |
| 44 | 123754 | Shaped fuel from metering device to injector of no. 10 cylinder | 1 |
| 44 | 123749 | Shaped fuel from metering device to injector of no. 5 cylinder | 1 |
| 45 | 113664 | Union | 12 |
| 46 | 14330260 | Copper washer | 24 |
| 47 | 115595 | 4-way pipe supporting clamp | 4 |
| 48 | 113896 | 3-way pipe supporting clamp | 8 |
| 49 | 117279 | 2-way pipe supporting clamp | 2 |
| 50 | 123781 | Shaped fuel pipe for R.H. cold start | 1 |
| 51 | 113664 | Union | 4 |
| 52 | 14330260 | Gasket | 8 |
| 53 | 125225 | Shaped pipe from L.H. warm-up regulator | 1 |
| 54 | 123783 | Shaped fuel pipe from L.H. cold start | 1 |
| 55 | 101030 | Garter ring For bush PN 123936 | 12 |
| 56 | 123936 | Injector holding bush After exhaustion of bush PN 113309 | 12 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
