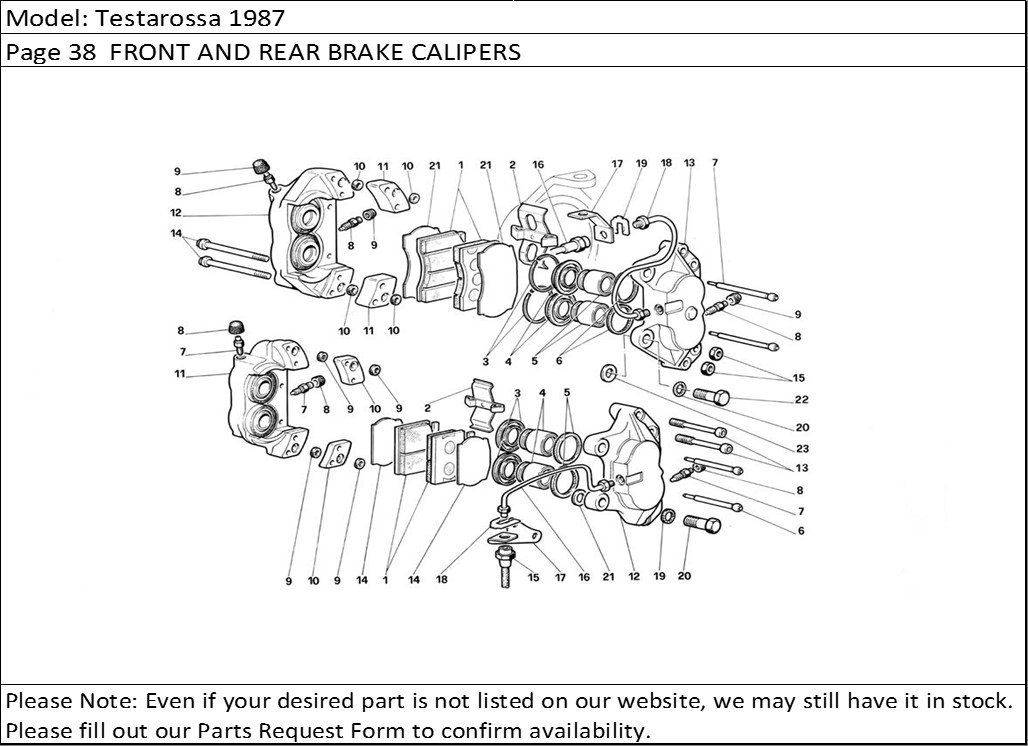

Testarossa 1987 Page 38 FRONT AND REAR BRAKE CALIPERS
Product Description
Testarossa 1987 Page 38 FRONT AND REAR BRAKE CALIPERS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 125666 | Brake pad | 4 |
| 1 | 125665 | Brake pad | 4 |
| 2 | 95691531 | Front caliper overhaul kit (one) | 2 |
| 2 | ATE | Pad pressure spring | 2 |
| 2 | 95691532 | Rear caliper overhaul kitOne | 1 |
| 2 | - | Pad pressure spring | 2 |
| 3 | - | Brake cylinder protection ring With kit P.N. 95691532 | 8 |
| 3 | - | Stop ringWith kit P.N. 95691531 | 8 |
| 3 | ATE | Stop ringWith kit P.N. 95691531 | 8 |
| 3 | ATE | Brake cylinder protection ring With kit P.N. 95691532 | 8 |
| 4 | - | Brake cylinder | 8 |
| 4 | ATE | Brake cylinder protection ring With kit no. 95691531 | 8 |
| 4 | ATE | Brake cylinder | 8 |
| 5 | ATE | Seal ring on cylinder With kit P.N. 95691532 | 8 |
| 5 | ATE | Brake cylinder | 8 |
| 5 | - | Brake cylinder | 8 |
| 6 | - | Seal ring on cylinder With kit no. 95691531 | 8 |
| 6 | ATE | Seal ring on cylinder With kit no. 95691531 | 8 |
| 6 | - | Pin for pads With kit P.N. 95691533 | 4 |
| 6 | ATE | Pin for pads With kit P.N. 95691533 | 4 |
| 7 | - | Bleeder | 6 |
| 7 | ATE | Pin for pads With kit no. 95691531 | 4 |
| 7 | ATE | Bleeder | 6 |
| 8 | ATE | Bleeder cap | 6 |
| 8 | - | Bleeder | 6 |
| 8 | ATE | Bleeder | 6 |
| 9 | ATE | Bleeder cap | 6 |
| 9 | ATE | Seal ring on spacer | 8 |
| 9 | - | Bleeder cap | 6 |
| 10 | - | Seal ring on spacer | 8 |
| 10 | ATE | Seal ring on spacer | 8 |
| 10 | ATE | Spacer | 4 |
| 11 | - | Brake cylinder outer body | 2 |
| 11 | ATE | Brake cylinder outer body | 2 |
| 11 | ATE | Spacer | 4 |
| 12 | ATE | Brake cylinder inner body | 2 |
| 12 | - | Brake cylinder inner body | 2 |
| 12 | ATE | Brake cylinder outer body | 8 |
| 13 | - | Brake cylinder body securing bolt | 4 |
| 13 | ATE | Brake cylinder inner body | 2 |
| 13 | ATE | Brake cylinder body securing bolt | 4 |
| 14 | - | Brake cylinder bosy securing bolt | 4 |
| 14 | 105054 | Plate | 4 |
| 14 | ATE | Brake cylinder bosy securing bolt | 4 |
| 15 | - | Nut | 4 |
| 15 | 116373 | Rear calipers connecting hose | 4 |
| 15 | ATE | Nut | 4 |
| 16 | 116373 | Front calipers connecting hose | 4 |
| 16 | 101395 | Pipe from caliper to hose | 4 |
| 17 | 125706 | Bracket on LH hub holder | 1 |
| 17 | 125705 | Bracket on RH hub holder | 1 |
| 17 | 116396 | Bracket fixing hoses to stub axle | 2 |
| 18 | 116374 | Hose clamp | 4 |
| 18 | 106671 | Pipe from caliper to hose | 4 |
| 19 | 116374 | Clamp | 4 |
| 19 | 101255 | Washer | 4 |
| 20 | 101255 | Washer | 4 |
| 20 | 101264 | Caliper securing bolt | 4 |
| 21 | 108919 | Shim - 0.3 mm, thick (if required) | 4 |
| 21 | 108922 | Shim - 0.7 mm, thick (if required) | 4 |
| 21 | 128869 | Plate | 4 |
| 21 | 108920 | Shim - 0.5 mm, thick (if required) | 4 |
| 21 | 108923 | Shim - 0.8 mm, thick (if required) | 4 |
| 21 | 108918 | Shim - 0.2 mm, thick (if required) | 4 |
| 21 | 108921 | Shim - 0.6 mm, thick (if required) | 4 |
| 21 | 108924 | Shim - 1 mm, thick (if required) | 4 |
| 22 | 125763 | R.H. brake caliper | 1 |
| 22 | 101248 | Caliper securing bolt | 4 |
| 22 | 125764 | L.H. brake caliper | 1 |
| 23 | 108922 | Shim - P.7 mm. thick (if required) | 4 |
| 23 | 108923 | Shim - 0.8 mm. thick (if required) | 4 |
| 23 | 108919 | Shim - 0.3 mm. thick (if required) | 4 |
| 23 | 125765 | R.H brake caliper | 1 |
| 23 | 108920 | Shim ? 0.5 mm. thick (if required) | 4 |
| 23 | 108924 | Shim - 1 mm. thick (if required) | 2 |
| 23 | 108921 | Shim - 0.6 mm. thick (if required) | 4 |
| 23 | 108918 | Shim - 0.2 mm. thick (if required) | 4 |
| 23 | 125766 | L.H. brake caliper | 1 |
| 23 | 108920 | Shim ? 0.5 mm. thick (if required) | 4 |
