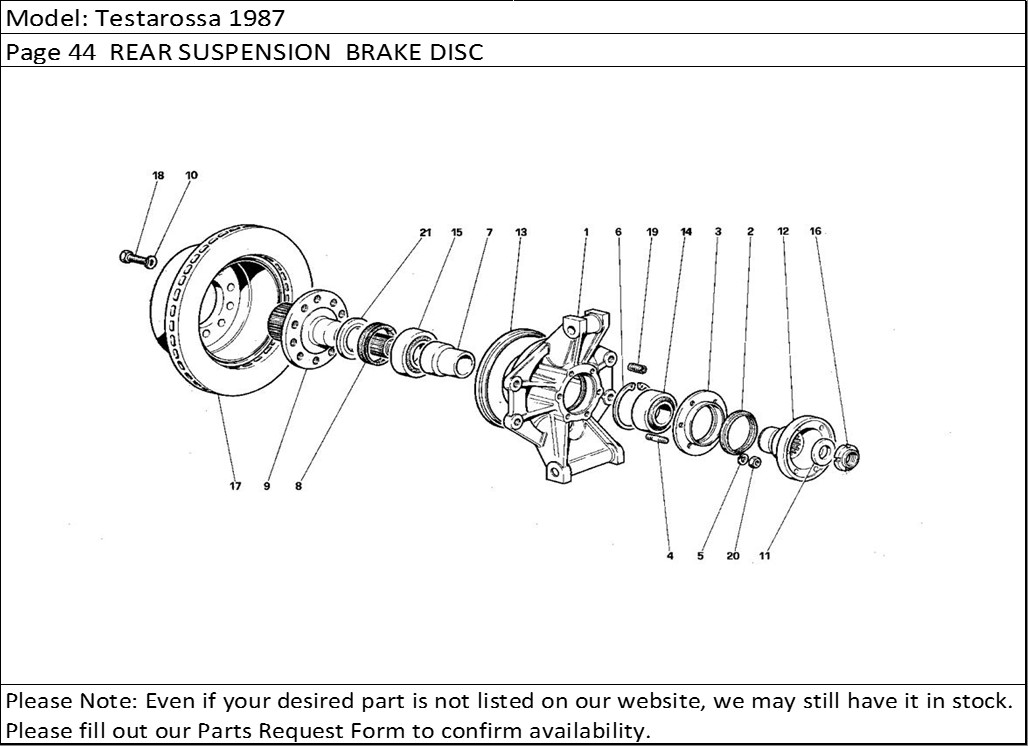

Testarossa 1987 Page 44 REAR SUSPENSION BRAKE DISC
Product Description
Testarossa 1987 Page 44 REAR SUSPENSION BRAKE DISC
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 125973 | Hub holder | 2 |
| 2 | 115968 | Seal ring | 2 |
| 3 | 125976 | Bearing | 2 |
| 4 | 13543321 | Stud | 12 |
| 5 | 10516671 | Washer | 12 |
| 6 | 11061575 | Seeger ring for bearingUp to vehicle no. | 2 |
| 7 | 110578 | Bearing spacer | 2 |
| 8 | 110579 | Centrifugal ring on shaft with hub | 2 |
| 9 | 125739 | Shaft with right hub | 1 |
| 9 | 125738 | Shaft with left hub | 1 |
| 10 | 106853 | Washer | 20 |
| 11 | 105511 | Washer for axle shaft flange | 2 |
| 12 | 119372 | Axle shaft flange on wheel hub | 2 |
| 13 | 101546 | Water shield | 2 |
| 14 | 125934 | Inner bearing | 2 |
| 15 | 125935 | Outer bearing | 2 |
| 16 | 102289 | Ring nut | 2 |
| 17 | 125735 | Brake disc | 2 |
| 18 | 125736 | Disc securing screw | 20 |
| 19 | 13524570 | Heli-coil | 4 |
| 20 | 16100821 | Nut | 12 |
| 21 | 118190 | Spacer | 2 |
