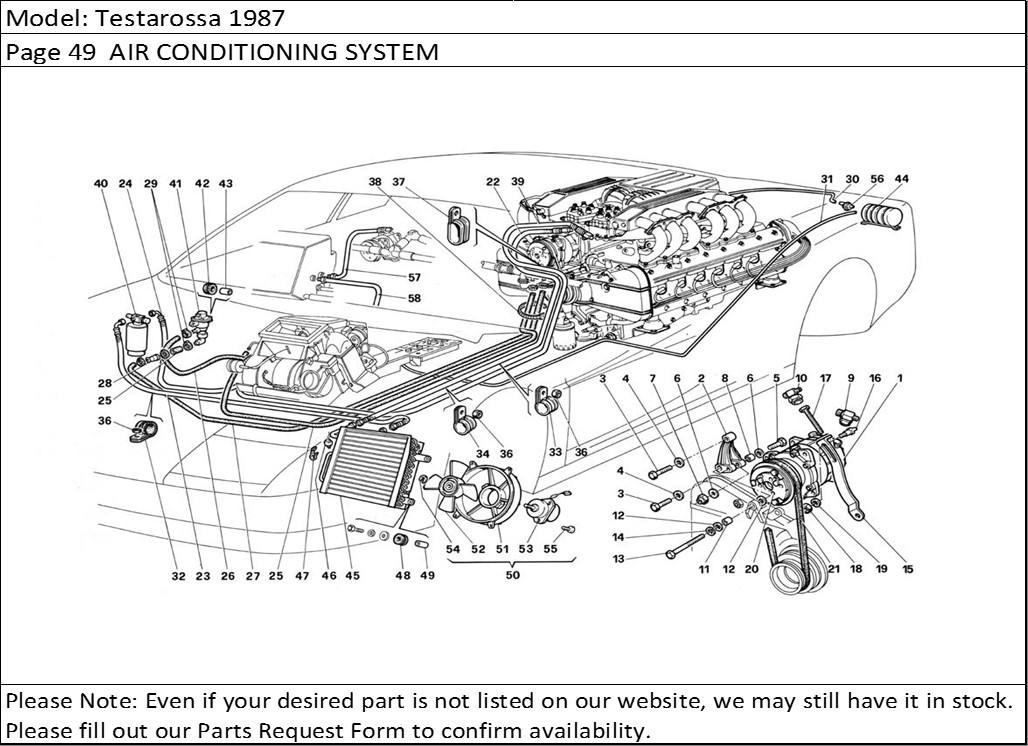

Testarossa 1987 Page 49 AIR CONDITIONING SYSTEM
Product Description
Testarossa 1987 Page 49 AIR CONDITIONING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 123205 | Compressor | 1 |
| 2 | 122963 | Compressor support | 1 |
| 3 | 121537 | Screw | 2 |
| 4 | 12601471 | Washer | 2 |
| 5 | 11288021 | Screw | 1 |
| 6 | 14496601 | Washer | 2 |
| 7 | 12574511 | Nut | 1 |
| 8 | 123180 | Spacer | 1 |
| 9 | 124233 | Intake unionUntil engine no. ......…, and for US | 1 |
| 9 | 127786 | Intake unionStarting from engine no. ......…, and not for US | 1 |
| 10 | 126928 | Outlet union | 1 |
| 11 | 121100 | Bushing on crankcase cover | 1 |
| 12 | 103025 | Washer | 2 |
| 13 | 15541721 | Screw | 1 |
| 14 | 106854 | Washer | 1 |
| 15 | 123181 | Tension adjusting bracket | 1 |
| 16 | 123188 | Pin for adjusting bracket | 1 |
| 17 | 125668 | Tension adjusting screw | 1 |
| 18 | 16104111 | Nut | 1 |
| 19 | 14496501 | Washer | 1 |
| 20 | 123813 | Electromagnetic joint | 1 |
| 21 | 122973 | Compressor belt | 1 |
| 22 | 124022 | Hose from compressor to condenser | 1 |
| 23 | 124023 | Hose from condenser to filter LHD | 1 |
| 23 | 125441 | Hose from condenser to filterRHD | 1 |
| 24 | 124024 | Hose from filter to cooler LHD | 1 |
| 24 | 130918 | Hose from filter to cooler RHD | 1 |
| 25 | 124027 | Hose from engine to heater | 1 |
| 26 | 125445 | Hose from heater to valve RHD | 1 |
| 26 | 61615000 | Hose from heater to valve LHD | 1 |
| 27 | 124029 | Hose from valve to engine | 1 |
| 28 | 124030 | Metal undersize ring | 1 |
| 29 | 12179990 | Clamp | 5 |
| 30 | 124031 | Hose from engine to vacuum reservoirNot for US | 1 |
| 30 | 127455 | Hose from engine to vacuum reservoirFor US | 1 |
| 31 | 124032 | Hose from reservoir to | 1 |
| 32 | 10441490 | Hose fastening bracket | 2 |
| 33 | 10441890 | Hose fastening bracket | 2 |
| 34 | 119463 | Hose fastening bracket | 1 |
| 35 | 125003 | Sleeve | 1 |
| 36 | 12574211 | Nut | 4 |
| 37 | 61712500 | Hose fastening bracket | 1 |
| 38 | 125527 | Hose supporting clamp | 2 |
| 39 | 124670 | Hose, evaporator - compressorFor intake union no 124333 | 1 |
| 39 | 127787 | Hose from evaporator to compressorFor intake union No. 127786 - Not for US | 1 |
| 40 | 114730 | Dryer filter Until exhausted | 1 |
| 40 | 129102 | Pressostat For filter 129101 | 1 |
| 40 | 129101 | Dryer filter After exhaustion of P.N. 114730 | 1 |
| 41 | 61079000 | Electromagnetic valve | 1 |
| 42 | 103549 | Vibration-damping bushing | 2 |
| 43 | 103550 | Spacer | 2 |
| 44 | 61642700 | Vacuum reservoir complete with valve | 1 |
| 45 | 61400300 | Condenser | 1 |
| 46 | 61047900 | Bimetallic thermocontact | 1 |
| 47 | 60815000 | Clip | 1 |
| 48 | 103549 | Vibration-damping bushing | 4 |
| 49 | 103550 | Spacer | 4 |
| 50 | 131647 | Fan assembly For B1 - U7 S7 - C7 | 1 |
| 50 | 124040 | Fan assembly For A1 - U6 - S6 - C6 | 1 |
| 51 | 60870300 | Air conveyor | 1 |
| 52 | 122953 | Fan | 1 |
| 53 | 117546 | Motor | 1 |
| 54 | 11087876 | Stop ring | 1 |
| 55 | 123298 | Screw | 3 |
| 56 | 61653800 | Single-action valve | 1 |
| 57 | 125851 | Hose exchanger-compressor For US | 1 |
| 58 | 125852 | Hose evaporator-exchanger For US | 1 |
