Testarossa 1987 Page 118 INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (NOT FOR U.S. VERSION)
Product Description
Testarossa 1987 Page 118 INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (NOT FOR U.S. VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

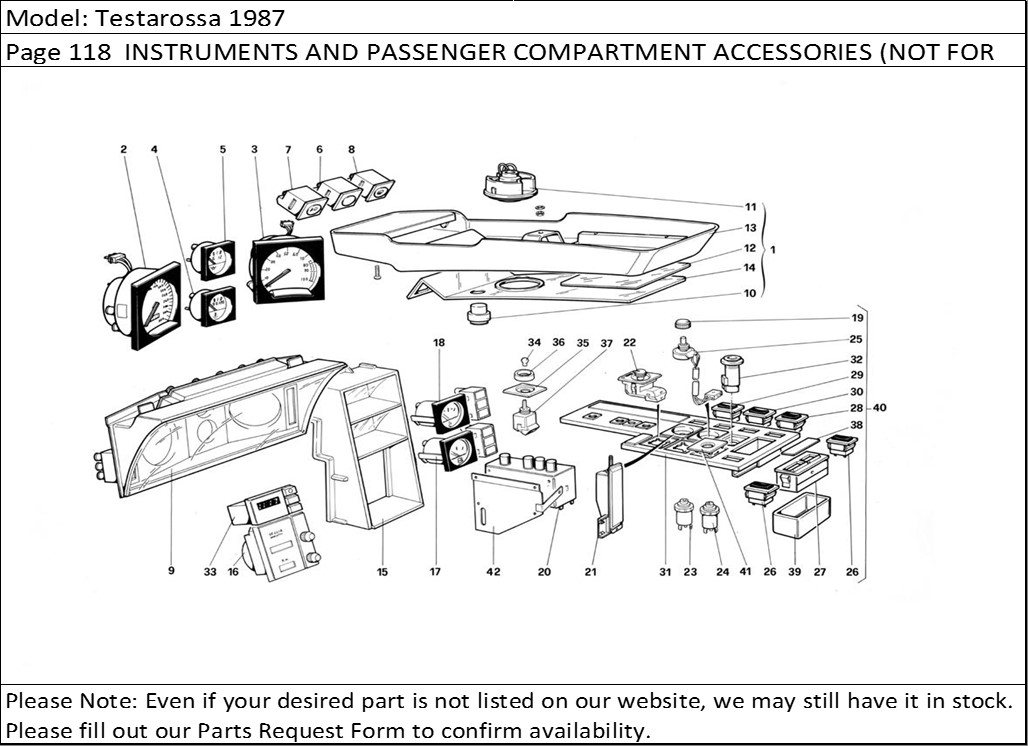

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61548300 | Upper console, complete Starting from car 67079 | 1 |
| 1 | 61526600 | Upper console, complete Until car 67077 | 1 |
| 1 | 61548300 | Upper console, complete | 1 |
| 2 | 132783 | Speedometer For C7 | 1 |
| 2 | 119734 | Electronic mileage odometer | 1 |
| 2 | 119729 | SpeedometerNot for C7 | 1 |
| 3 | 119728 | Rev counter | 1 |
| 3 | 131462 | Rev counter | 1 |
| 4 | 119730 | Water temperature gauge LHD Not for US | 1 |
| 4 | 119817 | Water temperature gauge For RHD and US | 1 |
| 5 | 119732 | Oil pressure gauge LHDNot for US | 1 |
| 5 | 119737 | Oil pressure gaugeFor RHD and US - Not for J | 1 |
| 5 | 119737 | Oil pressure gauge | 1 |
| 6 | 121609 | SA Rear fog light switch Not for US - SA | 1 |
| 6 | 120644 | Dummy switch | 1 |
| 7 | 121607 | Fog light switch | 1 |
| 8 | 121608 | Heated rear window switch | 1 |
| 9 | 123361 | Central panel assembly For SA | 1 |
| 9 | 132781 | Central panel assembly For C7 | 1 |
| 9 | 131460 | Central panel with instruments | 1 |
| 9 | 123361 | Central panel assembly For LHD - Not for U6 - SA J - CDN - ZA - C7 | 1 |
| 9 | 129700 | Central panel assembly For J | 1 |
| 9 | 123651 | Central panel assembly For RHD | 1 |
| 9 | 123647 | Central panel assembly For U6 | 1 |
| 9 | 123653 | Central panel assembly For ZA | 1 |
| 9 | 123649 | Central panel assembly For CDN | 1 |
| 10 | 61526300 | Push button spot | 2 |
| 11 | 61526400 | Spot for passenger compartment light | 1 |
| 12 | 61526500 | Opal cover on roof console | 1 |
| 13 | 61565200 | Upper console Until car No 67077 | 1 |
| 13 | 61548400 | Upper console Starting from car No 67079 | 1 |
| 13 | 61548400 | Upper console | 1 |
| 14 | 61526700 | Transparent cover | 1 |
| 15 | 123648 | Console, complete For U6 | 1 |
| 15 | 123652 | Console, complete For GB | 1 |
| 15 | 127475 | Console, complete For SA | 1 |
| 15 | 123645 | Console, complete for LHD Not for GB - US - SA - ZA - C7 - J | 1 |
| 15 | 123650 | Console, complete For CDN | 1 |
| 15 | 131461 | Console with instruments | 1 |
| 15 | 132782 | Console, complete For C7 | 1 |
| 15 | 129554 | Console, complete For J | 1 |
| 15 | 123654 | Console, complete For ZA | 1 |
| 16 | 119752 | Total odometer (Kms)Not for C7 | 1 |
| 16 | 132785 | Total odometer (Kms) For C7 | 1 |
| 16 | 119756 | Total odometer (Miles) | 1 |
| 17 | 119733 | Fuel level gaugeNot for US CDN 86 - J - C7 | 1 |
| 17 | 119819 | Fuel level gauge | 1 |
| 17 | 119819 | Fuel level gaugeFor US - COM 86 - J - C7 | 1 |
| 18 | 119818 | Oil temperature gauge For RHD-US-CDN, after exhaustion use PN 130837 | 1 |
| 18 | 119731 | Oil temperature gauge LHD Not for US -CON, after exhaustion use PN 130836 | 1 |
| 19 | 124079 | Knob | 2 |
| 20 | 124075 | Air conditioner push button unit | 1 |
| 21 | 131473 | Air conditioner control button unit | 1 |
| 21 | 131473 | Air conditioner control button unitForB1 | 1 |
| 21 | 124078 | Air conditioner control button unitNot for B1 | 1 |
| 22 | 61557900 | External rear view mirrors switchStarting from car 67079 | 1 |
| 23 | 124086 | Switch for vehicle hazard lights | 1 |
| 24 | 124087 | Parking lights switch | 1 |
| 25 | 61078700 | Potentiometer for A.C. temperature | 1 |
| 25 | 61078700 | Potentiometer for air conditioner | 1 |
| 26 | 124085 | Switch for feet air | 2 |
| 27 | 124082 | Adjuster for feet air | 1 |
| 28 | 124077 | Push button opening glove box | 1 |
| 29 | 131472 | Switch for R.H. window control | 1 |
| 29 | 131472 | Switch for RH window controlStarting from car 67079 | 1 |
| 29 | 61319200 | Switch for right window controlUntil car 67077 | 1 |
| 30 | 61319100 | Switch for left window controlUntil car 67077 | 1 |
| 30 | 131471 | Switch for LH window controlStarting from car 67079 | 1 |
| 31 | 131470 | Controls housing panel | 1 |
| 31 | 124074 | Control housing panel Until car 67077 - Not for S6 | 1 |
| 31 | 131470 | Control housing panel Starting from car 67079 | 1 |
| 31 | 61559800 | Control housing panel For S6 | 1 |
| 32 | 61503900 | Cigarette lighter | 1 |
| 33 | 131466 | Clock | 1 |
| 33 | 123646 | Clock | 1 |
| 34 | 124081 | Joy-stick knob Until car No 67077 | 2 |
| 35 | 124080 | Frame Until car No 67077 | 2 |
| 35 | 124088 | Frame | 2 |
| 36 | 60730900 | Ring nut Until car No 67077 | 2 |
| 37 | 61526900 | Joy-stick for outside mirror Until car No 67077 - For S6 q=2 | 1 |
| 37 | 124083 | Box | 1 |
| 38 | 124084 | Display filter | 1 |
| 39 | 124083 | Housing | 1 |
| 40 | 131468 | Panel, complete Starting from car no 67079 | 1 |
| 40 | 61560000 | Panel, complete For S6 | 1 |
| 40 | 61527100 | Panel, complete Until car No 67077 -Not for S6 | 1 |
| 41 | 124088 | Frame | 2 |
| 42 | 124076 | Support | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
