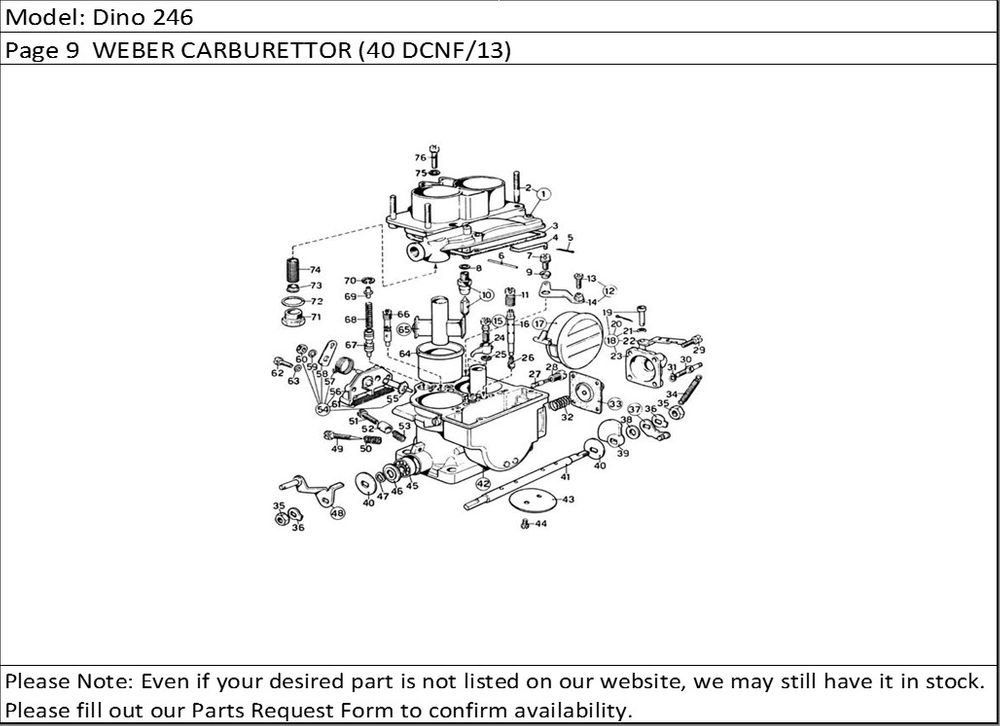

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 95180006 | Cafburatore (WEBER 40 DCNF 13)Dal N. 04830 quantita 2 | 3 |
| - | 236E18184 | Carburatore lato frizione WEBER 40 DCNF 20)Vale dal N. 04830 | 1 |
| 1 | 95180520 | Coperchio carburatore comprendente: | 1 |
| 2 | 64955.007 | Vite prigioniera | 4 |
| 3 | 95180513 | Guarnizione per coperchio | 1 |
| 4 | 61280.056 | Tirantino comando awiamento | 1 |
| 5 | 32610.006 | Copiglia | 1 |
| 6 | 52000.01 | Perno fulcro gaileggiante | 1 |
| 7 | 64700.012 | Vite per leva comando a squadro | 1 |
| 8 | 95180537 | Guarnizione per valvola a spillo | 1 |
| 9 | 12775.01 | Boccola per leva a squadro | 1 |
| 10 | 95180557 | Valvola a spillo | 1 |
| 11 | 95180567 | Getto aria di freno | 1 |
| 12 | 45096.02 | Leva a squadro | 1 |
| 13 | 64615.004 | Vite fissaggio filo | 1 |
| 14 | 45096.019 | Leva | 1 |
| 15 | 95180631 | Valvola mandata pompa | 1 |
| 16 | 61450.224 | Tubetto emulsionatore | 1 |
| 17 | 95180590 | Gaileggiante | 1 |
| 18 | 32486.013 | Coperchio pompa | 1 |
| 19 | 52010.033 | Perno | 1 |
| 20 | 32610.006 | Copiglia | 1 |
| 21 | 55530.006 | Rosetta di frizione | 1 |
| 22 | 45089.001 | Leva comando pompa | 1 |
| 23 | 32484.001 | Cdperchio pompa | 1 |
| 24 | 95180531 | Getto pompa | 1 |
| 25 | 95180536 | Guarnizione per getto pompa | 1 |
| 26 | 95180566 | Getto principale | 2 |
| 27 | 95180607 | Getto minimo | 2 |
| 28 | 95180608 | Portagetto minimo | 2 |
| 29 | 64700.004 | Vite fissaggio coperchio | 3 |
| 30 | 52025.001 | Perno aggancio molla | 1 |
| 31 | 55525.007 | Rosetta elastica | 1 |
| 32 | 95180610 | Molla caricarrtento pompa | 1 |
| 33 | 95180516 | Membrana pompa | 1 |
| 34 | 95180546 | Molla ritorno alberino | 1 |
| 35 | 34710.003 | Dado fissaggio alberino | 2 |
| 36 | 95180549 | Rosetta di sicurezza | 2 |
| 37 | 95180543 | Leva aggancio molla | 1 |
| 38 | 55510.006 | Rosetta piana | 1 |
| 39 | 95180577 | Camma comando pompa | 1 |
| 40 | 55555.005 | Rosetta | 2 |
| 41 | 10005.211 | Alberino | 1 |
| 42 | - | Corpo carburatore | 1 |
| 43 | 64005.02 | Valvola a farfalla | 2 |
| 44 | 64520.027 | Vite fissaggio valvola | 4 |
| 45 | 32650.001 | Cuscinetto a sfere | 2 |
| 46 | 58000.002 | Scodellino premi cuscinetto | 2 |
| 47 | 55530.005 | Rosetta di fusione | 2 |
| 48 | 45034.046 | Leva comando farfalle | 1 |
| 49 | 95180576 | Vite registro miscela minimo | 2 |
| 50 | 95180573 | Molla | 2 |
| 51 | 95180574 | Vite registro farfalle | 1 |
| 52 | 95180575 | Boccola distanziale | 1 |
| 53 | 95180573 | Molla | 1 |
| 54 | 95180606 | Coperchio awiamento | 1 |
| 55 | 10085.009 | Albero comando awiamento | 1 |
| 56 | 32556.012 | Coperchio awiamento | 1 |
| 57 | 47610.043 | Molla ritorno leva | 1 |
| 58 | 45025.089 | Leva | 1 |
| 59 | 55525.01 | Rosetta elastica | 1 |
| 60 | 34715.01 | Dado | 1 |
| 61 | 37000.016 | Elemento filtrante | 1 |
| 62 | 64700.004 | Vite fissaggio coperchio | 2 |
| 63 | 55510.038 | Rosetta piana | 2 |
| 64 | 95180604 | Diffusore | 2 |
| 65 | 31966.002 | Centratore | 2 |
| 66 | 41205.151 | Getto awiamento | 2 |
| 67 | 95180605 | Valvola awiamento | 2 |
| 68 | 95180592 | Molla per valvola awiamento | 2 |
| 69 | 95180593 | Boccola guida molla | 2 |
| 70 | 95180594 | Anello elastico di ritegno | 2 |
| 71 | 61002.01 | Tappo filtro | 1 |
| 72 | 41530.024 | Guarnizione per tappo filtro | 1 |
| 73 | 61060.001 | Tappo per elemento filtrante | 1 |
| 74 | 95180511 | Elemento filtrante | 1 |
| 75 | 55510.034 | Rosetta piana | 4 |
| 76 | 64700.005 | Vite fissaggio coperchio carburatore | 4 |
| 1 | 9688 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Leather- -Leather- -Valid for | 1 |
| 1 | 9689 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
