Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

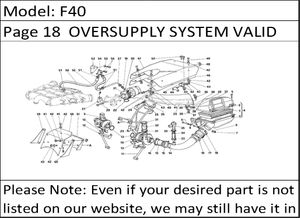

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 115743 | Air filter | 2 |
| 2 | 143422 | R.H. cover | 1 |
| 2 | 143429 | L.H. cover | 1 |
| 3 | 143420 | Holder -Not as spare parts- -With assembly 143419 | 1 |
| 3 | 143427 | Holder -Not as spare parts- -With assembly 143420 | 1 |
| 4 | 143419 | R.H. air inlet assy | 1 |
| 4 | 143426 | L.H. air inlet assy | 1 |
| 5 | 10376077 | Screw | 8 |
| 6 | 11030421 | Screw | 4 |
| 7 | 102948 | Nut | 4 |
| 8 | 12643724 | Washer | 8 |
| 9 | 164358 | R.H. turbocharger | 1 |
| 10 | 164359 | L.H. turbocharger | 1 |
| 11 | 145379 | Turbo support L.H. | 1 |
| 12 | 145378 | Turbo support R.H. | 1 |
| 13 | 123385 | Seal ring | 4 |
| 14 | 136425 | L.H. air inlet pipe | 1 |
| 14 | 136426 | R.H. air inlet pipe | 1 |
| 15 | 136424 | Hose | 2 |
| 16 | 12177190 | Clamp | 4 |
| 17 | 124449 | Hose | 2 |
| 18 | 122890 | Clamp | 4 |
| 19 | 120748 | Union | 1 |
| 20 | 11270260 | Gasket | 1 |
| 21 | 120750 | W.G. membrane | 1 |
| 21 | 143828 | W.G. valve | 1 |
| 22 | 121098 | Gasket | 1 |
| 23 | 144454 | Bracket | 1 |
| 24 | 10978321 | Screw | 3 |
| 25 | 12637824 | Washer | 3 |
| 26 | 127493 | Washer | 3 |
| 27 | 145368 | Bracket | 1 |
| 28 | 122461 | Screw | 4 |
| 29 | 62731700 | Air conveyor | 1 |
| 30 | 145369 | Bracket | 1 |
| 31 | 13000690 | Clamp | 4 |
| 32 | 136423 | Hose | 2 |
| 33 | 13000490 | Clamp | 4 |
| 34 | 136303 | Hose | 2 |
| 35 | 129564 | Valve | 2 |
| 36 | 145377 | Bracket | 1 |
| 37 | 15896214 | Nut | 4 |
| 38 | 12646601 | Washer | 4 |
| 39 | 127494 | Washer | 4 |
| 40 | 144352 | Bracket | 1 |
| 41 | 145371 | Screw | 6 |
| 42 | 145375 | Washer | 28 |
| 43 | 120749 | Nut | 15 |
| 44 | 145372 | Bracket | 2 |
| 45 | 145370 | Bracket | 2 |
| 46 | 145366 | Lower screen | 1 |
| 47 | 144221 | Upper screen | 1 |
| 48 | 144354 | Spacer | 6 |
| 49 | 145373 | Screw | 6 |
| 50 | 148147 | Rubber pipe from solenoid valve | 1 |
| 51 | 12179690 | Clamp | 4 |
| 52 | 148148 | Rubber pipe from W.G. | 1 |
| 53 | 144345 | Bracket | 1 |
| 54 | 135965 | Valve | 1 |
| 55 | 10615379 | Washer | 2 |
| 56 | 14304021 | Screw | 3 |
| 57 | 137642 | Hard pipe | 1 |
| 58 | 144222 | Front screen | 1 |
| 59 | 144223 | R.H. listel | 1 |
| 60 | 144224 | L.H. listel | 1 |
| 61 | 144152 | Shield | 1 |
| 62 | 144353 | Bracket | 2 |
| 1 | 9688 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Leather- -Leather- -Valid for | 1 |
| 1 | 9689 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
