Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

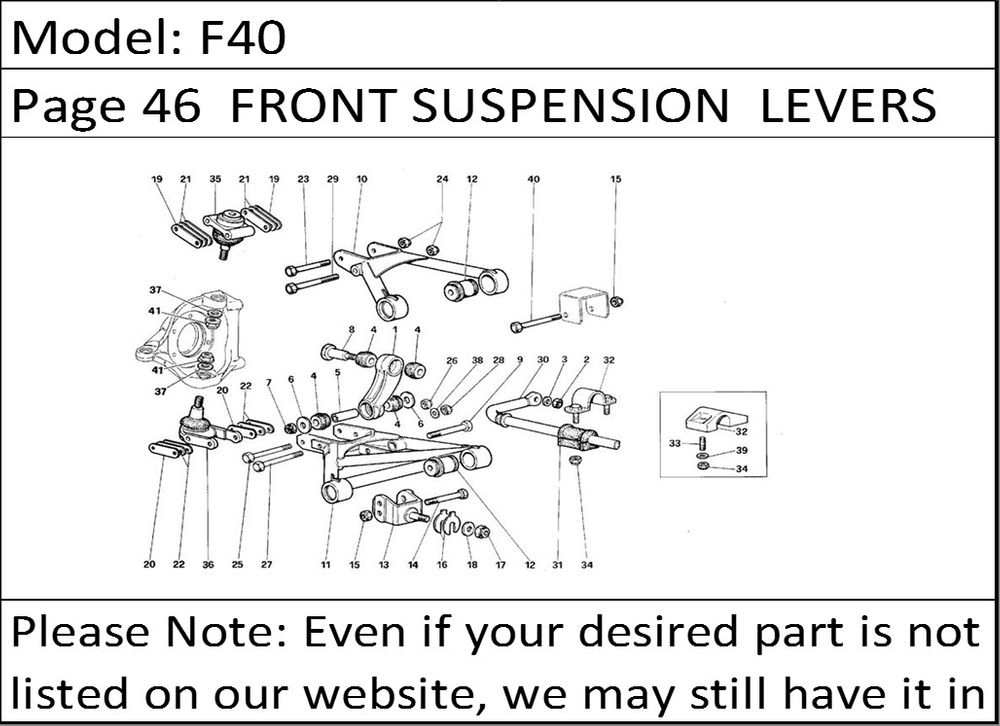

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 133602 | Rod link | 2 |
| 2 | 16103621 | Nut | 2 |
| 3 | 127498 | Washer | 2 |
| 4 | 100984 | Grommet | 8 |
| 5 | 100985 | Spacer tube | 2 |
| 6 | 117730 | Washer | 4 |
| 7 | 148020 | Nut | 2 |
| 8 | 121679 | Pin | 2 |
| 9 | 125396 | Screw | 2 |
| 10 | 121392 | Upper lever, right | 1 |
| 10 | 121393 | Upper lever, left | 1 |
| 11 | 132175 | Lower lever, right | 1 |
| 11 | 132176 | Lower lever, left | 1 |
| 12 | 154537 | Flamblock | 8 |
| 13 | 192281 | Lower fork | 4 |
| 14 | 128368 | Screw | 4 |
| 15 | 148020 | Nut | 8 |
| 16 | 101039 | Ditto, thickness 1 mm. | |
| 16 | 140552 | Shim for lower fork, thickness 6 mm. (Possible mounting) | 4 |
| 16 | 107339 | Ditto, thickness 2 mm. | |
| 16 | 107340 | Ditto, thickness 2,5 mm | |
| 16 | 107341 | Ditto, thickness 3 mm. | |
| 16 | 107342 | Ditto, thickness 3,25 mm. | |
| 16 | 107338 | Ditto, thickness 1,5 mm. | |
| 17 | 150238 | Nut | 4 |
| 18 | 101041 | Washer | 4 |
| 19 | 115072 | Upper adjusting plate for caster angle (Possible mounting) | |
| 20 | 124365 | Lower adjusting plate for caster angle -Possible mounting | |
| 21 | 103256 | Upper adjusting plate | 8 |
| 22 | 125397 | Lower adjusting plate | 8 |
| 23 | 109013 | Screw | 2 |
| 24 | 12574521 | Nut | 4 |
| 25 | 15971621 | Screw | 2 |
| 26 | 12574521 | Nut | 2 |
| 27 | 112441 | Screw | 2 |
| 28 | 148020 | Nut | 2 |
| 29 | 114818 | Screw | 2 |
| 30 | 118118 | Stabilizer rod | 1 |
| 31 | 130606 | Pad for rod | 2 |
| 32 | 138389 | Support -Valid after depletion of 133227 | 2 |
| 33 | 13516821 | Stud -Valid for support 130532 | 4 |
| 34 | 14058511 | Nut | 4 |
| 35 | 116280 | Upper ball joint | 2 |
| 36 | 133944 | Lower ball joint | 2 |
| 37 | 122237 | Washer | 4 |
| 38 | 10520024 | Washer | 2 |
| 39 | 102683 | Washer -Valid for support 130532 | 4 |
| 40 | 121693 | Screw | 4 |
| 41 | 149807 | Nut | 4 |
