Home > Ferrari Parts 330 GT 2+2 Table 132 Inner Heating Matrix & Tubes (Edition 1) Parts

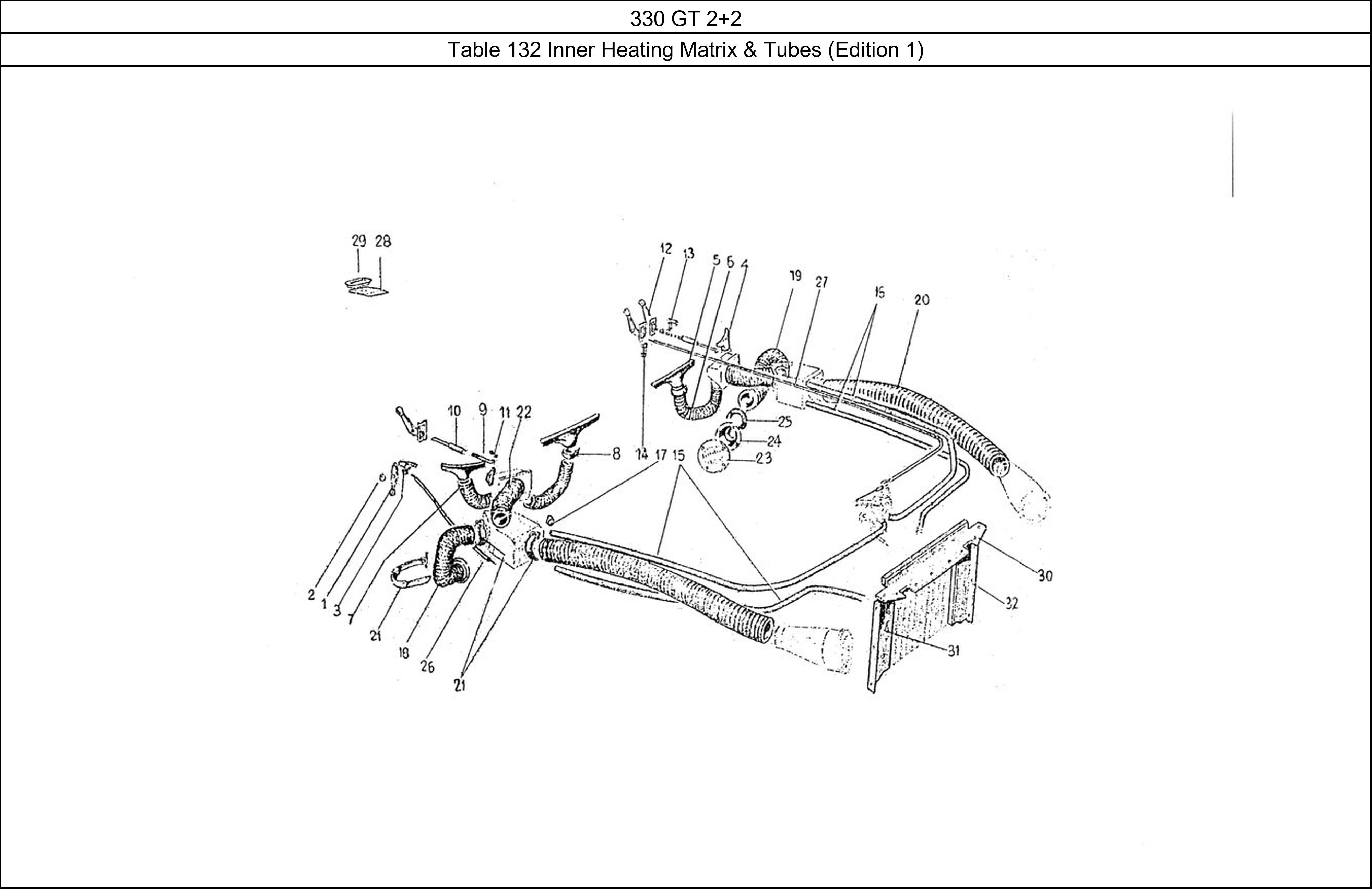

Ferrari Parts 330 GT 2+2 Table 132 Inner Heating Matrix & Tubes (Edition 1) Parts

LOCPart NumberDescription (Click to View)QTY
1242-86-062-01LAVA BOX HEATER CONTROL FOR DEFLATOR1
2242-86-064-04SPRING1
3242-86-072-07SUPPORT1
3242-86-073-07SUPPORT1
4242-86-102-07DASH VENT DUCT SMALL 330 GT 2+21
4242-86-102-07DASH VENT DUCT SMALL 330 GT 2+21
5242-86-104-07CENTRAL DEFROSTER VENTS1
6242-86-110-00FLESS.COLLEGAM.RISCALDATORE JETS TO CENTRAL TUBE1
7242-86-120-00HEATER DUCTING 40MM (PER METRE)1
8241-86-130-00CLIP1
9242-86-134-07FIXED ROD THROTTLE CONTROL1
10242-86-168-07ADJUSTABLE ROD COMPLETE WITH HOSE1
11242-86-174-04CATCH1
12212-86-202-02CONTROL DEVICE FOR WASHING RISCALDARTENTO.1
13242-86-204-07BRACKET / SUPPORT1
14242-86-201-16BRACKET / SUPPORT1
15242-86-312-00D. THE TUBE COLLEGAM.RISCALDATORE. ENGINE (LUNGH.MT.3,50)1
16242-86-313-00TUBE COLLEGAM.RISCALDATORE S. ENGINE (LUNGH.MT.3)1
17241-86-130-00CLIP1
18242-86-530-00RH TUBE Ø 60 X 5501
19242-86-531-00LH TUBE Ø 60 X 6201
20242-86-550-00TUBE COLLEGAT.ASPIRAT.LATO PASS.CON SOAT. RISOALD1
21242-86-552-00HOSE CLAMP (LARGE TYPE MM.390)1
22242-86-588-00TUBE Ø 60 X 210 COLLEG.SCATOLA RISCALDAT.A BOX DISTRIBUTR.1
23242-86-600-07HEATER BOX INNER FLAP1
24242-86-610-07AIR INTAKE HOUSING1
25242-86-626-00GASKET1
26242-86-636-00CABLE OPENING FLAP1
27242-86-640-00LHD CABLE1
27244-86-640-00RHD CABLE1
28242-86-700-00UNIT IN REAR WINDOW DEFROSTER1
29242-86-780-02SHELF FOR DEFROST NOZZLE1
30242-12-088-07AIR CONVEYOR WITH RADIATOR1
31242-12-096-07RH PROTECTION1
32242-12-097-07LH PROTECTION1
33242-86-630-06VENT1
