Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

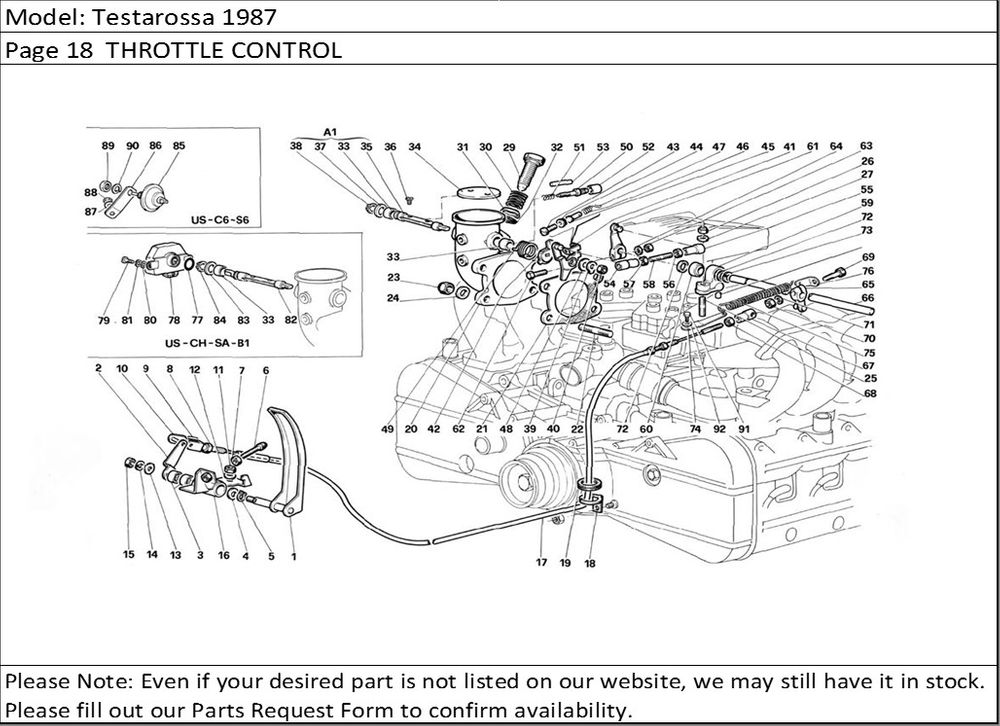

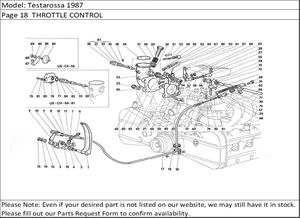

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 115393 | Accelerator pedal | 1 |
| 2 | 122184 | Lever | 1 |
| 3 | 101677 | Roller cage | 2 |
| 4 | 108576 | Shim | 1 |
| 5 | 11066076 | Seeger ring | 1 |
| 6 | 105232 | Adjusting screw | 1 |
| 7 | 16102311 | Nut | 2 |
| 8 | 10725911 | Locknut | 1 |
| 9 | 100655 | Fork | 1 |
| 10 | 100656 | Pin with strap | 1 |
| 11 | 16100811 | Nut | 2 |
| 12 | 106852 | Washer | 2 |
| 13 | 10519601 | Spacer | 1 |
| 14 | 106852 | Washer | 1 |
| 15 | 16100811 | Nut | 1 |
| 16 | 115396 | Accelerator pedal support | 1 |
| 17 | 123190 | Cable On exhaustion use no. 127445 | 1 |
| 18 | 124220 | Cable supporting bracket | 1 |
| 19 | 10396680 | Wire carrier | 1 |
| 20 | 122892 | RH throttle body, completeFor US | 1 |
| 20 | 122893 | LH throttle body, completeFor A1 | 1 |
| 20 | 123017 | LH throttle body, completeFor US | 1 |
| 20 | 127139 | RH throttle body, completeFor B1 - CH - SA | 1 |
| 20 | 122891 | RH throttle body, completeFor A1 | 1 |
| 20 | 127140 | LH throttle body, completeFor B1 - CH - SA | 1 |
| 21 | 121123 | Gasket | 2 |
| 22 | 13541121 | Stud | 8 |
| 23 | 12575411 | Nut | 8 |
| 24 | 12601271 | Washer | 8 |
| 25 | 13543421 | Stud | 2 |
| 26 | 16104411 | Nut | 2 |
| 27 | 12601371 | Washer | 2 |
| 29 | 125716 | Dowel | 2 |
| 29 | 119308 | Air adjusting screw | 2 |
| 30 | 113571 | Spring | 2 |
| 31 | 115204 | Cap | 2 |
| 32 | 114919 | Grommet | 2 |
| 33 | 118128 | Bushing (Not supplied) | 4 |
| 34 | 113563 | Throttle (Not supplied) | 2 |
| 35 | 122894 | Throttle shaft (Not supplied) | 2 |
| 36 | 115361 | Screw | 4 |
| 37 | 128944 | Spring washer | 2 |
| 38 | 11065976 | Seeger ring | 2 |
| 39 | 113566 | Lock washer | 2 |
| 40 | 122897 | Nut | 2 |
| 41 | 122906 | L.H. throttle control lever | 1 |
| 41 | 122903 | R.H. throttle control lever | 1 |
| 42 | 122902 | R.H. driven lever | 1 |
| 42 | 122905 | L.H. driven lever | 1 |
| 43 | 122909 | Screw | 2 |
| 44 | 122910 | Nut | 2 |
| 45 | 122913 | Pin | 2 |
| 46 | 122914 | Spring | 2 |
| 47 | 122915 | Cotter pin | 2 |
| 48 | 122900 | Spacer | 2 |
| 49 | 122912 | R.H. throttle return spring | 1 |
| 49 | 122911 | L.H. throttle return spring | 1 |
| 50 | 114366 | Adjusting screw | 2 |
| 51 | 107824 | Spring | 2 |
| 52 | 111182 | Protection cup | 2 |
| 53 | 114367 | Check pin | 2 |
| 54 | 105617 | HeadR.H. thread | 2 |
| 55 | 105619 | HeadL.H. thread | 2 |
| 56 | 105586 | NutL.H. thread | 2 |
| 57 | 15896411 | NutR.H. thread | 2 |
| 58 | 121091 | Tie rod | 2 |
| 59 | 121053 | Support for accelerator control rod | 2 |
| 60 | 107620 | Bail joint | 2 |
| 61 | 121081 | R.H. lever on accelerator control rod | 1 |
| 61 | 126029 | L.H. lever on accelerator control rod | 1 |
| 62 | 125506 | Screw | 2 |
| 63 | 16100811 | Nut | 2 |
| 64 | 106852 | Washer | 2 |
| 65 | 121475 | Lever for cable accelerator | 1 |
| 66 | 121474 | Relay shaft | 1 |
| 67 | 105617 | Head R.H. thread | 1 |
| 68 | 15896411 | Nut | 1 |
| 69 | 16043821 | Screw | 1 |
| 70 | 16100811 | Nut | 1 |
| 71 | 106852 | Washer | 1 |
| 72 | 121477 | Spacer | 2 |
| 73 | 11066076 | Seeger ringFor A1 | 1 |
| 74 | 102952 | Fixing spring plate | 1 |
| 74 | 122818 | Fixing spring plate For B1 - US - CH - SA | 1 |
| 75 | 102951 | Spring for lever | 1 |
| 76 | 125044 | Fixing spring plate | 1 |
| 77 | 116736 | Seal ring | 1 |
| 78 | 121517 | Microswitch For US - CH - S6 | 1 |
| 78 | 131403 | MicroswitchFor B1 - S7 | 1 |
| 79 | 10444521 | Screw | 2 |
| 80 | 10519201 | Washer | 2 |
| 81 | 106848 | Washer | 2 |
| 82 | 122895 | L.H. throttle shaft | 1 |
| 83 | 121835 | L.H. spring washer | 1 |
| 84 | 104182 | L.H. seeger ring | 1 |
| 85 | 121748 | Differential pressure switch | 1 |
| 86 | 125845 | Bracket | 1 |
| 87 | 106850 | Washer | 1 |
| 88 | 10725911 | Nut | 1 |
| 89 | 10791211 | Nut | 1 |
| 90 | 106854 | Washer | 1 |
| 91 | 10979411 | Screw | 1 |
| 92 | 12601271 | Washer | 1 |
