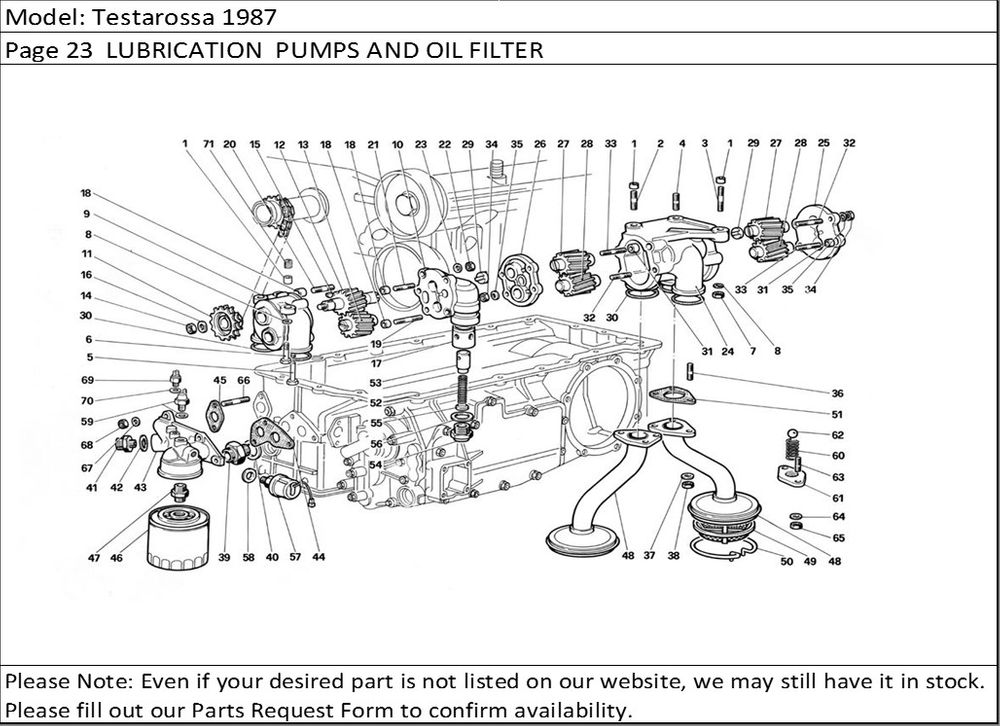

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 102704 | Dowel | 4 |
| 2 | 13517221 | Stud | 1 |
| 3 | 13543621 | Stud | 1 |
| 4 | 13543321 | Stud | 1 |
| 5 | 16043821 | Bolt | 2 |
| 6 | 16043621 | Bolt | 1 |
| 7 | 16100821 | Nut | 6 |
| 8 | 11198071 | Washer | 6 |
| 9 | 121059 | Body of oil delivery pump | 1 |
| 10 | 121060 | Cover of oil delibery pump | 1 |
| 11 | 121058 | Oil pump control gear | 1 |
| 12 | 120940 | Driving gear | 1 |
| 13 | 121057 | Driven gear | 1 |
| 14 | 121532 | Nut | 1 |
| 15 | 10205820 | Feather key | 1 |
| 16 | 12601471 | Washer | 1 |
| 17 | 125321 | Centering bush Not spare | 1 |
| 18 | 102725 | Dowel | 2 |
| 19 | 11501421 | Stud | 1 |
| 20 | 11500521 | Stud | 1 |
| 21 | 11500321 | Stud | 3 |
| 22 | 15896211 | Nut | 5 |
| 23 | 11197771 | Washer | 5 |
| 24 | 120560 | Body of oil scavenge pump | 1 |
| 25 | 121029 | Rear cover | 1 |
| 26 | 121069 | Front cover | 1 |
| 27 | 121062 | Driving gear | 2 |
| 28 | 116056 | Driven gear | 2 |
| 29 | 109309 | Coupling | 2 |
| 30 | 123236 | Seal ring | 5 |
| 31 | 102725 | Dowel | 4 |
| 32 | 11500121 | Stud | 4 |
| 33 | 11500321 | Stud on dowel | 4 |
| 34 | 15896211 | Nut | 8 |
| 35 | 11197771 | Washer | 8 |
| 36 | 13540921 | Stud for oil suction pipe | 6 |
| 37 | 11197771 | Washer | 6 |
| 38 | 15896221 | Nut | 6 |
| 39 | 110203 | Union | 1 |
| 40 | 10303460 | Gasket | 1 |
| 41 | 109371 | Union | 1 |
| 42 | 10264660 | Gasket | 1 |
| 43 | 123187 | Oil filter supportNot for US - CH - SA | 1 |
| 43 | 127127 | Oil filter support For C6 - S6 | 1 |
| 43 | 125824 | Oil filter support For US - C7 - S7 | 1 |
| 44 | 121146 | Gasket | 1 |
| 45 | 121147 | Gasket | 1 |
| 46 | 124228 | Oil filter | 1 |
| 47 | 124229 | Union for filter | 1 |
| 48 | 120917 | Suction pipe for oil scavenge pump | 2 |
| 49 | 100332 | Filter | 2 |
| 50 | 103944 | Circlip | 2 |
| 51 | 103942 | Gasket | 2 |
| 52 | 106900 | Spring for valve | 1 |
| 53 | 125885 | Plunger | 1 |
| 54 | 106237 | Plug | 1 |
| 55 | 131743 | Spacer | 1 |
| 56 | 10264660 | Gasket | 1 |
| 57 | 122592 | Oil pressure transmitter | 1 |
| 58 | 10259960 | Gasket | 1 |
| 59 | 110664 | Switch for oil pressure led | 1 |
| 60 | 109980 | Spring for oil pressure adjusting valve | 1 |
| 61 | 121305 | Flange | 1 |
| 62 | 121306 | Ball | 1 |
| 63 | 13540721 | Stud | 2 |
| 64 | 11197771 | Washer | 2 |
| 65 | 15896221 | Nut | 2 |
| 66 | 12354521 | Stud | 5 |
| 67 | 12601371 | Washer | 5 |
| 68 | 16100821 | Nut | 5 |
| 69 | 125857 | Bimetallic thermoswitchFor US - CH - SA | 1 |
| 70 | 10260050 | Gasket | 1 |
| 71 | 13525770 | Heli-coil | 3 |
