Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

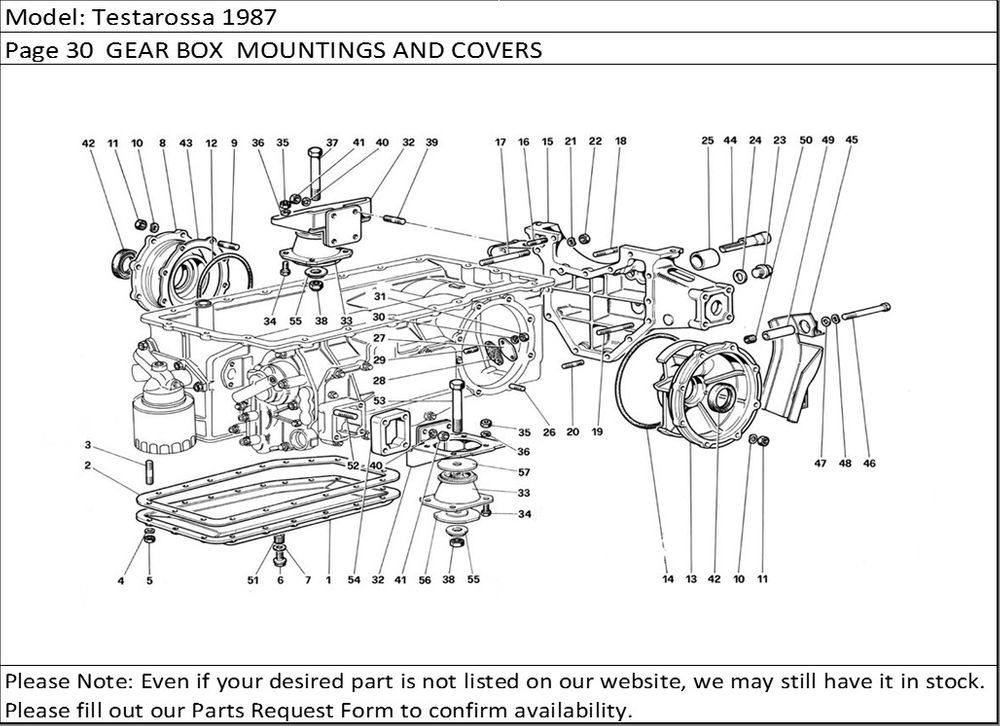

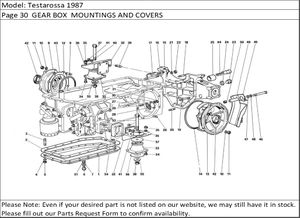

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 109436 | Oil sump cover | 1 |
| 2 | 104674 | Gasket | 1 |
| 3 | 13541121 | Stud | 18 |
| 4 | 11197771 | Washer | 18 |
| 5 | 15896221 | Nut | 18 |
| 6 | 103974 | Engine oil drain plug | 1 |
| 7 | 10257060 | Gasket | 1 |
| 8 | 125459 | Differential R.H. side cover | 1 |
| 9 | 13546521 | Stud | 8 |
| 10 | 12601471 | Washer | 16 |
| 11 | 12164721 | Nut | 16 |
| 12 | 103017 | Seal ring | 1 |
| 13 | 109629 | Differential L.H. side cover | 1 |
| 14 | 109640 | Seal ring | 1 |
| 15 | 109603 | Intermediate cover | 1 |
| 16 | 13543321 | Stud | 5 |
| 17 | 13970821 | Stud | 2 |
| 18 | 13544121 | Stud | 2 |
| 19 | 13544421 | Stud | 3 |
| 20 | 13543421 | Stud | 4 |
| 21 | 12601371 | Washer | 16 |
| 22 | 16100821 | Nut | 16 |
| 23 | 10275001 | Oil level inspection plug | 1 |
| 24 | 10263460 | Gasket | 1 |
| 25 | 109335 | Bushing between interm. body and clutch housing | 1 |
| 26 | 13546321 | Stud | 8 |
| 27 | 104772 | Flange for oil ports | 1 |
| 28 | 104773 | Gasket | 1 |
| 29 | 11500121 | Stud | 2 |
| 30 | 106850 | Washer | 2 |
| 31 | 15896221 | Nut | 2 |
| 32 | 105642 | Engine support | 4 |
| 33 | 125485 | Rubber pad, complete | 4 |
| 34 | 15970621 | Bolt | 16 |
| 35 | 12164711 | Nut | 16 |
| 36 | 106853 | Washer | 16 |
| 37 | 11369621 | Rear pads security bolt | 2 |
| 38 | 12575911 | Nut | 4 |
| 39 | 13546321 | Stud | 8 |
| 40 | 10516871 | Washer | 16 |
| 41 | 12164721 | Nut | 16 |
| 42 | 129021 | Seal ring on side covers After exhaustion use P.N. 125077 | 2 |
| 43 | 130988 | Ditto, thickness 1.3 mm. | 1 |
| 43 | 130991 | Ditto, thickness 1.9 mm. | 1 |
| 43 | 130990 | Ditto, thickness 1.7 mm. | 1 |
| 43 | 130989 | Ditto, thickness 1.5 mm. | 1 |
| 43 | 103232 | Spacer on R.H. side cover 1.638mm. thickness | 1 |
| 43 | 103428 | Ditto, thickness 1.4 mm. | 1 |
| 43 | 103431 | Ditto, thickness 1.8 mm. | 1 |
| 43 | 103427 | Ditto, thickness 1.2 mm. | 1 |
| 43 | 103429 | Ditto, thickness 1.6 mm. | 1 |
| 44 | 109339 | Oil pipe | 1 |
| 45 | 109683 | Oil conveyor | 1 |
| 46 | 11032321 | Screw | 2 |
| 47 | 109684 | Washer | 2 |
| 48 | 106850 | Washer | 2 |
| 49 | 109682 | Conveyor supporting stud | 2 |
| 50 | 13524170 | Heli-coil | 2 |
| 51 | 111352 | Heli-coil | 1 |
| 52 | 13546921 | Stud | 8 |
| 53 | 11369621 | Front pads securing bolt | 2 |
| 54 | 107530 | Spacer for pads support | 2 |
| 55 | 124731 | Washer securing front rubber pads | 4 |
| 56 | 130972 | Lower plate | 4 |
| 57 | 130973 | Upper plate | 4 |
