Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

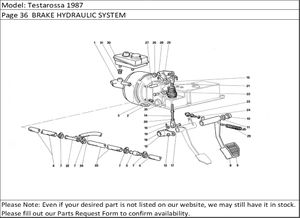

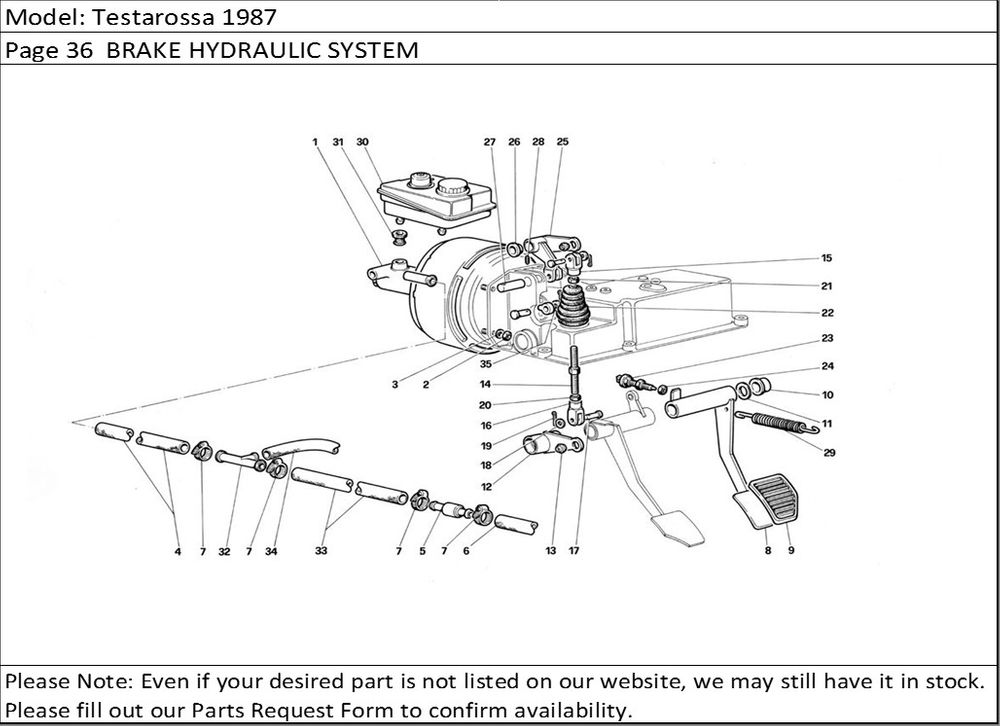

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 120928 | Brake booster | 1 |
| 2 | 16104411 | Nut | 4 |
| 3 | 12601371 | Washer | 4 |
| 4 | 119361 | Hose from brake booster to 3-way | 1 |
| 5 | 101538 | No return valveOn exhaustion use No. 128435 | 1 |
| 6 | 127213 | Hose from valve to engine | 1 |
| 7 | 12179590 | Clamp | 8 |
| 8 | 121232 | Brake pedal | 1 |
| 9 | 106950 | Pedal cover | 1 |
| 10 | 124686 | Bush | 1 |
| 11 | 112130 | Shim, 1,2 mm. If required | 2 |
| 11 | 112131 | Shim, 1,3 mm. If required | 2 |
| 11 | 112128 | Shim, 1,0 mm. If required | 2 |
| 11 | 112129 | Shim, 1,1 mm.If required | 2 |
| 11 | 112127 | Shim 0,9 mm.If required | 2 |
| 12 | 121217 | Brake relay lever | 1 |
| 13 | 100424 | Ball joint | 2 |
| 14 | 119164 | Tie rod | 1 |
| 15 | 104910 | Fork R.H. thread | 1 |
| 16 | 104911 | Fork, L.H. thread | 1 |
| 17 | 10033411 | Pin | 3 |
| 18 | 103167 | Washer | 2 |
| 19 | 10796401 | Split pin | 3 |
| 20 | 103157 | Nut, L.H. thread If out of stock use P.N. 10788711 | 1 |
| 21 | 103160 | Nut, R.H. thread If out of stock use P.N. 11690911 | 1 |
| 22 | 112157 | Bellows | 1 |
| 23 | 101663 | Stop light switch | 1 |
| 24 | 101662 | Shock absorbing nut | 1 |
| 25 | 121219 | Brake booster lever | 1 |
| 26 | 124586 | Bush | 2 |
| 27 | 124714 | Relay lever supporting pin | 1 |
| 28 | 13736911 | Screw | 1 |
| 29 | 104895 | Pedal return spring | 1 |
| 30 | 119566 | Reservoir | 1 |
| 31 | 106625 | Seal ring | 2 |
| 32 | 100881 | 3-way union | 1 |
| 33 | 120232 | Pipe from 3-way union to valve | 1 |
| 34 | 125031 | Pipe from 3-way union to vacuum | 1 |
| 35 | 10730521 | Washer | 1 |
