Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

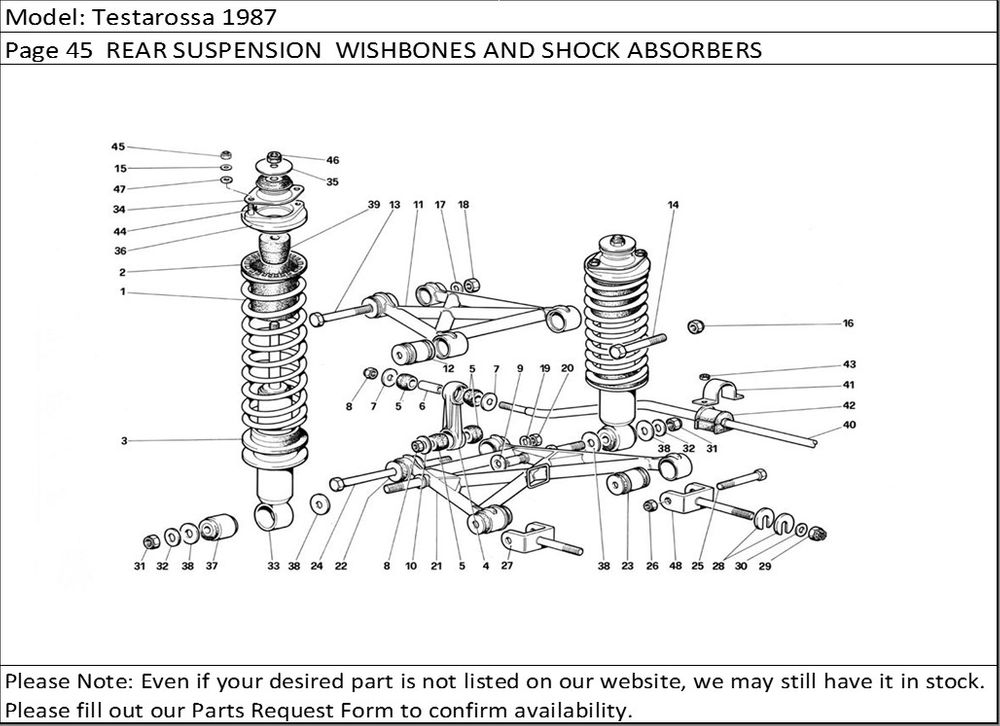

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 124982 | Suspension spring | 4 |
| 2 | 103263 | Upper spacer | 4 |
| 3 | 103264 | Lower spacer | 4 |
| 4 | 124330 | Rod link | 2 |
| 5 | 108244 | Grommetfor rod | 8 |
| 6 | 108294 | Distance tube | 2 |
| 7 | 107409 | Grommet retaining washer | 4 |
| 8 | 16104421 | Nut | 4 |
| 9 | 14489201 | Washer | 2 |
| 10 | 124338 | Washer | 2 |
| 11 | 122964 | Upper lever | 2 |
| 12 | 111616 | Rubber bush for upper levers | 8 |
| 13 | 116699 | Screw | 2 |
| 14 | 121693 | Screw | 4 |
| 15 | 12646721 | Washer | 4 |
| 16 | 16105121 | Nut | 4 |
| 17 | 12601571 | Washer | 2 |
| 18 | 16105121 | Nut | 2 |
| 19 | 12601671 | Washer | 2 |
| 20 | 101040 | Nut | 2 |
| 21 | 128415 | Lower leverFor shock absorber n. 128430 | 2 |
| 21 | 124304 | Lower leverFor shock absorber no. 116865 | 2 |
| 22 | 120813 | Lower rubber bush-hub holder side | 4 |
| 23 | 129583 | Rubber bushing | 4 |
| 24 | 120815 | Screw | 2 |
| 25 | 106422 | Screw | 4 |
| 26 | 12575821 | Nut | 2 |
| 27 | 116690 | Front fork | 2 |
| 28 | 107338 | Shim 1,5 mm. thich | 2 |
| 28 | 107340 | Shim 2,5 mm. thich | 2 |
| 28 | 107342 | Shim 3,25 mm. thichness | 2 |
| 28 | 107341 | Shim 3 mm. thichness | 2 |
| 28 | 107339 | Shim 2 mm. thich | 2 |
| 28 | 101039 | Shim 1 mm. thick | 2 |
| 29 | 101040 | Nut | 4 |
| 30 | 101041 | Washer | 4 |
| 31 | 12575821 | Nut | 4 |
| 32 | 106855 | Washer | 4 |
| 33 | 128430 | Shock absorber For GOODYEAR tire and after exhaustion of P.N. 116865 - From car 60847 EU | 4 |
| 33 | 116865 | Shock absorber For MICHELIN tire - Until exhaustion | 4 |
| 34 | 116864 | Hyperblock | 4 |
| 35 | 116862 | Hyperblock retaining washer | 8 |
| 36 | 116861 | Shock absorber securing cup | 4 |
| 37 | 103193 | Washer For shock absorber no. 128430 | 8 |
| 37 | 100810 | Estendbloc (for shock absorber | 4 |
| 37 | 125926 | Estendbloc For shock absorber no.116865 | 4 |
| 38 | 128509 | Washer For shock absorber no. 116865 | 8 |
| 39 | 116358 | Shock absorber pad | 4 |
| 40 | 124984 | Rod | 1 |
| 41 | 104417 | Rod retaining U bolt | 1 |
| 42 | 109010 | Rod retaining pad | 2 |
| 43 | 12575611 | Stud | 4 |
| 44 | 13543521 | Stud | 8 |
| 45 | 16104121 | Nut | 8 |
| 46 | 16105121 | Nut | 4 |
| 47 | 113113 | Spacer | 4 |
| 48 | 125889 | Rear fork For US | 2 |
| 48 | 116690 | Rear fork Not for US | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
