Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

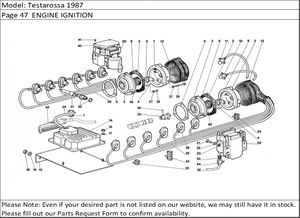

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | HT008 | Complete HT Leads Set | 1 |
| 1 | 144637 | Distributor CapUse on Exhaustion of 121552 & 144638 | 2 |
| 1 | 121552 | R.H. distributor cap | 1 |
| 2 | 144638 | LH Distributor CapUse on Exhaustion of 124575 - Use 144637 on Exhaustion | 1 |
| 2 | 124575 | L.H. distributor cap | 1 |
| 3 | 133346 | RH distributor cap supportAfter exhaustion no. 126115 | 1 |
| 3 | 126115 | Distributor cap supportUntil exhausted | 2 |
| 3 | 133347 | LH distributor cap supportAfter exhaustion no. 126115 | 1 |
| 4 | 10331111 | Dowel | 2 |
| 5 | 132452 | Oil seal ring | 2 |
| 6 | 117261 | Gasket | 2 |
| 7 | 110381 | Clamp | 3 |
| 8 | 119409 | Gasket | 2 |
| 9 | 126139 | Rotor arm | 2 |
| 10 | 119052 | Angular speed sensor | 1 |
| 11 | 124241 | Dead center pick-up sensor | 1 |
| 12 | 124581 | R.H. distributor cap boot | 1 |
| 13 | 124582 | L.H. distrubutor cap boot | 1 |
| 14 | 125828 | Ignition module | 1 |
| 15 | 124391 | Ignition module securing plate | 1 |
| 16 | 12574211 | Nut | 3 |
| 17 | 12639701 | Washer | 3 |
| 18 | 12574211 | Nut | 2 |
| 19 | 12639701 | Washer | 2 |
| 20 | 124273 | Power module with coil | 2 |
| 21 | 10902327 | Screw | 4 |
| 22 | 12643701 | Washer | 4 |
| 23 | 10615471 | Tab washer | 4 |
| 24 | 124406 | Ignition module depression hoseNot for CH and U.S. version | 1 |
| 24 | 122792 | Ignition module depression hoseFor CH and U.S. version | 1 |
| 25 | 126166 | Coupling on camshaft After exhaustion use no. 133063 | 2 |
| 26 | 132355 | Spring pin | 2 |
| 27 | 12544071 | Washer | 6 |
| 28 | 124171 | Set of R.H. ignition cables | 1 |
| 29 | 124172 | Set of L.H. ignition cables | 1 |
| 30 | 131922 | Spark plug (CHAMPION-A-6G)After exhaustion use P.N. 131922 | 12 |
| 31 | 124175 | Extension for spark plugs cables | 12 |
| 31 | 124792 | Extension for spark plugs cables | 12 |
| 32 | 124179 | Cable from coil to distributor cap | 2 |
| 33 | 121788 | 4 - cable support clip | 2 |
| 34 | 121789 | 3 - cable support clip | 8 |
| 35 | 121790 | 2 - cable support clip | 4 |
| 36 | 10902321 | Screw | 2 |
| 37 | 11197771 | Washer | 2 |
| 38 | 121527 | Spark plug cap | 12 |
| 39 | 10444521 | Screw | 6 |
| 40 | 125046 | Protection for power module for A1Until engine no. 150 | 2 |
| 40 | 128169 | Protection for power moduleStarting from engine no. 151 | 2 |
| 41 | 14063018 | Screw For A1 - U6 - S6 - C6 | 4 |
| 41 | 15921807 | ScrewFor B1 - U7 - S7 - C7 | 4 |
| 42 | 61916900 | 25 way connector | 1 |
| 43 | 122970 | Cap | 2 |
| 44 | 129620 | Protection | 2 |
| 45 | 133066 | Spacer For distributor cap support no. 126115 | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
