Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

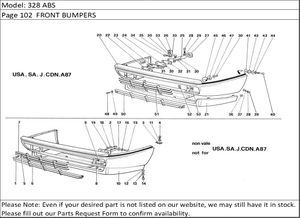

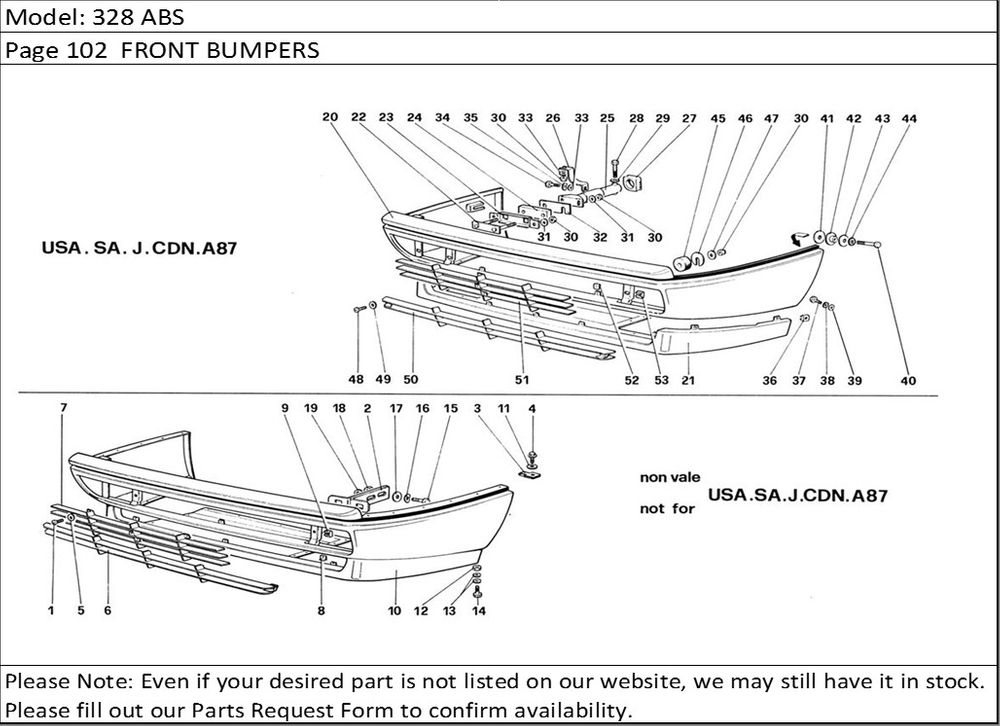

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 15788178 | Screw | 8 |
| 2 | 61741500 | Bracket | 2 |
| 4 | 15926101 | Screw | 12 |
| 5 | 10519306 | Washer | 8 |
| 6 | 61797300 | Lower grill - Until car no. 64761 | 1 |
| 6 | 61938100 | Lower grill - From car no. 64763 | 1 |
| 7 | 61736800 | Grill | 1 |
| 8 | 60696300 | Clip | 8 |
| 9 | 60659100 | Nut | 4 |
| 10 | 61741700 | Lower panel - Until car no. 64761 | 1 |
| 10 | 61976600 | Lower panel - From car no. 68463 | 1 |
| 10 | 61947100 | Lower panel - From car n. 64763 to 68461 | 1 |
| 11 | 12640608 | Washer | 12 |
| 12 | 15896211 | Nut | 10 |
| 13 | 12643701 | Washer | 20 |
| 14 | 10902221 | Screw | 10 |
| 15 | 16043421 | Screw | 4 |
| 16 | 106852 | Washer | 4 |
| 17 | 12642001 | Washer | 4 |
| 18 | 16104111 | Nut | 4 |
| 19 | 12646201 | Washer | 4 |
| 20 | 61946700 | Lower panel - From car no. 64763 - Not for CDN | 1 |
| 20 | 61747400 | Lower panel - Until car no. 64761 - Not for CDN | 1 |
| 20 | 61953300 | Lower panel - CDN | 1 |
| 21 | 61946800 | Spoyler - From car no. 64763 - 68461 | 1 |
| 21 | 41777900 | Spoyler - Until car no. 64761 | 1 |
| 21 | 61975800 | Spoyler - From car no. 68463 | 1 |
| 22 | 61736500 | Bracket | 2 |
| 23 | 61747600 | Bracket | 2 |
| 24 | 61919200 | Plug - Not for CDN | 2 |
| 25 | 61736700 | Bracket | 2 |
| 26 | 60801400 | Bracket | 2 |
| 27 | 61262200 | Plug | 2 |
| 28 | 60777400 | Screw | 2 |
| 29 | 103024 | Washer | 2 |
| 30 | 12574511 | Nut | 12 |
| 31 | 12638601 | Washer | 8 |
| 32 | 61919300 | Spacer | 6 |
| 33 | 12646801 | Washer | 4 |
| 34 | 15970521 | Screw | 2 |
| 35 | 10571871 | Washer | 2 |
| 36 | 60758600 | Nut | 4 |
| 37 | 10902121 | Screw | 6 |
| 38 | 10615471 | Washer | 6 |
| 39 | 12646601 | Washer | 6 |
| 40 | 16043821 | Screw | 2 |
| 41 | 61802800 | Spacer | 2 |
| 42 | 62428800 | Bushing - After exhaustion 61693400 | 2 |
| 42 | 61693400 | Bushing - Until exaustion | 2 |
| 43 | 12646201 | Washer | 2 |
| 44 | 10615670 | Washer | 2 |
| 45 | 61747800 | Plug | 2 |
| 46 | 61747700 | Spacer | 6 |
| 47 | 12644301 | Washer | 2 |
| 48 | 15688178 | Screw | 8 |
| 49 | 10519306 | Washer | 8 |
| 50 | 61797300 | Lower grill - Until car no. 64761 | 1 |
| 50 | 61938100 | Lower grill - From car no. 64763 | 1 |
| 51 | 61736800 | Grill | 1 |
| 52 | 60696300 | Clip | 8 |
| 53 | 60659100 | Nut | 4 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
