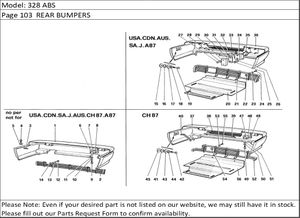

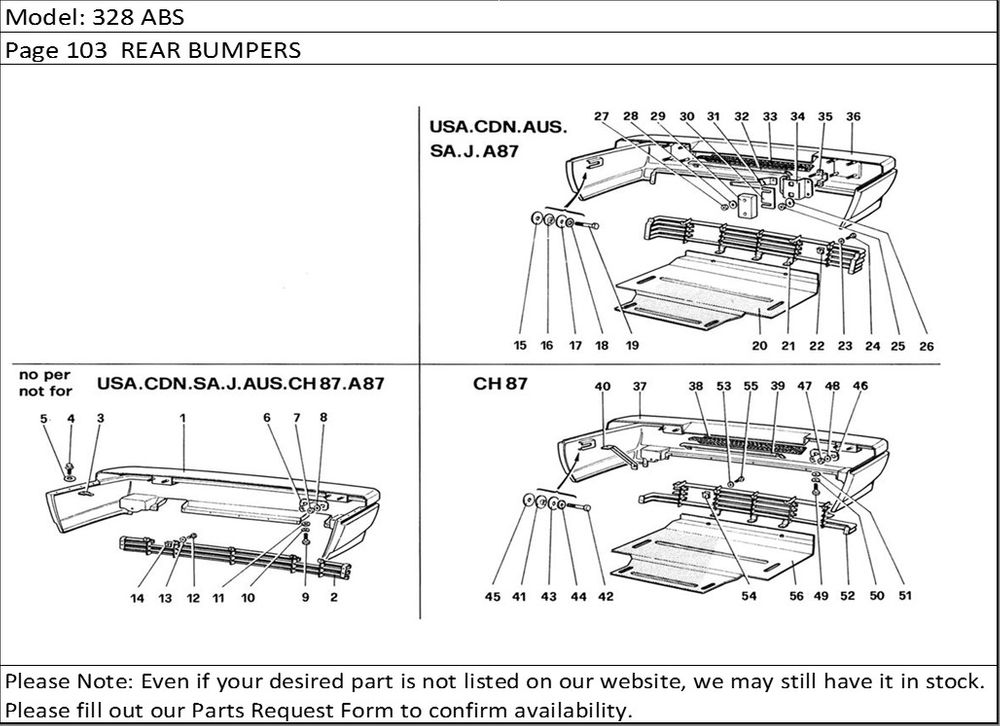

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 61740400 | Lower panel | 1 |
| 2 | 61734400 | Grill | 1 |
| 4 | 15926101 | Screw | 8 |
| 5 | 12640608 | Washer | 8 |
| 6 | 41740600 | Bracket | 2 |
| 7 | 16104111 | Nut | 4 |
| 8 | 20291308 | Washer | 4 |
| 9 | 16043411 | Screw | 2 |
| 10 | 106852 | Washer | 2 |
| 11 | 12642001 | Washer | 2 |
| 12 | 15688278 | Screw | 9 |
| 13 | 12637806 | Washer | 9 |
| 14 | 61066500 | Clip | 9 |
| 15 | 61802800 | Spacer | 2 |
| 16 | 61693400 | Bushing - Until exhaustion | 2 |
| 16 | 62428800 | Bushin - After exaustion 61693400 | 2 |
| 17 | 12646201 | Wahser | 2 |
| 18 | 10615670 | Washer | 2 |
| 19 | 16043821 | Screw | 2 |
| 20 | 61881000 | Protection | 1 |
| 21 | 61737700 | Grill | 1 |
| 22 | 61067800 | Clip | 9 |
| 23 | 12637806 | Washer | 9 |
| 24 | 15688278 | Screw | 9 |
| 25 | 16104111 | Nut | 8 |
| 26 | 10519601 | Washer | 8 |
| 27 | 12574511 | Nut | 4 |
| 28 | 12638601 | Washer | 4 |
| 29 | 61791900 | Plug | 2 |
| 30 | 61792000 | Spacer | 1 |
| 31 | - | L.H. bracket (first cars only) | 1 |
| 31 | - | R.H. bracket (first cars only) | 1 |
| 32 | 61923600 | Angle fixing net | 1 |
| 33 | 61918300 | Net | 1 |
| 34 | 61736300 | Bracket | 2 |
| 35 | 61791700 | Bracket | 2 |
| 36 | 61735900 | Lower panel - Not for CDN | 1 |
| 36 | 61953400 | Lower panel - CDN | 1 |
| 37 | 61972900 | Lower panel | 1 |
| 38 | 61918300 | Net | 1 |
| 39 | 61923600 | Angle fixing net | 1 |
| 40 | 61973000 | Bracket | 2 |
| 41 | 62428800 | Bushing - After exhaustion 61693400 | 2 |
| 41 | 61693400 | Bushing - Until exaustion | 2 |
| 42 | 16043821 | Screw | 2 |
| 43 | 12646201 | Washer | 2 |
| 44 | 10615670 | Washer | 2 |
| 45 | 61802800 | Spacer | 2 |
| 46 | 61740602 | Bracket | 2 |
| 47 | 16104111 | Nut | 4 |
| 48 | 20291308 | Washer | 4 |
| 49 | 16043411 | Screw | 2 |
| 50 | 106852 | Washer | 2 |
| 51 | 12642001 | Washer | 2 |
| 52 | 61972700 | Grill | 1 |
| 53 | 12637806 | Washer | 9 |
| 54 | 61067800 | Clip | 9 |
| 55 | 15688278 | Screw | 9 |
| 56 | 61881000 | Protection | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
