Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

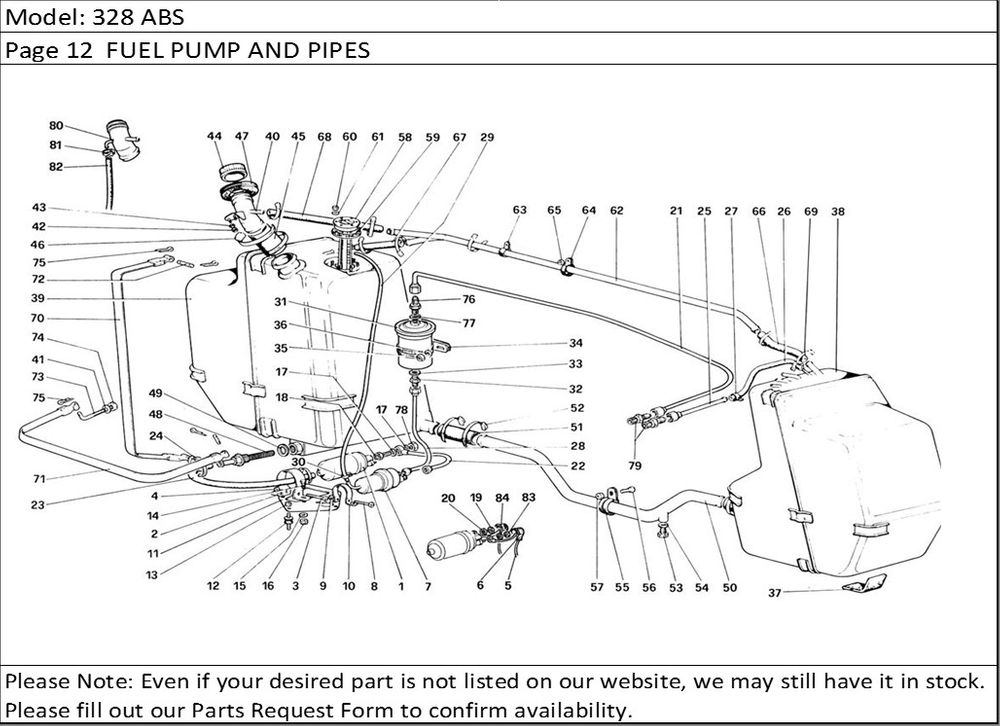

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 121727 | Fuel pump | 1 |
| 2 | 113673 | Pump strap | 1 |
| 4 | 14089311 | Nut | 1 |
| 5 | 115153 | Earth cable | 1 |
| 6 | 107003 | Rubber boot | 2 |
| 7 | 129037 | Accumulator - For C8 | 1 |
| 7 | 113978 | Accumulator - Not for C8 | 1 |
| 8 | 10376111 | Screw | 1 |
| 9 | 14089311 | Nut | 1 |
| 10 | 135881 | Strap - For C8 | 1 |
| 10 | 113674 | Strap - Not for C8 | 1 |
| 11 | 115513 | Support for pump and accumulator | 1 |
| 12 | 102947 | Pad | 3 |
| 13 | 12574211 | Nut | 5 |
| 14 | 10902121 | Screw | 4 |
| 15 | 10519421 | Washer | 3 |
| 16 | 12574211 | Nut | 4 |
| 17 | 11270160 | Gasket | 2 |
| 18 | 120098 | Check valve | 1 |
| 19 | 15896411 | Nut | 1 |
| 20 | 10615379 | Washer | 1 |
| 21 | 116571 | Pipe, filter to metering device Up to car no. 59619 | 1 |
| 21 | 128477 | Pipe, filter to metering device From car no. 59621 | 1 |
| 22 | 119305 | Pipe, pump to accumulator Not for C8 | 1 |
| 22 | 135779 | Pipe, pump to accumulator For C8 | 1 |
| 23 | 119281 | Pipe, filter to pump | 1 |
| 24 | 12179590 | Strap | 2 |
| 25 | 128479 | Return pipe - After exhaustion use no. 135088 | 1 |
| 26 | 126919 | Pipe | 1 |
| 27 | 12179490 | Strap | 2 |
| 28 | 117848 | Pipe, accumulator to filter - For C8 | 1 |
| 28 | 119278 | Pipe, accumulator to filter - Not for C8 | 1 |
| 29 | 115236 | Return pipe - For US - SA - C8 | 1 |
| 30 | 12179490 | Strap - For US - SA - C8 | 2 |
| 31 | 155738 | el filter - Not for US - SA - C8 | 1 |
| 31 | 117792 | Fuel filter - For US - SA - C8 | 1 |
| 32 | 109797 | Union - Not for US - SA - C8 | 1 |
| 32 | 109889 | Union - For US - SA - C8 | 1 |
| 33 | 10280060 | Gasket - For US - SA - C8 | 1 |
| 33 | 113910 | Gasket - Not for US - SA - C8 | 1 |
| 34 | 115140 | Bracket for filter - Not for US - SA - C8 | 1 |
| 34 | 117791 | Bracket for filter - For US - SA - C8 | 1 |
| 35 | 12574521 | Nut | 1 |
| 36 | 13550401 | Washer | 1 |
| 37 | 107889 | Shim for tanks | 14 |
| 38 | 116605 | R.H. tank - Not for US - SA -C8 | 1 |
| 38 | 114605 | R.H. tank - For US - SA - C8 | 1 |
| 39 | 121318 | L.H. tank - Not for US - SA - C8 | 1 |
| 39 | 119015 | L.H. tank - For US - SA - C8 | 1 |
| 40 | 132340 | Fuel filter - For C7 | 1 |
| 40 | 113865 | Fuel filter - For SA - GTB | 1 |
| 40 | 113866 | Fuel filter - For SA - GTS | 1 |
| 40 | 115680 | Fuel filter - For US - SA - C8 | 1 |
| 41 | 13605711 | SpacerPossibile fitting | 1 |
| 42 | 12574211 | Nut - for US - SA - C8 | 2 |
| 43 | 12643701 | Washer - For US - SA - C8 | 2 |
| 44 | 113401 | Fuel filler plug | 1 |
| 45 | 117618 | Sleeve - Not for US - SA - C8 | 1 |
| 45 | 114278 | Sleeve - For US - SA - C8 | 1 |
| 46 | 12174790 | Strap | 2 |
| 47 | 101465 | Gasket | 1 |
| 48 | 136595 | Filter - From car no. | 1 |
| 48 | 116870 | Filter - Until car no. | 1 |
| 49 | 117884 | Gasket | 1 |
| 50 | 115482 | Pipe, tanks connection | 1 |
| 51 | 114277 | Sleeve | 2 |
| 52 | 12173890 | Strap | 4 |
| 53 | 10300771 | Drain plug | 1 |
| 54 | 10278650 | Gasket | 1 |
| 55 | 106195 | Strap for pipe | 1 |
| 56 | 10902121 | Screw | 1 |
| 57 | 12574211 | Nut | 1 |
| 58 | 108644 | Level gauge control | 1 |
| 59 | 101462 | Gasket | 1 |
| 60 | 10794011 | Nut | 6 |
| 61 | 106848 | Washer | 6 |
| 62 | 108521 | Breather pipe | 1 |
| 63 | 10450490 | Strap | 1 |
| 64 | 10441790 | Strap | 2 |
| 65 | 12574211 | Nut | 3 |
| 66 | 114917 | Pipe - For US - SA - C8 | 1 |
| 66 | 109353 | Pipe - Not for US - SA- C8 | 2 |
| 67 | 114916 | Pipe - For US - SA - C8 | 1 |
| 68 | 109354 | Pipe | 1 |
| 69 | 12179590 | Strap | 6 |
| 70 | 109328 | Vertical band for tanks | 2 |
| 71 | 110937 | Trasverse band for tanks For US - SA - C7 - C8 | 2 |
| 72 | 103447 | Pin | 2 |
| 73 | 12311271 | Tie rod | 2 |
| 74 | 16104111 | Nut | 2 |
| 75 | 10796401 | Split pin | 2 |
| 76 | 109797 | Union - For pipe no. 116571 - For US - SA - C8 | 1 |
| 76 | 127756 | Union - For pipe no. 128477 - For US - SA - C8 | 1 |
| 76 | 125216 | Union - For pipe no. 128477 - Not US - SA - C8 | 1 |
| 77 | 113910 | Gasket - For union no. 109797 | 1 |
| 77 | 10298460 | Gasket - For union no. 127756 | 1 |
| 78 | 10183217 | Plug | 1 |
| 79 | 125215 | Union - For pipe no 128477 - 128479 | 2 |
| 80 | 109321 | Fuel filter - Not for US -SA -C8 | 1 |
| 81 | 101296 | Strap - Not for US - SA -C8 | 1 |
| 82 | 106666 | Pipe - Not for US -SA - C8 | 1 |
| 83 | 10794011 | Nut | 1 |
| 84 | 10615279 | Washer | 1 |
