Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

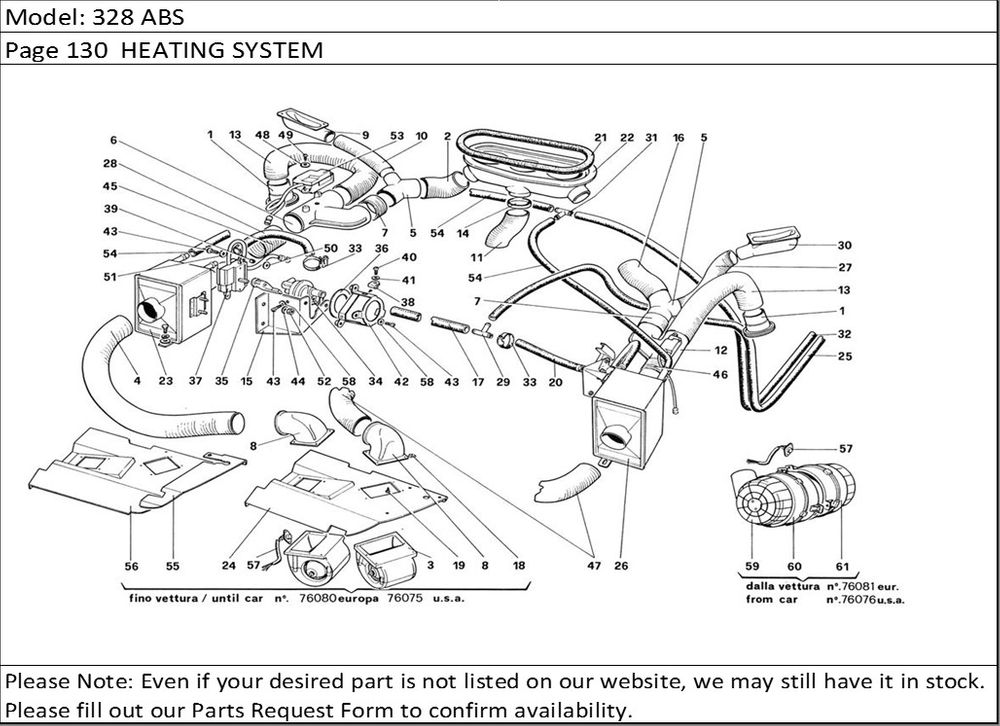

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 60054400 | Under air ouiiet | 2 |
| 2 | 61790900 | Air duct | 1 |
| 3 | 61738700 | Electro fan until exhaustion | 2 |
| 4 | 61790200 | R.H. air duct | 1 |
| 5 | 60153608 | 3 way fitting | 2 |
| 6 | 61738900 | R.H. swithc | 1 |
| 7 | 61790800 | Air duct | 2 |
| 8 | 61770100 | Union | 2 |
| 9 | 60055407 | R.H. air outlet for LHD | 1 |
| 9 | 60198405 | R.H. air outlet for RHD | 1 |
| 10 | 61791100 | Air duct | 1 |
| 11 | 61791300 | Air conditioning duct | 1 |
| 12 | 61739000 | L.H. switch | 1 |
| 13 | 61790600 | Air duct | 2 |
| 14 | 20143202 | Plug | 1 |
| 15 | 126323 | Heater valve braket | 2 |
| 16 | 61791000 | Air duct | 1 |
| 17 | 61853100 | (N) Hose from 3 way to | 1 |
| 17 | 127173 | Hose from 3 way to R.H. water valve - LHD | 1 |
| 17 | 61914300 | (V) Hose from 3 way to | 1 |
| 18 | 60696300 | Spring | 8 |
| 19 | 15644101 | Screw | 8 |
| 20 | 121173 | (V) Hose from 3 way to L.H water valve - RHD | 1 |
| 20 | 116680 | (N) House from 3 way to L.H water valve RHD | 1 |
| 20 | 61914300 | Hose from 3 way to L.H. water valve - LHD | 1 |
| 21 | 50091503 | Gasket | 1 |
| 22 | 20142709 | Air diffusor | 1 |
| 23 | 61761400 | R.H. heater | 1 |
| 24 | 61770000 | Support for electro fanNot for US - J - SA (Cars without electro fan filter) | 1 |
| 24 | 61937000 | Support for electro fanNot for US - J - SA - Can replace 61770000 | 1 |
| 25 | 127172 | (V) Hose motor - 3 way of delivery LHD | 1 |
| 25 | 62492600 | (N) Hose motor - 3 way ot delivery LHD | 1 |
| 25 | 61957100 | Hose motor - 3 way of delivery RHD | 1 |
| 26 | 61761300 | L.H. heater | 1 |
| 27 | 61791200 | Air duct | 1 |
| 28 | 127168 | Hose tap - heater | 2 |
| 29 | 127295 | 3 way fitting | 1 |
| 30 | 60055407 | L.H. air outlet for RHD | 1 |
| 30 | 60055506 | L.H. air outlet for LHD | 1 |
| 31 | 104303 | 3 way of backflow | 1 |
| 32 | 109755 | Hose 3 way - motor | 1 |
| 33 | 12179590 | Clamp | 16 |
| 34 | 126324 | Heater valve | 2 |
| 35 | 126322 | Coupling tap - motor | 2 |
| 36 | 126326 | Gasket | 2 |
| 37 | 126325 | Control motor for heater valve | 2 |
| 38 | 61325200 | Clip | 4 |
| 39 | 126995 | Bushing | 4 |
| 40 | 15642501 | Screw | 4 |
| 41 | 14498501 | Washer | 4 |
| 42 | 126299 | Heater valve braket | 2 |
| 43 | 13273911 | Screw | 10 |
| 44 | 106850 | Washer | 4 |
| 45 | 61790500 | R.H. air duct | 1 |
| 46 | 61790500 | L.H. air duct | 1 |
| 47 | 61790300 | L.H. air duct | 1 |
| 48 | 14498501 | Washer | 4 |
| 49 | 15901508 | Screw | 4 |
| 50 | 10519301 | Washer | 4 |
| 51 | 12601179 | Washer | 4 |
| 52 | 15896211 | Nut | 4 |
| 53 | 61790000 | Motor | 2 |
| 54 | 122225 | Hose heater - 3 way of backflow | 2 |
| 55 | 61884100 | Addition for plateUS - J - SA | 1 |
| 56 | 61869800 | Plate for electro fans US - J - SA | 1 |
| 57 | 126854 | Power transistor | 2 |
| 58 | 106849 | Washer | 6 |
| 59 | 62438900 | Filter for electro fan | 2 |
| 60 | 62438700 | Electro fan with filter | 1 |
| 61 | 62438800 | Electro fan with filter | 1 |
