Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

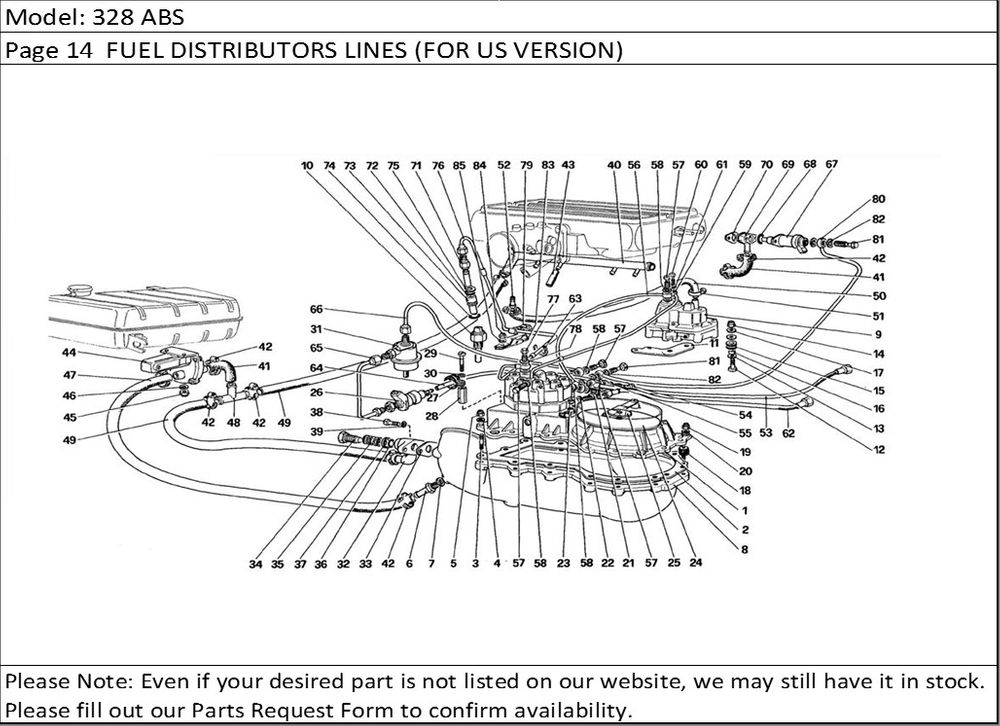

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 121745 | Metering device | 1 |
| 2 | 115011 | Gasket | 1 |
| 4 | 12601271 | Washer | 15 |
| 5 | 12574211 | Nut | 15 |
| 6 | 115751 | Threaded union | 1 |
| 7 | 10259960 | Gasket | 1 |
| 8 | 128027 | Support for metering device - With unit no. 128028 | 1 |
| 8 | 128028 | Support for metering device. complete | 1 |
| 9 | 121743 | Warm-up regulator | 1 |
| 10 | 121778 | Termo-time switch | 1 |
| 11 | 118291 | Support | 1 |
| 12 | 14305521 | Screw | 2 |
| 13 | 12604271 | Washer | 2 |
| 14 | 12574211 | Nut | 2 |
| 15 | 103549 | Rubber small block | 2 |
| 16 | 103550 | Spacer | 2 |
| 17 | 12643701 | Washer | 4 |
| 18 | 102947 | Vibration - damping support | 3 |
| 19 | 12575411 | Nut | 3 |
| 20 | 12640601 | Washer | 2 |
| 20 | 12601271 | Washer | 2 |
| 21 | 115498 | Union with filter | 1 |
| 22 | 11270160 | Gasket | 1 |
| 23 | 121571 | Inviolability plug | 1 |
| 24 | 120810 | Air sensor plate | 1 |
| 25 | 120809 | Washer | 1 |
| 26 | 121513 | Frequency valve | 1 |
| 27 | 121834 | Clamp | 1 |
| 28 | 121836 | Spacer | 1 |
| 29 | 10979421 | Screw | 1 |
| 30 | 106850 | Washer | 1 |
| 31 | 121514 | Damper for frequency valve | 1 |
| 32 | 128158 | Housing for air by-pass adj. | 1 |
| 33 | 128159 | Gasket | 1 |
| 34 | 119308 | Air adjusting screw | 1 |
| 35 | 113571 | Spring | 1 |
| 36 | 114919 | Sealing ring | 1 |
| 37 | 115204 | Plate | 1 |
| 38 | 14305221 | Screw | 2 |
| 39 | 12604271 | Washer | 4 |
| 40 | 128242 | Air delivery pipe | 1 |
| 41 | 123860 | Sleeve | 2 |
| 42 | 12180290 | Clamp | 10 |
| 43 | 121831 | Pipe | 8 |
| 44 | 121744 | Additional air valve | 1 |
| 45 | 12574211 | Nut | 2 |
| 46 | 12601271 | Pipe | 1 |
| 47 | 135118 | Pipe | 1 |
| 48 | 109887 | 3 way union | 1 |
| 49 | 135119 | Pipe | 2 |
| 50 | 118293 | Pipe | 1 |
| 51 | 12179190 | Clamp | 2 |
| 52 | 113652 | Threaded union | 1 |
| 53 | 117787 | Return pipe | 1 |
| 54 | 121752 | Union | 1 |
| 55 | 113910 | Gasket | 2 |
| 56 | 118395 | Return pipe from regulator | 1 |
| 57 | 113664 | Pipe union | 4 |
| 58 | 14330260 | Gasket | 8 |
| 59 | 115507 | Delivery pipe to regulator | 1 |
| 60 | 113670 | Union | 1 |
| 61 | 10260160 | Gasket | 2 |
| 62 | 117885 | Pipe from fuel tank | 1 |
| 63 | 110381 | Clamp | 4 |
| 64 | 121753 | Pipe from frequency valve to metering unit | 1 |
| 65 | 121755 | Pipe from damper to frequency valve | 1 |
| 66 | 121757 | Pipe from metering unit to damper | 1 |
| 67 | 115474 | Auxiliary starting assembly | 1 |
| 68 | 103039 | Sealing ring | 1 |
| 69 | 115004 | Union | 1 |
| 70 | 115005 | Gasket | 1 |
| 71 | 113975 | Injector | 8 |
| 72 | 113570 | Sealing ring | 8 |
| 73 | 113309 | Bushing | 8 |
| 74 | 101031 | Sealing ring | 8 |
| 75 | 103326 | Seeger | 8 |
| 76 | 118592 | Pipe from metering device to cylinder 3 | 1 |
| 76 | 118591 | Pipe from metering device to cylinder 2 | 1 |
| 76 | 118593 | Pipe from metering device to cylinder 4 | 1 |
| 76 | 118594 | Pipe from metering device to cylinder 5 | 1 |
| 76 | 118595 | Pipe from metering device to cylinder 6 | 1 |
| 76 | 118596 | Pipe from metering device to cylinder 7 | 1 |
| 76 | 118597 | Pipe from metering device to cylinder 8 | 1 |
| 76 | 118590 | Pipe from metering device to cylinder 1 | 1 |
| 77 | 113670 | Pipe union | 8 |
| 78 | 10260160 | Gasket | 16 |
| 79 | 115595 | Support clamp4 pipes | 1 |
| 79 | 113896 | Support clamp3 pipes | 1 |
| 79 | 115418 | Support clamp4 pipes | 1 |
| 79 | 117279 | Support clamp | 2 |
| 80 | 115735 | Pipe metering device to auxiliary starting assembly | 1 |
| 81 | 113664 | Pipe union | 2 |
| 82 | 14330260 | Gasket | 4 |
| 83 | 115417 | Bracker for clamp | 1 |
| 84 | 12575411 | Nut. | 1 |
| 85 | 11197771 | Washer | 1 |
